CYLINDER HEAD для лодочных моторов Suzuki Marine DF 25ESK10 (2010)

Москва и регионы России

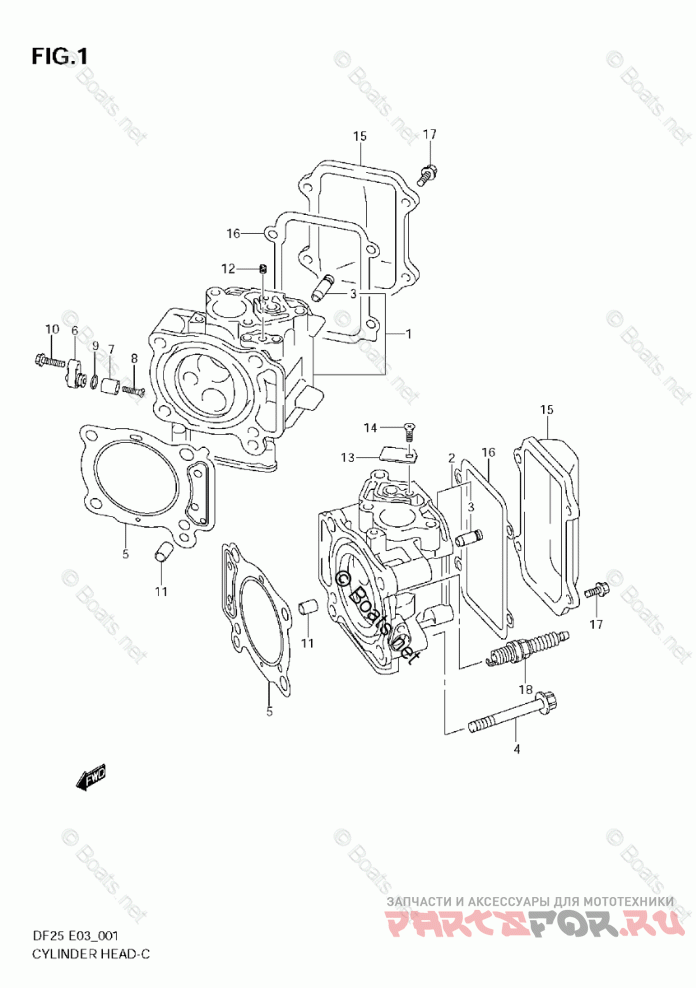

CYLINDER HEAD

Suzuki Marine DF 25ESK10

CYLINDER HEAD

#

oem код

название

цена

1

HEAD, CYLINDER STBD

HEAD, CYLINDER STBD

2

HEAD, CYLINDER PORT

HEAD, CYLINDER PORT

3

11115-93J00-001

GUIDE, VALVE

GUIDE, VALVE

4

BOLT

BOLT

5

GASKET, CYL HEAD

GASKET, CYL HEAD

6

COVER, PROTECTION ANODE

COVER, PROTECTION ANODE

7

ANODE, PROTECTION

ANODE, PROTECTION

8

SCREW, PROTECTION ANODE (5X20

SCREW, PROTECTION ANODE (5X20

9

O RING (ID:9.6,DD:2.4)

O RING (ID:9.6,DD:2.4)

10

BOLT, PROTECTION COVER

BOLT, PROTECTION COVER

11

PIN

PIN

12

JET, OIL *{STBD}*

JET, OIL *{STBD}*

13

VALVE, REED *{PORT}*

VALVE, REED *{PORT}*

14

SCREW *{PORT}*

SCREW *{PORT}*

15

COVER, CYL HEAD

COVER, CYL HEAD

16

GASKET, CYL HEAD COVER

GASKET, CYL HEAD COVER

17

BOLT, CYL HEAD COVER

BOLT, CYL HEAD COVER

18

SPARK PLUG (BKR6E)

SPARK PLUG (BKR6E)
