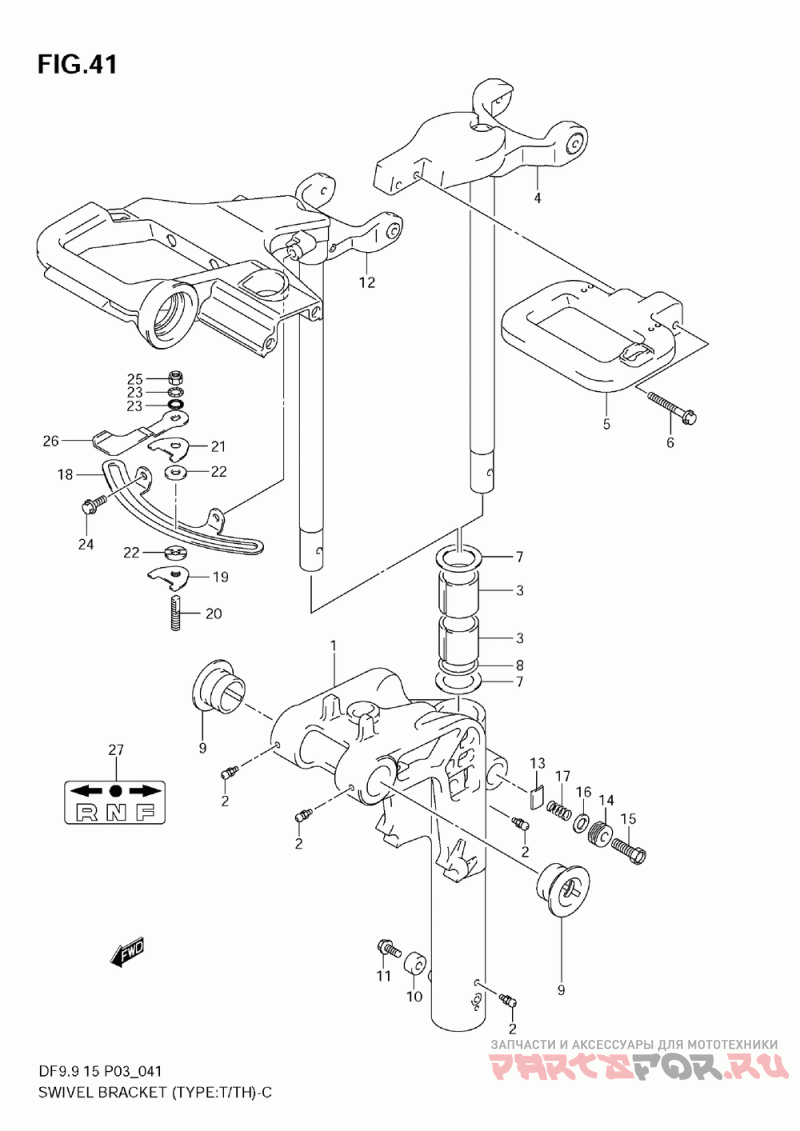

Шарниры кронштейна (type T/TH)

Suzuki Marine DF9.9/DF15

Suzuki Marine
#oem кодцена
1-1
43111-94JB0-0EP
Деталь Bracket, Swivel( (df9.9t)
1-2
43111-94JA0-0EP
Деталь Bracket, Swivel (df9.9th)
2
22511-99011
Ниппель
3
43711-94JA0
Деталь Bush, Steering
4
43750-94JA0-0EP
Деталь Bracket Comp, St (df9.9t)
5
43757-94JA0-0EP
Деталь Bracket, Steerin (df9.9t)
6
09116-08097
Деталь Bolt (8x50) (df9.9t)
7
09160-27009
Деталь Washer (27.5x47x2.0)
8
09280-27004
Деталь O Ring (d:3.1 Id:26.2)
9
43211-94JA0
Деталь Bush, Swivel Bra
10
55321-87J00
Деталь Anode, Protectio
11
09103-06281
Болт (6х14)
12
43750-94JB0-0EP
Деталь Bracket Comp, St (df9.9th)
13
43411-93900
Деталь Plate Adjust
14
43412-93900
Деталь Cover Adjust
15
09100-08232
Болт
16
09160-08082
Деталь Washer (8.5x16x1.2)
17
43419-94J00
Деталь Spring, Steering
18
43415-94J00
Деталь Plate, Steering (df9.9th)
19
43420-94J20
Деталь Plate Comp, Strg (df9.9th)
20
43512-94J00
Деталь Shaft, Strg Adju (df9.9th)
21
43514-94J00
Деталь Plate, Strg Adju (df9.9th)
22
43514-95J00
Деталь Washer, Strg Adj (df9.9th)
23
43516-89J00
Деталь Washer, Steering (df9.9th)
24
29116-93J00
Деталь Bolt (df9.9th)
25
09159-08059
Деталь .nut, Strg Bracket Attachment (df9.9th)
26
43411-94J00
Деталь Adjuster, Steeri (df9.9th)
27
21131-94J00
Деталь Mark, Clutch Shi (df9.9th)
