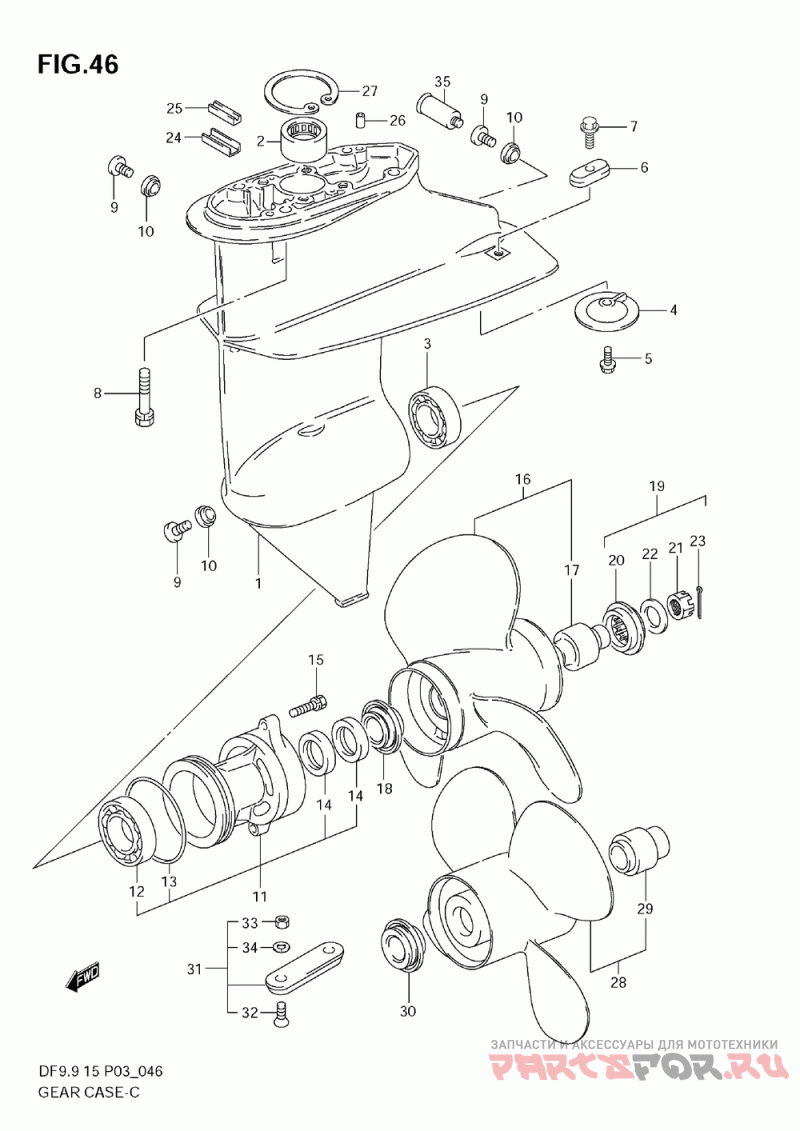

Редуктор для лодочных моторов Suzuki Marine DF9.9/DF15 (2009)

Москва и регионы России

Редуктор

Suzuki Marine DF9.9/DF15

Редуктор

#

oem код

название

цена

1-1

55100-93932-0EP

Case Assy, Gear(

Case Assy, Gear(

1-2

55100-94J00-0EP

Gear Case Assy (model:07~09)

Gear Case Assy (model:07~09)

2

.bearing (15x21x12)

.bearing (15x21x12)

3

.bearing (25x52x15)

.bearing (25x52x15)

4

Zinc Protection

Zinc Protection

5

Болт 6x15

Болт 6x15

6

Zinc, Anode

Zinc, Anode

8

Болт (8x30)

Болт (8x30)

9

Plug (10x7.5)

Plug (10x7.5)

10

Gasket (10x17x1.5)

Gasket (10x17x1.5)

11

56120-93901-0EP

Housing, Prop Sh

Housing, Prop Sh

12

.bearing

.bearing

13

Кольцо

Кольцо

14

.oil Seal (16x30x6)

.oil Seal (16x30x6)

15

Bolt (<-09117-06031)

Bolt (<-09117-06031)

16-1

58100-93703-019

Prop(3x9-1/4x7)

Prop(3x9-1/4x7)

16-2

58100-94J00-019

Prop 3/91/4x9 (<-58100-93723-019)

Prop 3/91/4x9 (<-58100-93723-019)

16-3

58100-93773-019

Prop(3x9-1/4x10

Prop(3x9-1/4x10

16-4

58100-93743-019

Prop(3x9-1/4x11

Prop(3x9-1/4x11

16-5

58100-91D00-019

Propeller C

Propeller C

16-6

58100-93763-019

Prop(3x9-1/4x9)

Prop(3x9-1/4x9)

17

Bushing, Propell

Bushing, Propell

18

Stopper, Prop El

Stopper, Prop El

19

Hdwr9.9/15c/df9 (opt)

Hdwr9.9/15c/df9 (opt)

20

Spacer, Propelle

Spacer, Propelle

21

Гайка

Гайка

22

.washer (12.5x22x2.5)

.washer (12.5x22x2.5)

23

Штифт

Штифт

24

Core Exhaust Se

Core Exhaust Se

25

Rubber, Exhaust (<-55332-94j00)

Rubber, Exhaust (<-55332-94j00)

26

Штифт

Штифт

27

Пружинное стопорное кольцо

Пружинное стопорное кольцо

28

58100-94JA0-019

Prop 9.9t 4x10x (df9.9t/th)

Prop 9.9t 4x10x (df9.9t/th)

29

Bush Comp, Prope (df9.9t/th)

Bush Comp, Prope (df9.9t/th)

30

Stopper, Propell (df9.9t/th)

Stopper, Propell (df9.9t/th)

31

Zinc Assy Prote (opt)

Zinc Assy Prote (opt)

32

.screw (6x20) (opt)

.screw (6x20) (opt)

33

Nut (opt)

Nut (opt)

34

Washer (opt)

Washer (opt)

35

Flush Attachmen (opt)

Flush Attachmen (opt)
