Генератор

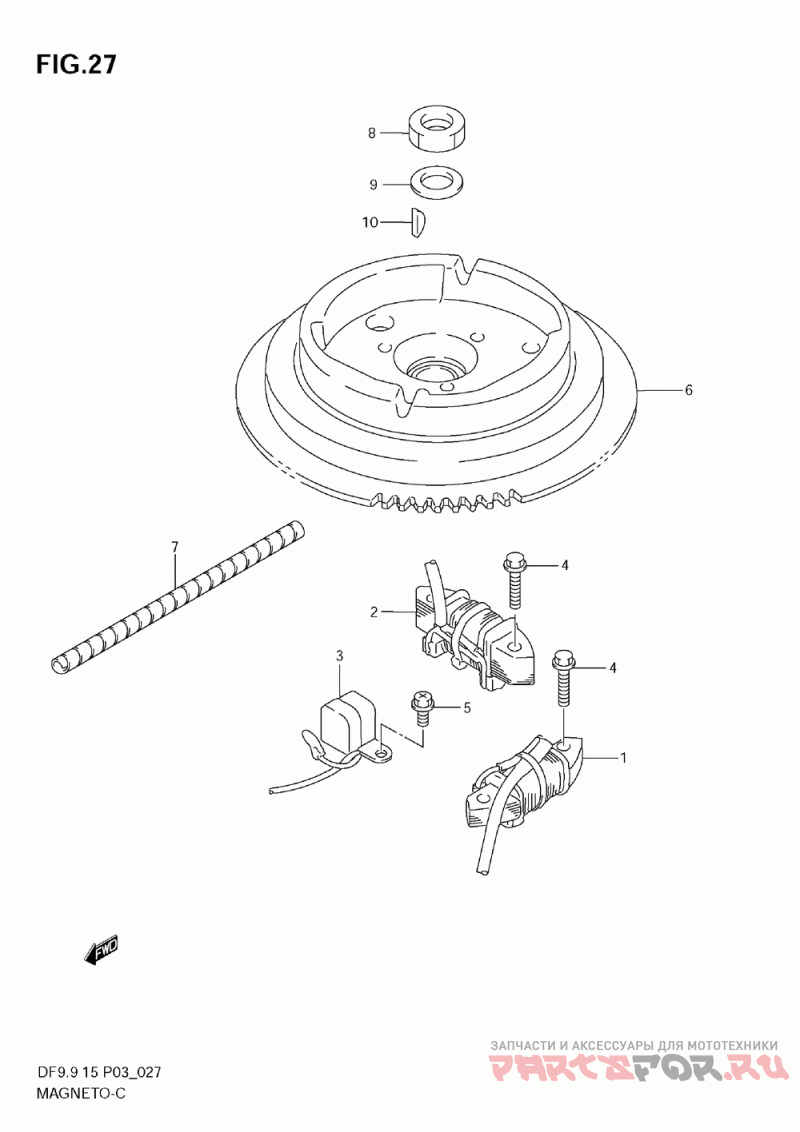

Suzuki Marine DF9.9/DF15
| # | oem код | название | цена |
|---|---|---|---|
1 | 32120-93E20 Coil, Battery Ch | Coil, Battery Ch | |
2 | 32140-93E10 Coil, Magneto Pr | Coil, Magneto Pr | |
3 | 32160-93E20 Coil, Ignition T | Coil, Ignition T | |
4 | 01547-0630B Болт | Болт | |
5 | 02162-05127 Болт | Болт | |
6 | 32102-93E40 Flywheel Assy, M | Flywheel Assy, M | |
7-1 | 33833-91J00 Tube, Sw Lead (l:250->100 Manual Starter ) | Tube, Sw Lead (l:250->100 Manual Starter ) | |
8 | 09140-14008 Гайка | Гайка | |
9 | 09160-15047 Шайба | Шайба | |
10 | 09420-04008 Key ( Refer To Fig.28(e- 5) For Model:05~09 ) | Key ( Refer To Fig.28(e- 5) For Model:05~09 ) |
