Боковая панель для лодочных моторов Suzuki Marine DF9.9/DF15 (2009)

Москва и регионы России

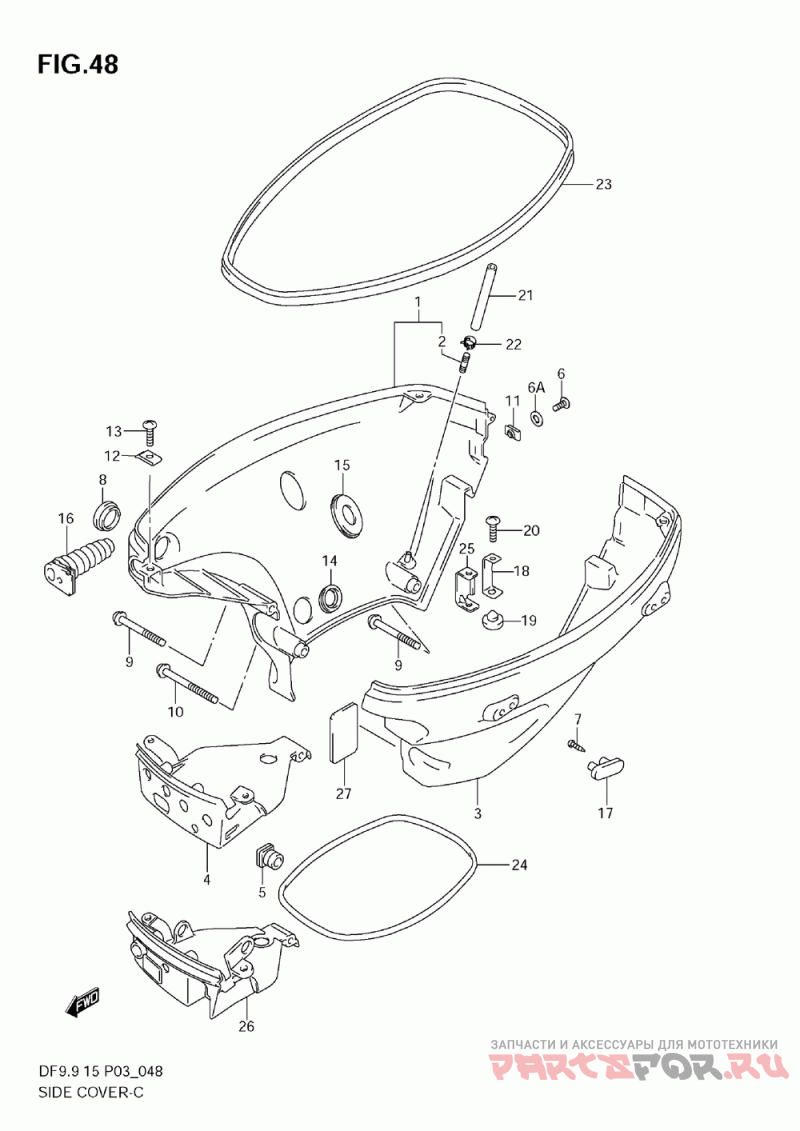

Боковая панель

Suzuki Marine DF9.9/DF15

Боковая панель

#

oem код

название

цена

1

61810-94J00-0EP

Cover Comp, Side

Cover Comp, Side

2

Tube Water Insp

Tube Water Insp

3-1

61821-94J00-0EP

Cover, Side Port

Cover, Side Port

3-2

61821-94JA0-0EP

Cover, Side Port (df9.9t/th)

Cover, Side Port (df9.9t/th)

4

61831-94J20-0EP

Panel, Instrumen (model:04)

Panel, Instrumen (model:04)

5

Grommet, Switch (model:04)

Grommet, Switch (model:04)

6

Винт (6x16)

Винт (6x16)

6A

.washer, Clutch Lever (model:06~09)

.washer, Clutch Lever (model:06~09)

7

Screw, Protector

Screw, Protector

8

Plug, Clutch Hole

Plug, Clutch Hole

9

Bolt (6x55)

Bolt (6x55)

10

Bolt (6x75)

Bolt (6x75)

11

Гайка

Гайка

12

Гайка

Гайка

13

Винт

Винт

14

Seal, Lower Cove (<-61115-94j00)

Seal, Lower Cove (<-61115-94j00)

15

Plug, Side Cover (<-61124-94j00)

Plug, Side Cover (<-61124-94j00)

16-1

Grommet, Side Co

Grommet, Side Co

16-2

Grommet, Side Co (model:05~09)

Grommet, Side Co (model:05~09)

16-3

Grommet, Side Co (df9.9r Model:05~09 )

Grommet, Side Co (df9.9r Model:05~09 )

16-4

Grommet, Side Co (df9.9t)

Grommet, Side Co (df9.9t)

16-5

Grommet, Side Co (df9.9th)

Grommet, Side Co (df9.9th)

17

Protector, Side

Protector, Side

18

Holder, Side Cov (model:04)

Holder, Side Cov (model:04)

19-1

Cushion, Side Cover

Cushion, Side Cover

19-2

Cushion, Lower C (model:05~09)

Cushion, Lower C (model:05~09)

21

15211-91J00-180

Hose, Water Insp

Hose, Water Insp

22

Clip (<-09401-08411)

Clip (<-09401-08411)

23

Rubber, Engine L

Rubber, Engine L

24

Seal, Side Cover

Seal, Side Cover

25

Holder, Side Cov (model:05~09)

Holder, Side Cov (model:05~09)

26

61831-94J30-0EP

Panel, Instrumen (model:05~09)

Panel, Instrumen (model:05~09)

27

Protector, Side (df9.9:881322~ Df15:881921~ )

Protector, Side (df9.9:881322~ Df15:881921~ )
