Transmission (model:98~00) для лодочных моторов Suzuki Marine DF60/DF70 (2009)

Москва и регионы России

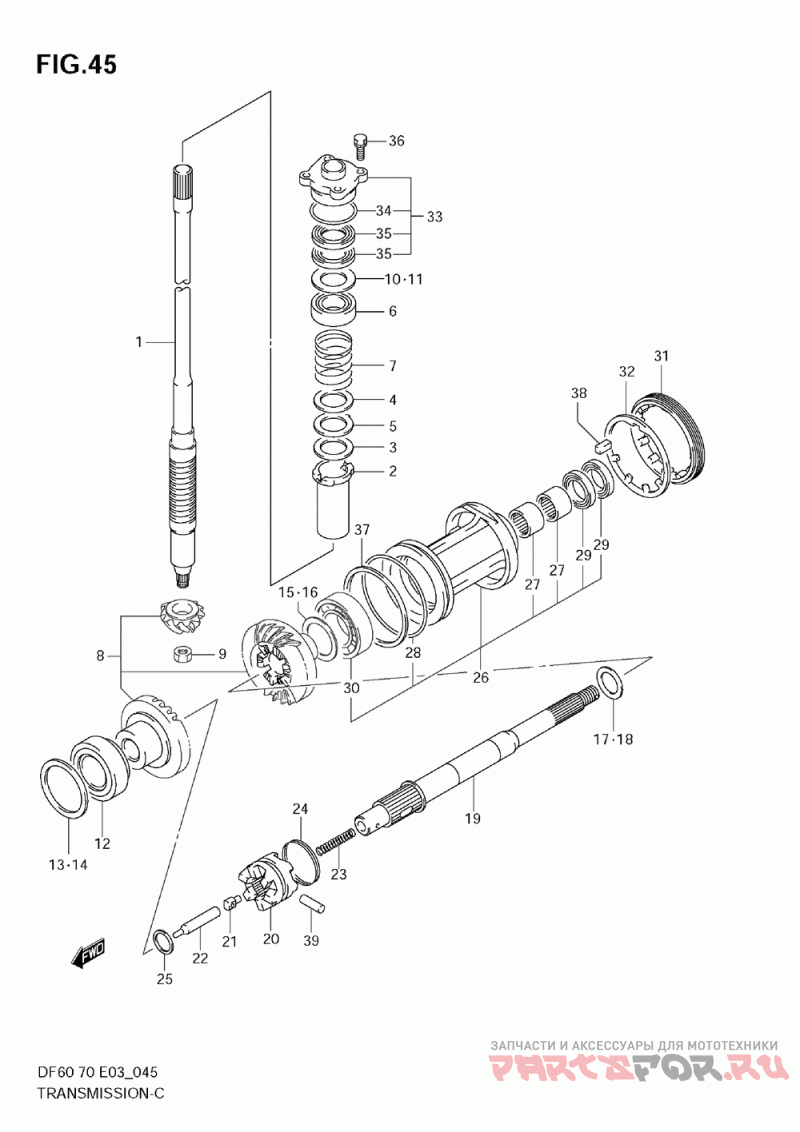

Transmission (model:98~00)

Suzuki Marine DF60/DF70

Transmission (model:98~00)

#

oem код

название

цена

1-1

Shaft Assy, Driv (type:l)

Shaft Assy, Driv (type:l)

1-2

Shaft, Drive (type:l Model:00 )

Shaft, Drive (type:l Model:00 )

1-3

Shaft Drive (type:ul Not For Us Market )

Shaft Drive (type:ul Not For Us Market )

2

Collar, Drive S

Collar, Drive S

3

Protector, Dr Sf

Protector, Dr Sf

4

Washer (31x39x2.0)

Washer (31x39x2.0)

5

Washer (33x40x2.0)

Washer (33x40x2.0)

6

Подшипник

Подшипник

7

Пружина

Пружина

8-1

Pinion/gear/dri (->57300-99830 (57300-99810) )

Pinion/gear/dri (->57300-99830 (57300-99810) )

8-2

Pinion / Gear S (df60t:861256~ Model:00 )

Pinion / Gear S (df60t:861256~ Model:00 )

9-1

Гайка

Гайка

9-2

Nut (df60t:861256~ Model:00 )

Nut (df60t:861256~ Model:00 )

10

Shim Set, Drive

Shim Set, Drive

11-1

.shim (t:0.60)

.shim (t:0.60)

11-2

.shim (t:0.65)

.shim (t:0.65)

11-3

.shim (t:0.70)

.shim (t:0.70)

11-4

.shim (t:0.75)

.shim (t:0.75)

11-5

.shim (t:0.80)

.shim (t:0.80)

11-6

.shim (t:0.85)

.shim (t:0.85)

11-7

.shim (t:0.90)

.shim (t:0.90)

11-8

.shim (t:0.95)

.shim (t:0.95)

11-9

.shim (t:1.00)

.shim (t:1.00)

11-10

.shim (t:1.05)

.shim (t:1.05)

11-11

.shim (t:1.10)

.shim (t:1.10)

11-12

.shim (t:1.15)

.shim (t:1.15)

12

Bearing ( Refer To Fig.46(g- 5) For Model:01~09 )

Bearing ( Refer To Fig.46(g- 5) For Model:01~09 )

13

Shim Set, Forwar

Shim Set, Forwar

14-1

Shim, 64x75x0.55

Shim, 64x75x0.55

14-2

Shim, 64x75x0.6

Shim, 64x75x0.6

14-3

Shim, 64x75x0.65

Shim, 64x75x0.65

14-4

Shim, 64x75x0.7

Shim, 64x75x0.7

14-5

Shim, 64x75x0.75

Shim, 64x75x0.75

14-6

Shim, 64x75x0.8

Shim, 64x75x0.8

14-7

Shim, 64x75x0.85

Shim, 64x75x0.85

14-8

Shim, 64x75x0.9

Shim, 64x75x0.9

14-9

Shim, 64x75x0.9

Shim, 64x75x0.9

14-10

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

15

Shim Set Revers

Shim Set Revers

16-3

Shim(1.2)

Shim(1.2)

16-4

Shim(1.3)

Shim(1.3)

16-5

Shim(1.4)

Shim(1.4)

16-6

.shim (t:1.5)

.shim (t:1.5)

16-7

Shim, 40x52x1.6

Shim, 40x52x1.6

16-8

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

16-9

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

16-10

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

17

Thrust Washer S

Thrust Washer S

18-1

.shim (t:1.5)

.shim (t:1.5)

18-2

.washer (t:1.6)

.washer (t:1.6)

18-3

.washer (t:1.7)

.washer (t:1.7)

18-4

.washer (t:1.8)

.washer (t:1.8)

18-5

.washer (t:1.9)

.washer (t:1.9)

18-6

.washer (t:2.0)

.washer (t:2.0)

18-7

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

18-8

.washer (t:2.2)

.washer (t:2.2)

18-9

.washer (t:2.3)

.washer (t:2.3)

18-10

.washer (t:2.4)

.washer (t:2.4)

18-11

.washer (t:2.5)

.washer (t:2.5)

18-12

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

18-13

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

18-14

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

18-15

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

19

Вал гребного винта

Вал гребного винта

20

Муфта сцепления

Муфта сцепления

21

Штифт

Штифт

22

Толкатель

Толкатель

23

Пружина

Пружина

24

Пружина

Пружина

25

Washer (24x33x2.5)

Washer (24x33x2.5)

26

Housing Comp Pr

Housing Comp Pr

27

.bearing

.bearing

28

O Ring D:3.5 Id

O Ring D:3.5 Id

29

Seal, Oil 28x42

Seal, Oil 28x42

30

.bearing

.bearing

31

Stopper, Prop Sh

Stopper, Prop Sh

32

Washer, Prop Sha

Washer, Prop Sha

33

Hsg Comp, Drive

Hsg Comp, Drive

34

.o Ring (d:3.5, Id:45.7)

.o Ring (d:3.5, Id:45.7)

35

.oil Seal

.oil Seal

36

Bolt (8x25)

Bolt (8x25)

37

Spacer (86x92x1.5)

Spacer (86x92x1.5)

38

Шпонка

Шпонка

39

Штифт

Штифт
