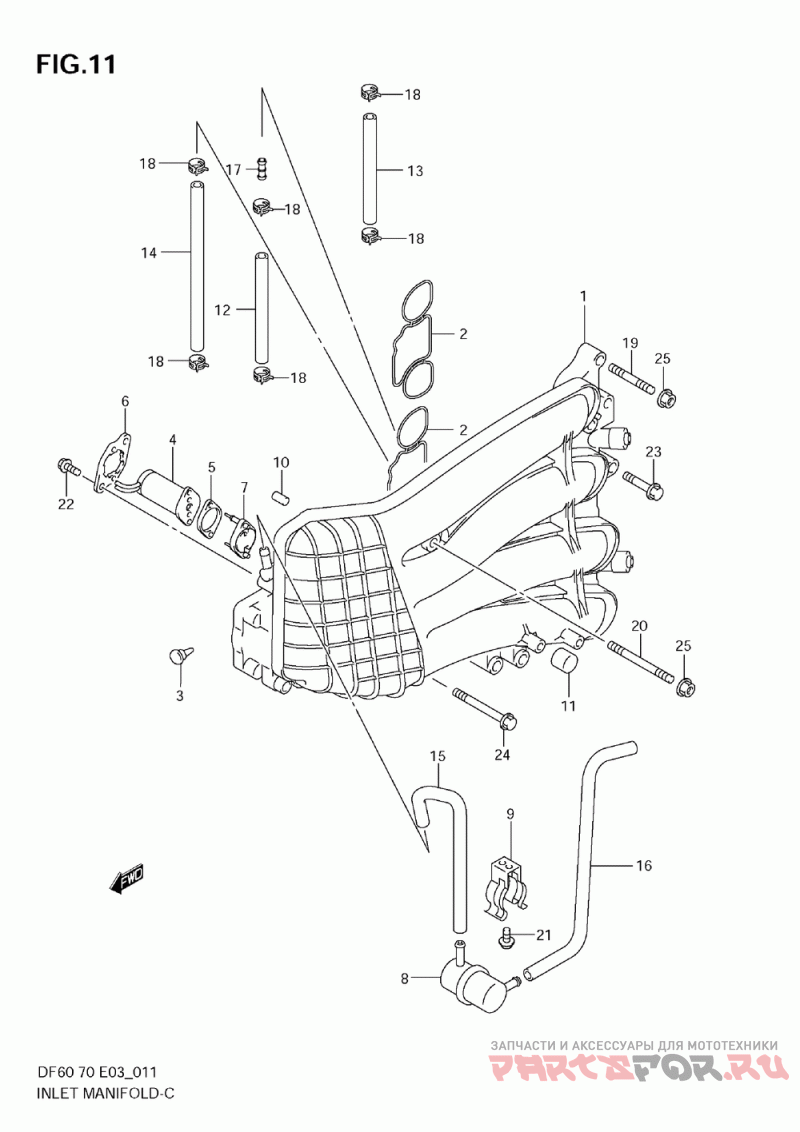

Inlet manifold (df60,70 model:02~09)

Suzuki Marine DF60/DF70

Inlet manifold (df60,70 model:02~09)

#

oem код

название

цена

1

Manifold Assy, I

Manifold Assy, I

2

Gasket, Intake M

Gasket, Intake M

3

Screw Set, Air B

Screw Set, Air B

4

Solenoid

Solenoid

5

Seat, Rubber Isc

Seat, Rubber Isc

6

Flange, Iac

Flange, Iac

7

Holder, Iac

Holder, Iac

8

Silencer, Isc Va

Silencer, Isc Va

9

Clamp, Isc Silen (<-18146-84380)

Clamp, Isc Silen (<-18146-84380)

10

Штифт

Штифт

11

Cushion, Intake Manifold

Cushion, Intake Manifold

12

09352-50903-600

.hose (l:600->200)

.hose (l:600->200)

15

09352-70121-600

Hose (l:600->440)

Hose (l:600->440)

16

09352-70121-00B

Hose (isc To Sil) (l:2000->620)

Hose (isc To Sil) (l:2000->620)

17

Union, 2way

Union, 2way

18

Clip (<-09401-08411)

Clip (<-09401-08411)

19

Шпилька

Шпилька

20

Шпилька

Шпилька

21

Болт

Болт

22

.bolt, Remocon Cable Holder

.bolt, Remocon Cable Holder

23

Болт

Болт

24

Болт

Болт

25

..nut

..nut
