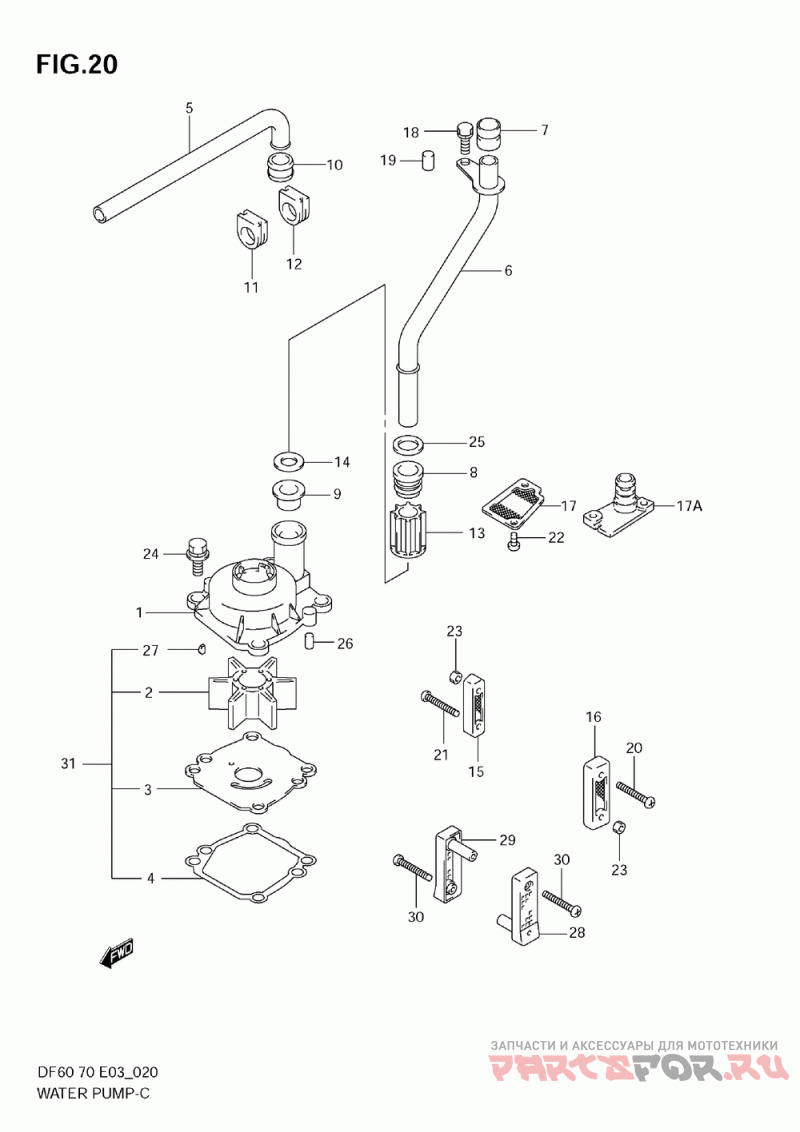

Водяной насос для лодочных моторов Suzuki Marine DF60/DF70 (2009)

Водяной насос

Suzuki Marine DF60/DF70

oem код

название

цена

17400-99820

Water Pump Case (->17400-99820 29116-93j10 Bolt(x4) )

Impeller, Watwe

Пластина насоса

Прокладка

Tube, Water Sub (~model:00)

6-1

17560-99E01

Трубка водная (L)

6-2

17560-99E10

Tube, Water(ul) (not For Us Market)

Bush, Water Tube

Bush, Water Tube

Bush, Water Pump

Bush, Sub Water (~model:00)

17566-87D01

Grommet (~model:00)

17567-87D00

Grommet, Sub Wat (df60:~971961 Df70:~973163 )

17611-87D00

Spacer Water Tu (not For Us Market)

17612-87D00

Spacer Water Tu

17631-87E00

Filter, Water Po (~model:00)

17632-87E00

Filter, Water St (~model:00)

17635-87E00

Filter, Water Su

17A

17635-90J00

Plug, Sub Water (df60:371535~ Df70:373238~ )

09117-06030

Bolt (6x16) (df60:~971961 Df70:~973163 )

09202-07001

Pin (df60:971962~ Refer To Fig.20a(d- 4) For Model:08~09 )

09125-04018-XC0

Screw, 4x35 (~model:00)

09125-04023

Screw (4x30) (~model:00)

Винт (5х12)

Nut (~model:00)

Bolt (8x25)

Шайба

Штифт

Key, Water Pump

Filter, Water P (model:01~07)

17632-90J00

Filter, Water S (model:01~07)

30-1

03112-04303

Screw (model:01~02)

30-2

09132-04034

Screw (4x18) (model:03~07)

17400-87E04

Kit, Water Pump (opt)
