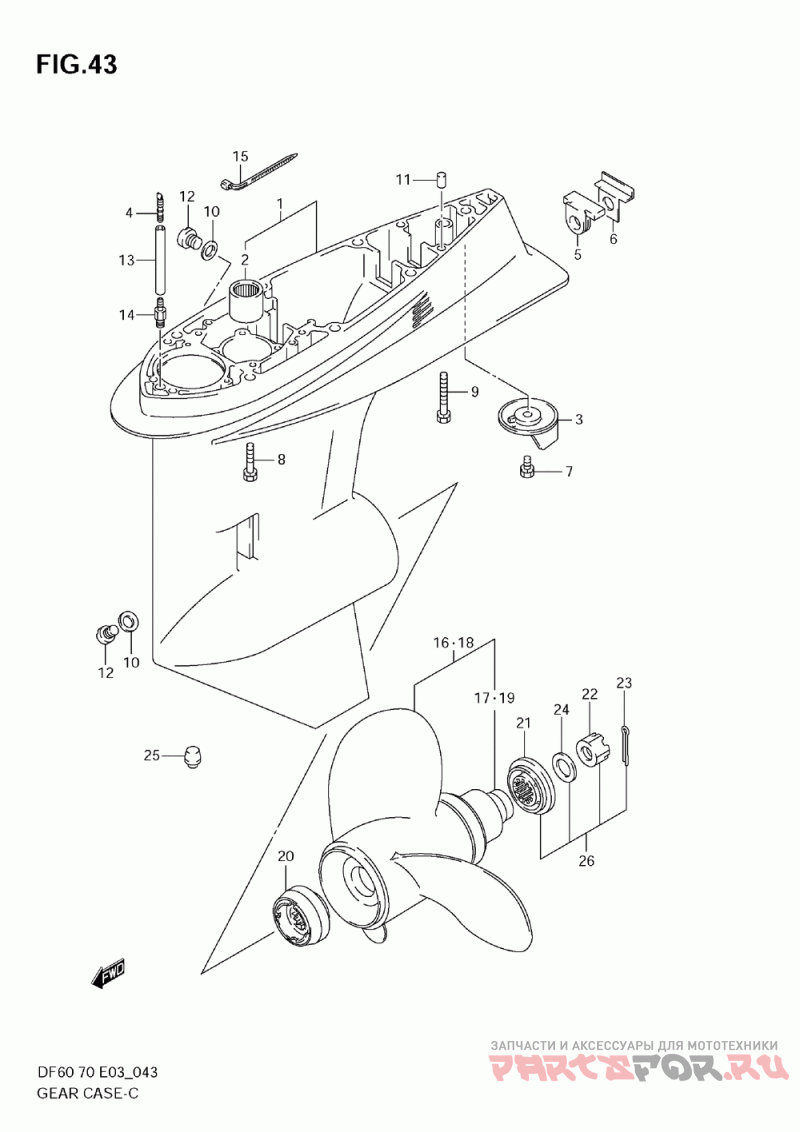

Редуктор model:98~00)

Suzuki Marine DF60/DF70

Suzuki Marine
#oem кодцена
1
55110-99E02-0EP
Case, Gear
2
09263-26023
.bearing, Pinion
3
55125-87E01
Tab, Trim
4
55127-87D00
Union, Speedomet
5
55332-87D01
Rubber, Exhaust
6
55333-87D02
Plate, Exhaust S
7
09116-08137
Bolt, 8x22
8
09116-10150
Bolt, 10x55
9
09117-10039
Bolt (10x80)
10
09168-10022
Gasket (10x17x1.5)
11
09202-08006
Штифт
12
09248-10008
Plug (10x7.5)
13-1
09355-40805-600
Hose (type:x Not For Us Market )
14
09362-09008
Ниппель
15
09407-14407
Стяжка L-140
16-1
58100-95540-019
(not For Us Market)
16-2
58100-95500-019
(not For Us Market)
16-3
58100-95511-019
(not For Us Market)
16-4
58100-95550-019
(not For Us Market)
16-5
58100-95521-019
(not For Us Market)
17
58120-95500
Bushing, Propell (w/ref.no.16)
18-1
58100-94500-019
Prop(3x13.5x15) (v1500)
18-2
58100-94512-019
Prop(3x13-1/4x1 (v1700)
18-3
58100-94522-019
Prop(3x13x19) (v1900)
18-4
58100-94532-019
Prop(3x13x21) (v2100)
18-5
58100-94554
Поршень комплект (увел1,0)
19
58120-94520
Bushing, Propell (w/ref.no.18)
20-1
57632-87E00
Stopper, Prop Bu (type:v)
20-2
57632-87E10
Stopper, Prop Bu (type:u Refer To Fig.44(f-12) For Model:01~09 )
21-1
57633-94500
Spacer, Prop Nu (type:v)
21-2
57633-95501
Spacer Prop Nut (type:u)
22
09141-18005
Гайка
23
09204-03003
Cotter Pin (l:25)
24
09160-18028
Washer (18.5x31x1.0)
25
55116-87E00
Plug, Gear Case (opt)
26-1
57630-94500
Prphrdw75-140 V (opt, Type:v 22, 23, 24 )
26-2
57630-95500
Prphdwr 75-140u (opt, Type:u 22, 23, 24 )
27
25700-87E00
L.u.seal Kit 90 (opt Not Shown)
