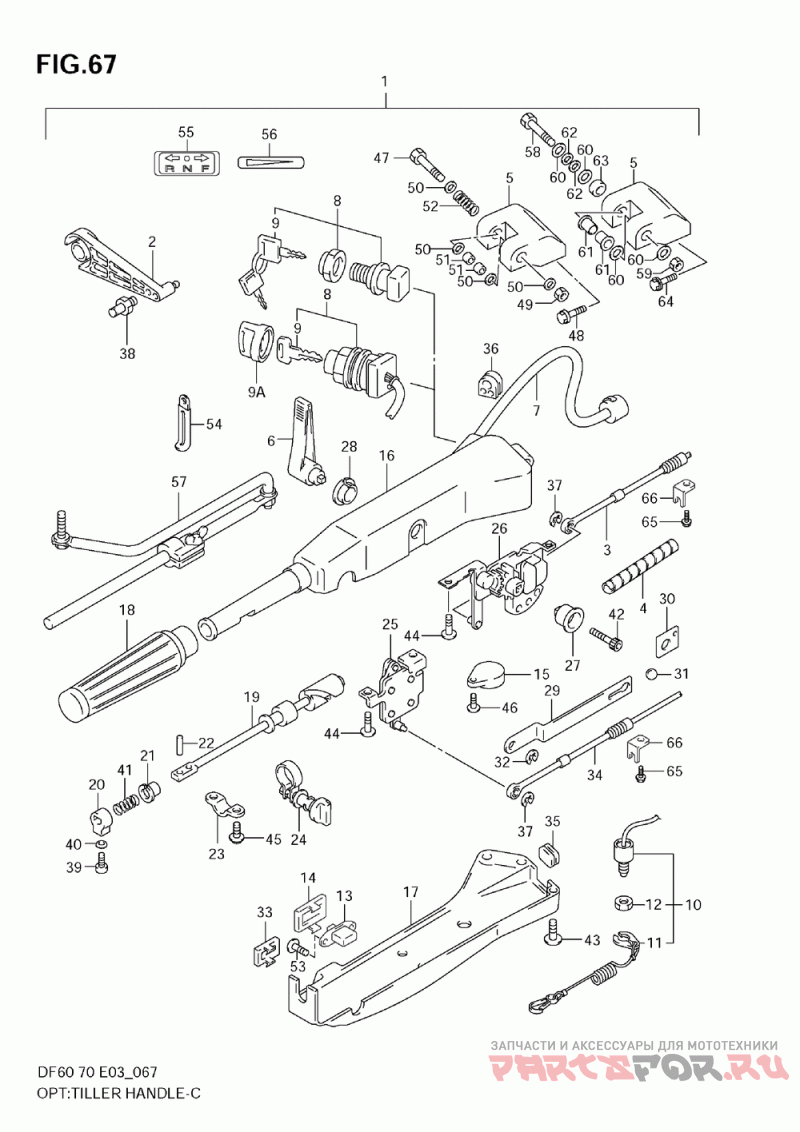

Опции - рукоятка румпеля для лодочных моторов Suzuki Marine DF60/DF70 (2009)

Москва и регионы России

Опции - рукоятка румпеля

Suzuki Marine DF60/DF70

Опции - рукоятка румпеля

#

oem код

название

цена

1-1

63002-99E06-0EP

Df60/70 Tilkt/t

Df60/70 Tilkt/t

1-2

63002-99E24-0EP

Kit, Tiller Hand (model:05~)

Kit, Tiller Hand (model:05~)

2

Lever, Interlink

Lever, Interlink

3

Трос , реверса

Трос , реверса

4

Tube, Sw Lead (l:250->100 <-33833-95510 )

Tube, Sw Lead (l:250->100 <-33833-95510 )

5-1

43761-87J01-0EP

Bracket, Tiller ( (black) )

Bracket, Tiller ( (black) )

5-2

43761-87J11-0EP

Bracket, Tiller (for 63002-99e23-0ep (black) )

Bracket, Tiller (for 63002-99e23-0ep (black) )

6

21111-87J10-0EP

Lever, Shift(bla

Lever, Shift(bla

7-1

Wire, Handle

Wire, Handle

7-2

Wire Assy, Handl (model:05~09)

Wire Assy, Handl (model:05~09)

8-1

Switch Assy, Ign

Switch Assy, Ign

9-1

Key (11)

Key (11)

9-2

Key (12)

Key (12)

9-3

Key (13)

Key (13)

9-4

Key (14)

Key (14)

9-5

Key (15)

Key (15)

9-6

Key (16)

Key (16)

9-7

Key (17)

Key (17)

9-8

Key (18)

Key (18)

9-9

Key (19)

Key (19)

9-10

Key (20)

Key (20)

9-11

Key (931) (model:04~09)

Key (931) (model:04~09)

9-12

Key (932) (model:04~09)

Key (932) (model:04~09)

9-13

Key (933) (model:04~09)

Key (933) (model:04~09)

9-14

Key (934) (model:04~09)

Key (934) (model:04~09)

9-15

Key (935) (model:04~09)

Key (935) (model:04~09)

9-16

Key (936) (model:04~09)

Key (936) (model:04~09)

9-17

Key (937) (model:04~09)

Key (937) (model:04~09)

9-18

Key (938) (model:04~09)

Key (938) (model:04~09)

9-19

Key (939) (model:04~09)

Key (939) (model:04~09)

9-20

Key (940) (model:04~09)

Key (940) (model:04~09)

9-21

Key (941) (model:04~09)

Key (941) (model:04~09)

9-22

Key (942) (model:04~09)

Key (942) (model:04~09)

9A

Cap, Key (model:04~09)

Cap, Key (model:04~09)

10

Switch Assy, Eme

Switch Assy, Eme

11

Plate Assy, Emer

Plate Assy, Emer

12

Гайка

Гайка

13

Switch, Trim

Switch, Trim

14

Cap, Trim Sw

Cap, Trim Sw

15

Buzzer Set, Warn

Buzzer Set, Warn

16-1

63111-87J10-0EP

Housing, Tiller (->63111-87j10-0ep 63612-87j00 X2 )

Housing, Tiller (->63111-87j10-0ep 63612-87j00 X2 )

17

Cover, Under

Cover, Under

18

Grip Comp, Handl

Grip Comp, Handl

19

Rod, Handle

Rod, Handle

20

Stopper, Handle

Stopper, Handle

21

Втулка

Втулка

22

Handle Rod Pin

Handle Rod Pin

23

Plate, Handle

Plate, Handle

24

Adjuster, Handle

Adjuster, Handle

25

Arm Assy, Thrott

Arm Assy, Thrott

26

Gear Assy, Shift

Gear Assy, Shift

27

Spacer, Clutch L

Spacer, Clutch L

28

Bush, Clutch Lev

Bush, Clutch Lev

29

Пластина

Пластина

30

Plate, Ball Guid

Plate, Ball Guid

31

Шарик

Шарик

32

E Ring

E Ring

33

Cover, Trim Sw

Cover, Trim Sw

34

Трос газа

Трос газа

35

Frommet, Throt

Frommet, Throt

36

Grommet, Wire Ha

Grommet, Wire Ha

37

Е-Кольцо

Е-Кольцо

38

Pin, Connector

Pin, Connector

39

.screw, Handle Grip (6x23)

.screw, Handle Grip (6x23)

40

.washer, Handle Grip Screw

.washer, Handle Grip Screw

41

Spring, Handle L

Spring, Handle L

42

.bolt (8x50)

.bolt (8x50)

43

.screw (5x14)

.screw (5x14)

44

.bolt (6x12)

.bolt (6x12)

45

.screw (5x12)

.screw (5x12)

46

Винт

Винт

47

Bolt (for 63002-99e06-0ep 63002-99e21-0ep )

Bolt (for 63002-99e06-0ep 63002-99e21-0ep )

48-1

Bolt (10x45)

Bolt (10x45)

49

Nut (for 63002-99e06-0ep 63002-99e21-0ep )

Nut (for 63002-99e06-0ep 63002-99e21-0ep )

50

.washer (10.5x22x2.5) (for 63002-99e06-0ep 63002-99e21-0ep )

.washer (10.5x22x2.5) (for 63002-99e06-0ep 63002-99e21-0ep )

51

Bush Handle (for 63002-99e06-0ep 63002-99e21-0ep )

Bush Handle (for 63002-99e06-0ep 63002-99e21-0ep )

52

Spring (for 63002-99e06-0ep 63002-99e21-0ep )

Spring (for 63002-99e06-0ep 63002-99e21-0ep )

53

.screw (2x6)

.screw (2x6)

54

Clamp (<-09404-10205)

Clamp (<-09404-10205)

55

Mark, Clutch Shi

Mark, Clutch Shi

56

Mark, Handle Gri

Mark, Handle Gri

57

Adjuster, Steer

Adjuster, Steer

60

.washer (10.5x22x1.5) (for 63002-99e23-0ep)

.washer (10.5x22x1.5) (for 63002-99e23-0ep)

61

.bush (for 63002-99e23-0ep)

.bush (for 63002-99e23-0ep)

62

Washer (for 63002-99e23-0ep)

Washer (for 63002-99e23-0ep)

63

Spacer, Tiller H (for 63002-99e23-0ep)

Spacer, Tiller H (for 63002-99e23-0ep)

65

Bolt, Clamp Brac (for 63002-99e23-0ep)

Bolt, Clamp Brac (for 63002-99e23-0ep)

66

Bracket, Clamp (for 63002-99e23-0ep)

Bracket, Clamp (for 63002-99e23-0ep)
