Engine Cover (model:98%02) для лодочных моторов Suzuki Marine DF60 (2009)

Москва и регионы России

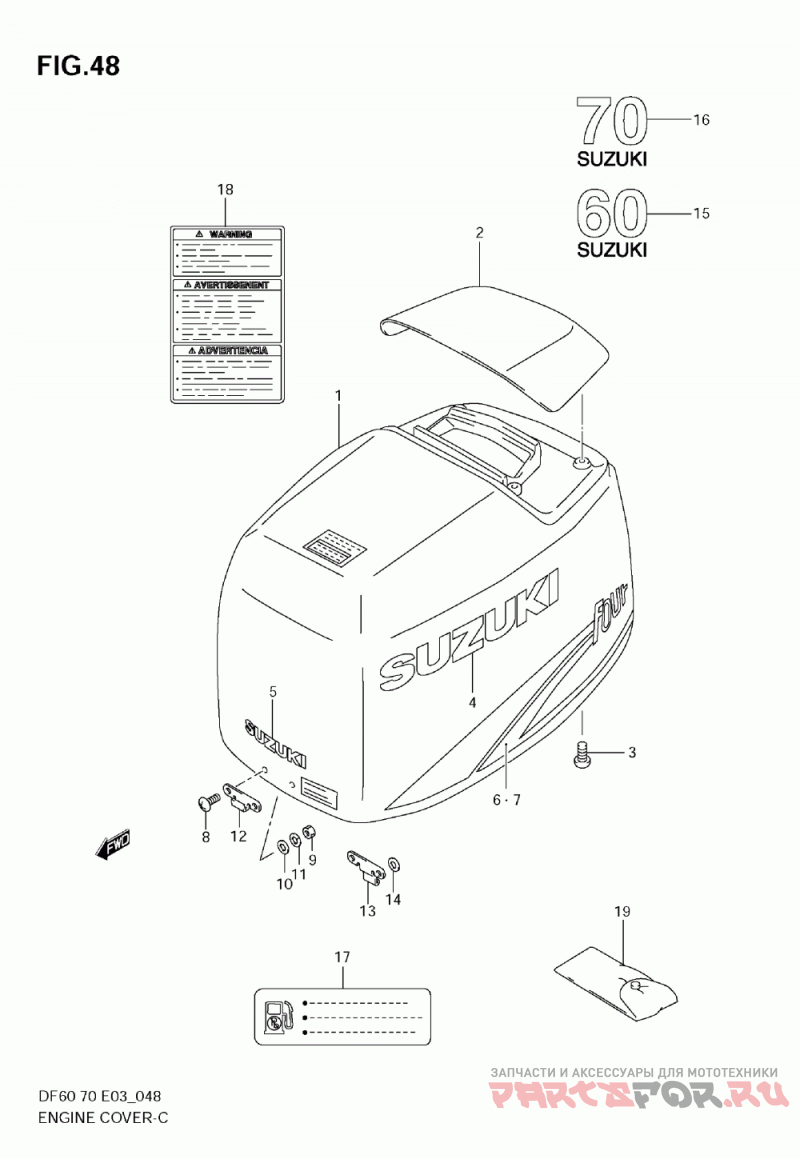

Engine Cover (model:98%02)

Suzuki Marine DF60

Engine Cover (model:98%02)

#

oem код

название

цена

1

61400-99840-0EP

Шайба

Шайба

2

61431-99E01-0EP

HANDLE, TILT UP (BLACK)

HANDLE, TILT UP (BLACK)

2

61431-99E10-0EP

HANDLE, TILT UP (BLACK)

HANDLE, TILT UP (BLACK)

3

Болт (6X20)

Болт (6X20)

4

68111-34301-Y2D

MARK, EMBLEM SIDE (SILVER)

MARK, EMBLEM SIDE (SILVER)

5

68271-43400-Y2D

MARK, EMBLEM FRONT (SILVER)

MARK, EMBLEM FRONT (SILVER)

6

STRIPE, ENGINE COVER STBD

STRIPE, ENGINE COVER STBD

7

STRIPE, ENGINE COVER PORT

STRIPE, ENGINE COVER PORT

8

Винт(6X20)

Винт(6X20)

9

Гайка

Гайка

10

Шайба (6.5X20X1.5)

Шайба (6.5X20X1.5)

11

Шайба (6.1X12.2X1.5)

Шайба (6.1X12.2X1.5)

12

HOOK, FASTENER

HOOK, FASTENER

13

BRACKET, ENGINE COVER

BRACKET, ENGINE COVER

14

Шайба

Шайба

15

MARK, EMBLEM REAR

MARK, EMBLEM REAR

16

MARK, EMBLEM REAR

MARK, EMBLEM REAR

17

LABEL, FUEL LIMITATION

LABEL, FUEL LIMITATION

18

LABEL, ENGINE COVER

LABEL, ENGINE COVER

19

Комплект инструмента

Комплект инструмента
