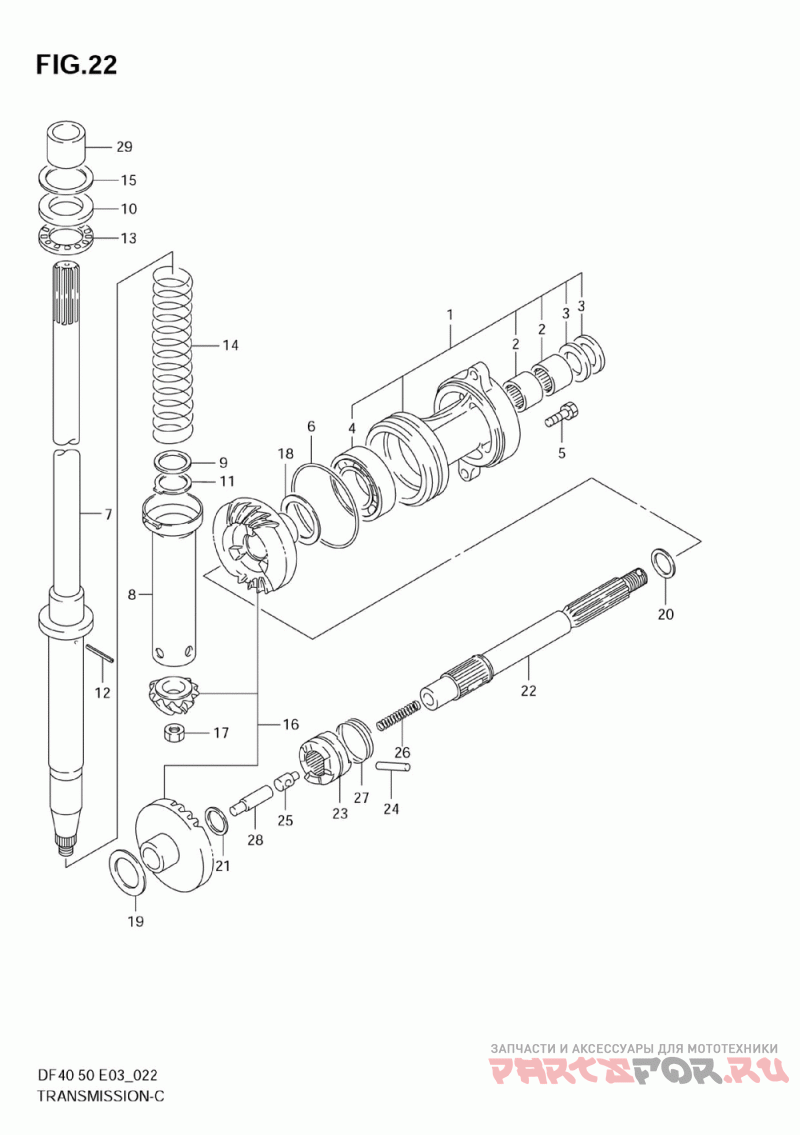

Transmission (see note)
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1 | 56120-94321-0EP Housing, Propell ( (black) ) | Housing, Propell ( (black) ) | |
2-1 | 09263-22020 .bearing (df40:422328~ Df50:423475~ ) | .bearing (df40:422328~ Df50:423475~ ) | |
3 | 09289-22007 Oil Seal, Prop S ( ) | Oil Seal, Prop S ( ) | |
4 | 09262-35070 .bearing ( ) | .bearing ( ) | |
5 | 09117-08047 Bolt (8x30) ( ) | Bolt (8x30) ( ) | |
6 | 09280-75001 O Ring (d:3.8, Id:75) ( ) | O Ring (d:3.8, Id:75) ( ) | |
7-1 | 57110-87J10 Shaft Assy, Driv (type:s ) | Shaft Assy, Driv (type:s ) | |
7-2 | 57110-87J00 Shaft Assy, Driv (type:l ) | Shaft Assy, Driv (type:l ) | |
8 | 57133-94400 Housing Spring ( ) | Housing Spring ( ) | |
9 | 09160-24020 Washer (24x33x2.5) ( ) | Washer (24x33x2.5) ( ) | |
10 | 09160-26015 Washer (26.2x42x4.0) ( ) | Washer (26.2x42x4.0) ( ) | |
11 | 09166-25006 Washer ( ) | Washer ( ) | |
12 | 09205-03019 Pin ( ) | Pin ( ) | |
13 | 09263-25062 Bearing ( ) | Bearing ( ) | |
14 | 09440-30005 Spring ( ) | Spring ( ) | |
15-1 | 09181-30186 Shim (t:0.5) (drive Shaft Adjust ) | Shim (t:0.5) (drive Shaft Adjust ) | |
15-2 | 09181-30187 Shim (t:0.6) (drive Shaft Adjust ) | Shim (t:0.6) (drive Shaft Adjust ) | |
15-3 | 09181-30188 Shim (t:0.7) (drive Shaft Adjust ) | Shim (t:0.7) (drive Shaft Adjust ) | |
15-4 | 09181-30190 Shim (t:0.8) (drive Shaft Adjust ) | Shim (t:0.8) (drive Shaft Adjust ) | |
15-5 | 09181-30192 Shim (t:0.9) (forward Backup Df50:510001~510465 ) | Shim (t:0.9) (forward Backup Df50:510001~510465 ) | |
16 | 57300-87851 Pinion / Gear S ( ) | Pinion / Gear S ( ) | |
17 | 09140-12034 Nut ( ) | Nut ( ) | |
18-1 | 08221-35455 Shim (t:0.5) (reverse Backup ) | Shim (t:0.5) (reverse Backup ) | |
18-2 | 09181-35131 Shim (t:0.6) (reverse Backup ) | Shim (t:0.6) (reverse Backup ) | |
18-3 | 09181-35132 Shim (t:0.7) (reverse Backup ) | Shim (t:0.7) (reverse Backup ) | |
18-4 | 08221-35456 Shim (t:0.8) (reverse Backup ) | Shim (t:0.8) (reverse Backup ) | |
18-5 | 09181-35136 Shim(0.9) (reverse Backup ) | Shim(0.9) (reverse Backup ) | |
18-6 | 08211-35451 Shim (t:1.0) (reverse Backup Df50:510001~510465 ) | Shim (t:1.0) (reverse Backup Df50:510001~510465 ) | |
20-1 | 09160-22018 Washer (t:1.8) (prop Sft Thrust ) | Washer (t:1.8) (prop Sft Thrust ) | |
20-2 | 09160-22019 Washer (t:1.9) (prop Sft Thrust ) | Washer (t:1.9) (prop Sft Thrust ) | |
20-3 | 09160-22020 Washer (t:2.0) (prop Sft Thrust ) | Washer (t:2.0) (prop Sft Thrust ) | |
20-4 | 09160-22021 Washer (t:2.1) (prop Sft Thrust ) | Washer (t:2.1) (prop Sft Thrust ) | |
20-5 | 09160-22022 Washer (t:2.2) (prop Sft Thrust ) | Washer (t:2.2) (prop Sft Thrust ) | |
20-6 | 09160-22023 Washer (t:2.3) (prop Sft Thrust ) | Washer (t:2.3) (prop Sft Thrust ) | |
21 | 08211-20263 Washer (t:2.0) ( ) | Washer (t:2.0) ( ) | |
22 | 57610-94401 Shaft Assy, Prop ( ) | Shaft Assy, Prop ( ) | |
23 | 57621-87J02 Shifter, Clutch ( ) | Shifter, Clutch ( ) | |
24 | 09202-05022 Pin, Cl Dog Shif ( ) | Pin, Cl Dog Shif ( ) | |
25 | 09209-09004 Pin, Cl Dog Shif ( ) | Pin, Cl Dog Shif ( ) | |
26-1 | 09440-08034 Spring ( ) | Spring ( ) | |
26-2 | 09440-08043 Spring (df40:780223~ Df50:780555~ ) | Spring (df40:780223~ Df50:780555~ ) | |
27 | 09440-40002 Spring, Dog ( ) | Spring, Dog ( ) | |
28 | 57631-95302 Rod, Push ( Df50:510001~510465 ) | Rod, Push ( Df50:510001~510465 ) | |
29 | 57130-94301 Bush, Drive Sha (type:l Df50:510001~510465 ) | Bush, Drive Sha (type:l Df50:510001~510465 ) | |
7-1 | 57110-87J30 Shaft Comp, Driv (type:s ) | Shaft Comp, Driv (type:s ) | |
7-2 | 57110-87J40 Shaft, Drive (l) (type:l ) | Shaft, Drive (l) (type:l ) | |
8 | 57133-87J00 Collar, Drive Sh ( ) | Collar, Drive Sh ( ) | |
9 | 09265-20005 Bearing Assy ( ) | Bearing Assy ( ) | |
10-1 | 09181-35101 Shim, 35x42x0.5 (drive Shaft Adjust ) | Shim, 35x42x0.5 (drive Shaft Adjust ) | |
10-2 | 09181-33002 Shim, 33.5x41.8x (drive Shaft Adjust ) | Shim, 33.5x41.8x (drive Shaft Adjust ) | |
10-3 | 09181-33004 Shim, 33.5x41.8x (drive Shaft Adjust ) | Shim, 33.5x41.8x (drive Shaft Adjust ) | |
10-4 | 09181-33006 (drive Shaft Adjust ) | (drive Shaft Adjust ) | |
10-5 | 09181-33008 (drive Shaft Adjust ) | (drive Shaft Adjust ) | |
10-6 | 09181-35111 Shim, 35x42x1 (drive Shaft Adjust ) | Shim, 35x42x1 (drive Shaft Adjust ) |
