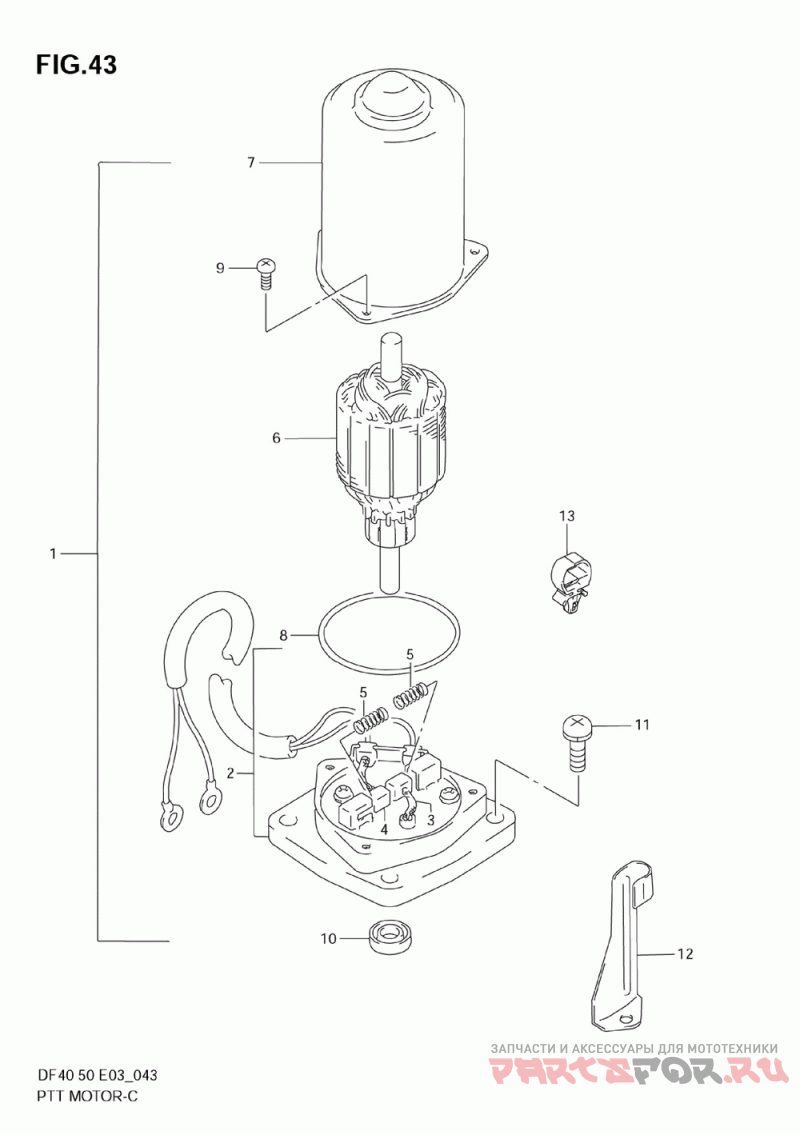

Ptt motor (type:t model:99,00)
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1 | 38100-87J00-0EP Деталь Motor Assy, Ptt( ( ) | Деталь Motor Assy, Ptt( ( ) | |
2 | 31173-87J00 Деталь Holder, Brush ( ) | Деталь Holder, Brush ( ) | |
3 | 31133-97E00 Деталь Brush ( ) | Деталь Brush ( ) | |
4 | 31136-87J00 Деталь Breaker ( ) | Деталь Breaker ( ) | |
5 | 31135-97E00 Деталь Spring ( ) | Деталь Spring ( ) | |
6 | 31311-87J00 Деталь Armature ( ) | Деталь Armature ( ) | |
7 | 31110-97E00-0EP Деталь Yoke Assy(black ( ) | Деталь Yoke Assy(black ( ) | |
8 | 31123-97E00 Деталь 0 Ring ( ) | Деталь 0 Ring ( ) | |
9 | 09136-05041 Деталь .screw, Handle Rod Adjuster ( ) | Деталь .screw, Handle Rod Adjuster ( ) | |
10 | 33799-97E00 Деталь Seal, Oil ( ) | Деталь Seal, Oil ( ) | |
11 | 48862-97E00 Деталь Screw, Motor ( ) | Деталь Screw, Motor ( ) | |
12 | 38111-97E00 Деталь Holder Ptt Cabl ( ) | Деталь Holder Ptt Cabl ( ) | |
13 | 09403-14308 Деталь Clamp ( Refer To Fig.44(f-12) For Model:01~09 ) | Деталь Clamp ( Refer To Fig.44(f-12) For Model:01~09 ) |
