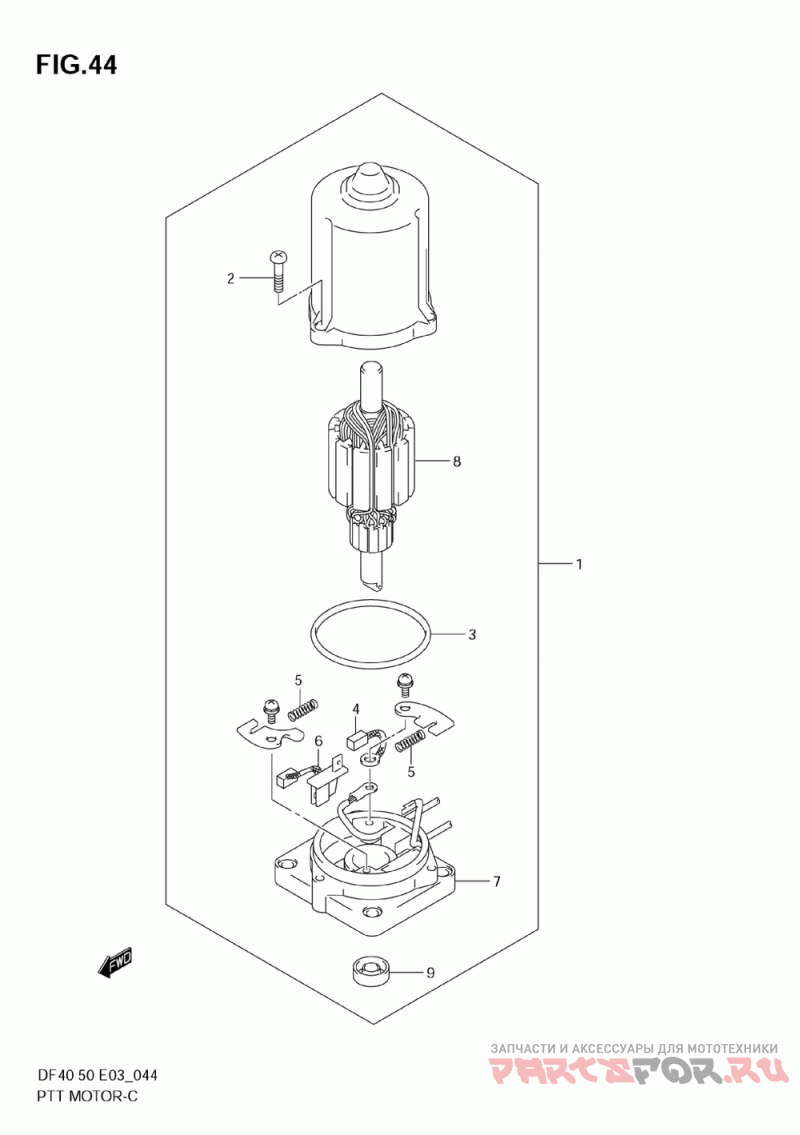

Ptt motor (type:t model:01~09)
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 38100-87J11 Motor Asy, Ptt ( ) | Motor Asy, Ptt ( ) | |
1-2 | 38100-87J20 Motor Assy, Ptt (model:05~09 ) | Motor Assy, Ptt (model:05~09 ) | |
2 | 31111-87J10 Screw ( ) | Screw ( ) | |
3 | 31123-97E00 0 Ring ( ) | 0 Ring ( ) | |
4 | 31133-94900 Brush ( ) | Brush ( ) | |
5 | 31135-94900 Spring ( ) | Spring ( ) | |
6 | 31136-87J10 Breaker ( ) | Breaker ( ) | |
7-1 | 31173-87J10 Holder Assy, Br ( ) | Holder Assy, Br ( ) | |
7-2 | 31173-87J20 Holder Assy, Bru (model:05~09 ) | Holder Assy, Bru (model:05~09 ) | |
8 | 31311-87J10 Armature ( ) | Armature ( ) | |
9 | 33799-97E00 Seal, Oil ( ) | Seal, Oil ( ) |
