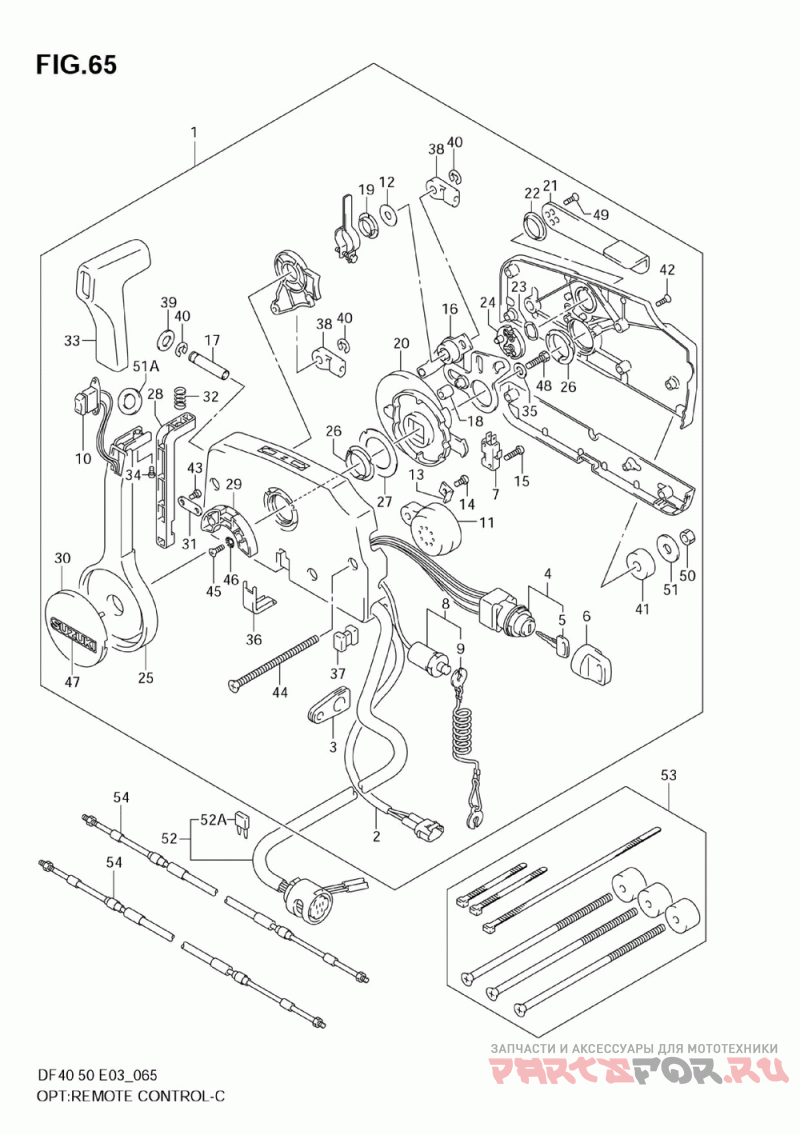

Opt:remote control (model:05~09)
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1 | 67200-93J01 Remote Control ( ) | Remote Control ( ) | |
2 | 36646-93J00 Wire Assy, Ptt S ( ) | Wire Assy, Ptt S ( ) | |
3 | 36628-92E00 Grommet, Wire Ha ( ) | Grommet, Wire Ha ( ) | |
4 | 37110-93J00 Switch Assy, Ign ( ) | Switch Assy, Ign ( ) | |
5-1 | 37141-99E00 Key (931) ( ) | Key (931) ( ) | |
5-2 | 37141-99E10 Key (932) ( ) | Key (932) ( ) | |
5-3 | 37141-99E20 Key (933) ( ) | Key (933) ( ) | |
5-4 | 37141-99E30 Key (934) ( ) | Key (934) ( ) | |
5-5 | 37141-99E40 Key (935) ( ) | Key (935) ( ) | |
5-6 | 37141-99E50 Key (936) ( ) | Key (936) ( ) | |
5-7 | 37141-99E60 Key (937) ( ) | Key (937) ( ) | |
5-8 | 37141-99E70 Key (938) ( ) | Key (938) ( ) | |
5-9 | 37141-99E80 Key (939) ( ) | Key (939) ( ) | |
5-10 | 37141-99E90 Key (940) ( ) | Key (940) ( ) | |
5-11 | 37141-99EA0 Key (941) ( ) | Key (941) ( ) | |
5-12 | 37141-99EB0 Key (942) ( ) | Key (942) ( ) | |
6 | 37143-99E00 Cap, Key ( ) | Cap, Key ( ) | |
7 | 37721-93J90 Switch Assy, Neu ( ) | Switch Assy, Neu ( ) | |
8 | 37820-93J02 Switch Assy, Eme ( ) | Switch Assy, Eme ( ) | |
9 | 37823-92E01 Plate Assy, Emer ( ) | Plate Assy, Emer ( ) | |
10 | 37850-90J04 Switch Assy, Ptt ( ) | Switch Assy, Ptt ( ) | |
11 | 38500-93J90 Buzzer, Warning ( ) | Buzzer, Warning ( ) | |
12 | 67212-95600 Washer ( ) | Washer ( ) | |
13 | 67213-92E00 Bracket, Buzzer ( ) | Bracket, Buzzer ( ) | |
14 | 09125-05042 .screw (5x10) ( ) | .screw (5x10) ( ) | |
15 | 67296-92E10 Screw ( ) | Screw ( ) | |
16 | 67220-95630 Plate Assy 15c ( ) | Plate Assy 15c ( ) | |
17 | 67223-99E10 Knob, Brake Adju ( ) | Knob, Brake Adju ( ) | |
18 | 67229-95600 Roller ( ) | Roller ( ) | |
19 | 67232-95600 Bush ( ) | Bush ( ) | |
20 | 67238-87D00 Gear, Drive ( ) | Gear, Drive ( ) | |
21 | 67241-99E10 Lever, Free Thro ( ) | Lever, Free Thro ( ) | |
22 | 67243-95600 Bush ( ) | Bush ( ) | |
23 | 67244-95600 Wave Washer ( ) | Wave Washer ( ) | |
24 | 67245-95600 Drum, Free Throt ( ) | Drum, Free Throt ( ) | |
25 | 67251-99E10 Lever, Handle ( ) | Lever, Handle ( ) | |
26 | 67252-95600 Bush ( ) | Bush ( ) | |
27 | 67253-95600 ( ) | ( ) | |
28 | 67255-99E00 Arm, Lock ( ) | Arm, Lock ( ) | |
29 | 67256-95600 Holder ( ) | Holder ( ) | |
30 | 67257-99E00 Cap, Lever ( ) | Cap, Lever ( ) | |
31 | 67258-99E00 Bracket ( ) | Bracket ( ) | |
32 | 67259-87D00 Spring, Neutral ( ) | Spring, Neutral ( ) | |
33 | 67261-99E00 Grip ( ) | Grip ( ) | |
34 | 67296-94310 Screw, Remo-con ( ) | Screw, Remo-con ( ) | |
35 | 67264-95600 Washer ( ) | Washer ( ) | |
36 | 67267-95610 Cover, Wire ( ) | Cover, Wire ( ) | |
37 | 67273-95600 Spacer ( ) | Spacer ( ) | |
38 | 67275-95600 End Cable ( ) | End Cable ( ) | |
39 | 67288-92E00 ( ) | ( ) | |
40 | 67292-94300 E Ring ( ) | E Ring ( ) | |
41 | 67294-95600 Spacer ( ) | Spacer ( ) | |
42 | 67296-90J00 Screw, Rear Cove ( ) | Screw, Rear Cove ( ) | |
43 | 67296-94300 Screw, Remo-con ( ) | Screw, Remo-con ( ) | |
44 | 67296-95600 Screw ( ) | Screw ( ) | |
45 | 67296-95610 Screw ( ) | Screw ( ) | |
46 | 67297-95600 Washer ( ) | Washer ( ) | |
47 | 68165-16B00-13L .emblem, Suzuki ( ) | .emblem, Suzuki ( ) | |
48 | 09100-08232 Bolt ( ) | Bolt ( ) | |
49 | 09126-05003 .screw ( ) | .screw ( ) | |
50 | 09140-06020 .nut ( ) | .nut ( ) | |
51 | 09160-06104 .washer ( ) | .washer ( ) | |
51A | 37859-90J00 Spacer ( ) | Spacer ( ) | |
52-1 | 36620-93J01 Main Harness 21 (l:5000 Model:05~09 ) | Main Harness 21 (l:5000 Model:05~09 ) | |
52-2 | 36620-93J51 Main Harness 16 (l:3500 Model:06~09 ) | Main Harness 16 (l:3500 Model:06~09 ) | |
52-3 | 36620-93J61 Main Harness 26 (l:6500 Model:06~09 ) | Main Harness 26 (l:6500 Model:06~09 ) | |
52A | 09481-10501 .fuse (10a) ( ) | .fuse (10a) ( ) | |
53 | 67140-95600 Attachment ( ) | Attachment ( ) | |
54-2 | 67320-93J10 ((*)see Note ) | ((*)see Note ) | |
54-3 | 67320-93J20 ((*)see Note ) | ((*)see Note ) | |
54-4 | 67320-93J30 ((*)see Note ) | ((*)see Note ) | |
54-5 | 67320-93J40 Cable Assy, Remo ((*)see Note ) | Cable Assy, Remo ((*)see Note ) | |
54-6 | 67320-93J50 ((*)see Note ) | ((*)see Note ) |
