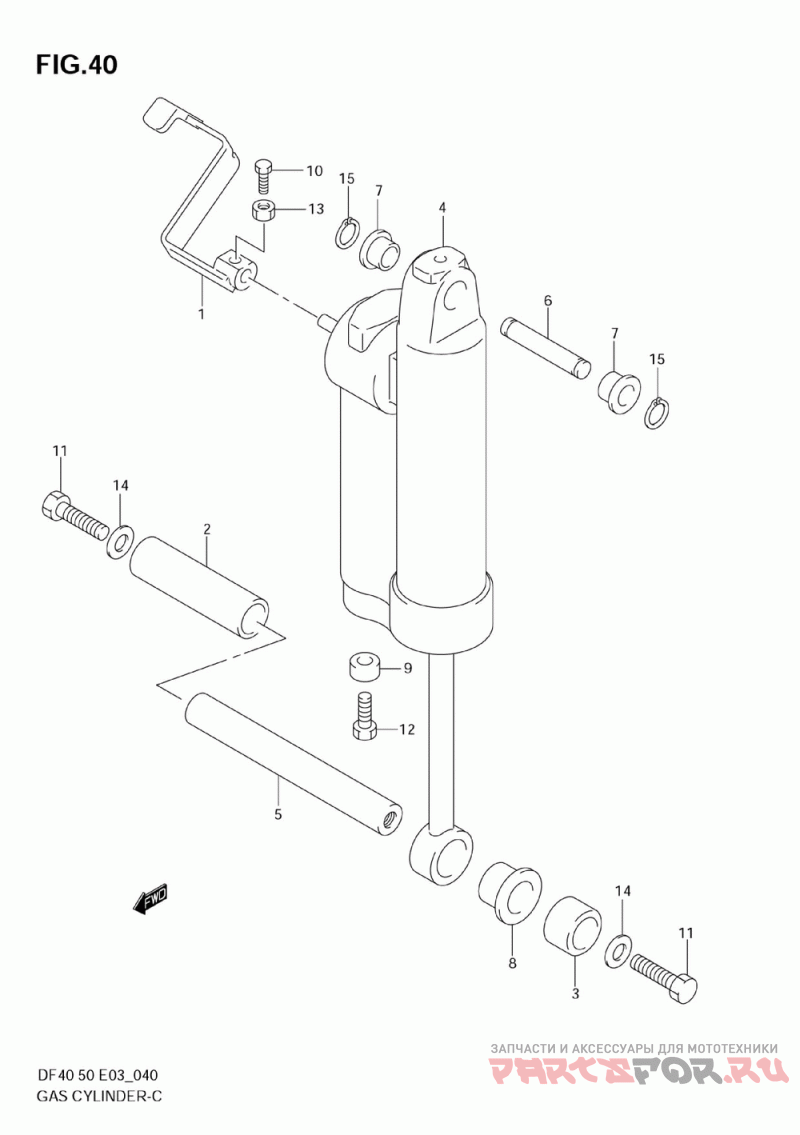

Gas cylinder (type:qh model:01,02)
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1 | 45260-89J00 Lever, Release ( ) | Lever, Release ( ) | |
2 | 47225-89J00 Coller, Tilt Cyl ( ) | Coller, Tilt Cyl ( ) | |
3 | 47226-89J00 Coller, Tilt Cyl ( ) | Coller, Tilt Cyl ( ) | |
5 | 48121-89J10 Shaft, Cylinder ( ) | Shaft, Cylinder ( ) | |
6 | 48321-89J10 Shaft, Tilt Cyli ( ) | Shaft, Tilt Cyli ( ) | |
7 | 48325-89J00 Bush, Tilt Cyl U ( ) | Bush, Tilt Cyl U ( ) | |
8 | 48326-89J00 Bush, Tilt Cyl L ( ) | Bush, Tilt Cyl L ( ) | |
9 | 55321-87J00 Anode, Protectio ( ) | Anode, Protectio ( ) | |
10 | 01550-06167 .bolt, Remocon Cable Holder ( ) | .bolt, Remocon Cable Holder ( ) | |
11 | 09100-10220 Bolt ( ) | Bolt ( ) | |
12 | 09128-06021 Bolt (6x14) ( ) | Bolt (6x14) ( ) | |
13 | 09140-06020 .nut ( ) | .nut ( ) | |
14 | 09160-10081 Washer (10x20x3.0) ( ) | Washer (10x20x3.0) ( ) | |
15 | 09380-12002 Snap Ring ( ) | Snap Ring ( ) |
