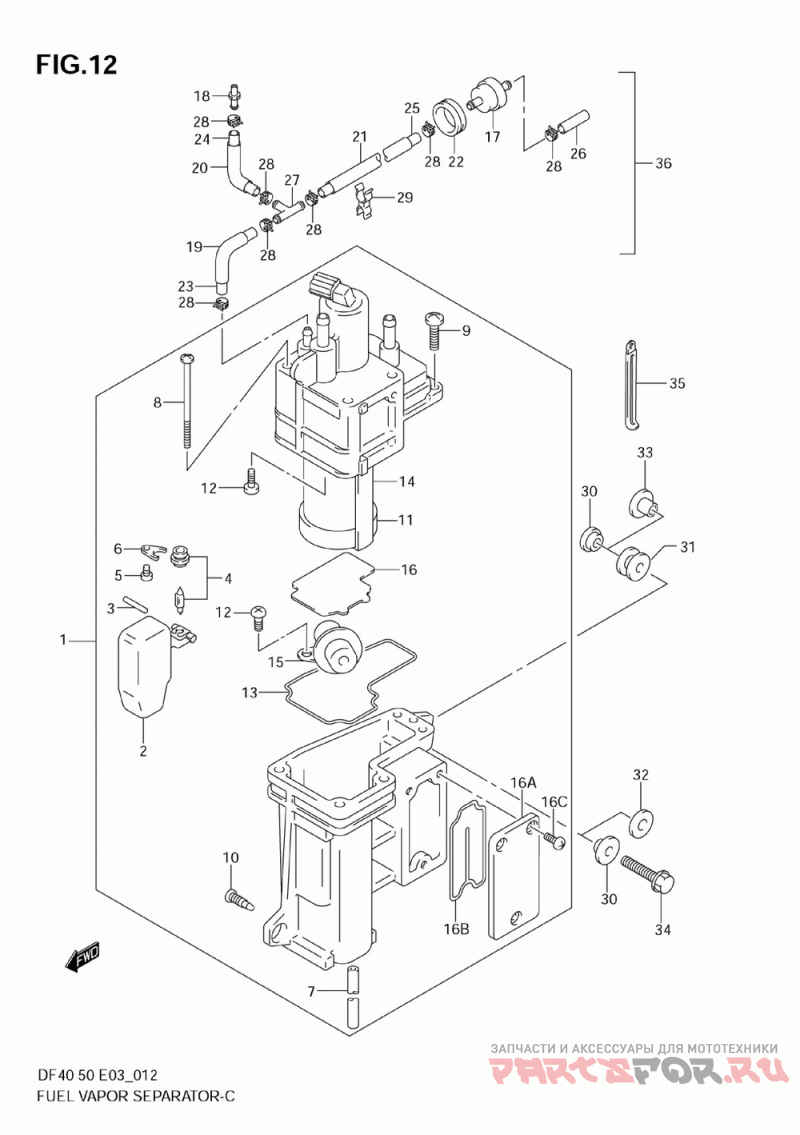

Fuel vapor separator (model:00~09)
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 15600-87J11 Separator Assy, (model:00 ) | Separator Assy, (model:00 ) | |
2 | 15650-99E00 Float ( ) | Float ( ) | |
3 | 15654-99E00 Pin ( ) | Pin ( ) | |
4 | 13370-99E00 Valve, Needle (with Valve Seat ) | Valve, Needle (with Valve Seat ) | |
5 | 02112-0408A .screw ( ) | .screw ( ) | |
6 | 13373-39110 .plate ( ) | .plate ( ) | |
7 | 15683-87J00 Hose ( ) | Hose ( ) | |
8 | 15627-99E00 Screw(l:70) ( ) | Screw(l:70) ( ) | |
9 | 15628-99E00 Screw(l:15) ( ) | Screw(l:15) ( ) | |
10 | 15629-99E10 Screw, Drain ( ) | Screw, Drain ( ) | |
11 | 15641-99E00 Filter, Fuel Pum ( ) | Filter, Fuel Pum ( ) | |
12 | 02112-0510A .screw ( ) | .screw ( ) | |
13 | 15626-99E00 O-ring ( ) | O-ring ( ) | |
14 | 15200-87J10 Pump Assy, Fuel ( ) | Pump Assy, Fuel ( ) | |
15 | 15760-87J00 Regulator ( ) | Regulator ( ) | |
16 | 15642-87J00 Plate ( ) | Plate ( ) | |
16A | 15612-99E00 Cover, Vapor Sep ( ) | Cover, Vapor Sep ( ) | |
16B | 15613-99E00 O Ring, Vapor Se ( ) | O Ring, Vapor Se ( ) | |
16C | 15614-99E00 Screw, Vapor Sep ( ) | Screw, Vapor Sep ( ) | |
17 | 15410-98500 Filter, Fuel ( ) | Filter, Fuel ( ) | |
18 | 15661-87J01 Jet, Evaporizatn ( ) | Jet, Evaporizatn ( ) | |
19 | 18498-87JC0 Protector(l:450 (l:450->110 ) | Protector(l:450 (l:450->110 ) | |
22 | 09320-20008 Cushion ( ) | Cushion ( ) | |
23 | 09352-50823-600 Hose (l:600->160 ) | Hose (l:600->160 ) | |
26 | 09359-40701-600 Hose (l:600->120 ) | Hose (l:600->120 ) | |
27 | 09367-06002 3 Way, Water Hose ( ) | 3 Way, Water Hose ( ) | |
28 | 09401-08412 Clip (<-09401-08409 ) | Clip (<-09401-08409 ) | |
29 | 09408-00189 Clamp ( ) | Clamp ( ) | |
30 | 09169-06067 Washer (df40:~422684 Df50:~424593 ) | Washer (df40:~422684 Df50:~424593 ) | |
31 | 09320-09039 Cushion ( ) | Cushion ( ) | |
32 | 09160-06084 Washer (6.5x18x1.6) (df40:422685~model:05 Df50:424594~model:05 ) | Washer (6.5x18x1.6) (df40:422685~model:05 Df50:424594~model:05 ) | |
33 | 09169-06075 Washer (df40:422685~ Df50:424594~ ) | Washer (df40:422685~ Df50:424594~ ) | |
34-1 | 01550-06257 ..bolt ( ) | ..bolt ( ) | |
34-2 | 09116-06202 Bolt (w/washer) (model:06~09 ) | Bolt (w/washer) (model:06~09 ) | |
35 | 09404-06435 Clamp (l:135) ( ) | Clamp (l:135) ( ) | |
36 | 15660-87J00 Hose Set, Evapor (opt Ref.no.17~29 ) | Hose Set, Evapor (opt Ref.no.17~29 ) |
