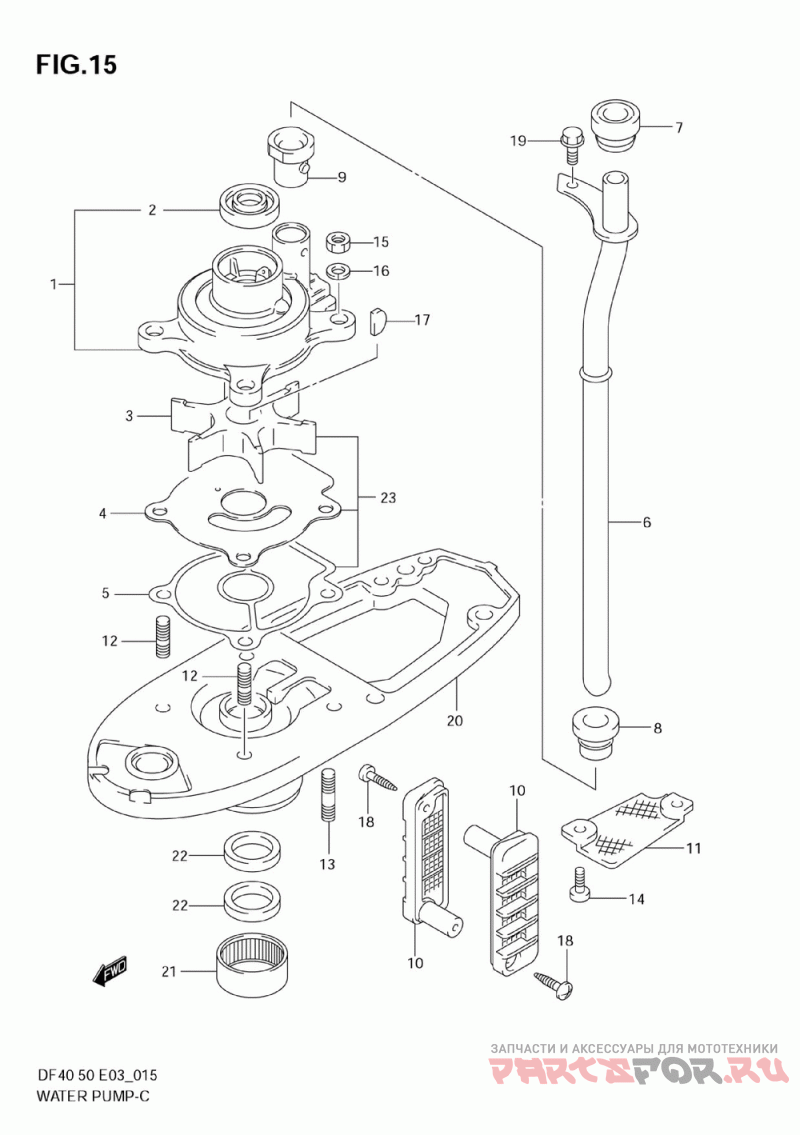

Водяной насос
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 17410-95D11 Case, Water Pump ( ) | Case, Water Pump ( ) | |
1-2 | 17411-94421 Case, Water Pump (df40:422328~ Df50:423475~ ) | Case, Water Pump (df40:422328~ Df50:423475~ ) | |
2 | 09282-17007 Seal (df40:~422327 Df50:~423474 ) | Seal (df40:~422327 Df50:~423474 ) | |
3 | 17461-96312 Impeller, Water ( ) | Impeller, Water ( ) | |
4 | 17471-94401 Panel, Pump Case ( ) | Panel, Pump Case ( ) | |
5 | 17472-96302 Gasket, Pump Cas ( ) | Gasket, Pump Cas ( ) | |
6-1 | 17560-87J11 Tube, Water (s) ( ) | Tube, Water (s) ( ) | |
6-2 | 17560-87J01 Tube, Water (l) ( ) | Tube, Water (l) ( ) | |
7 | 17563-94400 Grommet Water T ( ) | Grommet Water T ( ) | |
8 | 17565-94400 Grommet Water T (type:l ) | Grommet Water T (type:l ) | |
9 | 17566-94400 Grommet Water T ( ) | Grommet Water T ( ) | |
10 | 17631-96320 Filter, Water ( ) | Filter, Water ( ) | |
11-1 | 17635-87E00 Filter, Water Su ( ) | Filter, Water Su ( ) | |
11-2 | 17635-87E10 Plate, Gear Case (opt ) | Plate, Gear Case (opt ) | |
12 | 09108-06060 Bolt Stud ( ) | Bolt Stud ( ) | |
13 | 09108-06061 Bolt Stud ( ) | Bolt Stud ( ) | |
14 | 09125-05046 Screw (5x12) ( ) | Screw (5x12) ( ) | |
15 | 29141-93J00 Nut (<-09140-06020 ) | Nut (<-09140-06020 ) | |
16 | 29162-93J00 Washer (<-09162-06006 ) | Washer (<-09162-06006 ) | |
17 | 09420-04006 Key, Impeller ( ) | Key, Impeller ( ) | |
18 | 03142-04309 03142-04303 ( ) | 03142-04303 ( ) | |
19 | 09116-06094 Bolt, 6x15 ( ) | Bolt, 6x15 ( ) | |
20-1 | 56130-94430-0EP Housing Comp, Dr (df40:510210~ Df50:510466~ ) | Housing Comp, Dr (df40:510210~ Df50:510466~ ) | |
20-2 | 56130-87J00-0EP Housing, Drive (df40:510001~510209 Df50:510001~510465 ) | Housing, Drive (df40:510001~510209 Df50:510001~510465 ) | |
21-1 | 09263-25025 .bearing (df40:510210~ Df50:510466~ ) | .bearing (df40:510210~ Df50:510466~ ) | |
22 | 09282-17005 Oil Seal ( ) | Oil Seal ( ) | |
23 | 17400-96352 Kit, Water Pump (opt Ref.no, 3, 4, 5, 17 ) | Kit, Water Pump (opt Ref.no, 3, 4, 5, 17 ) |
