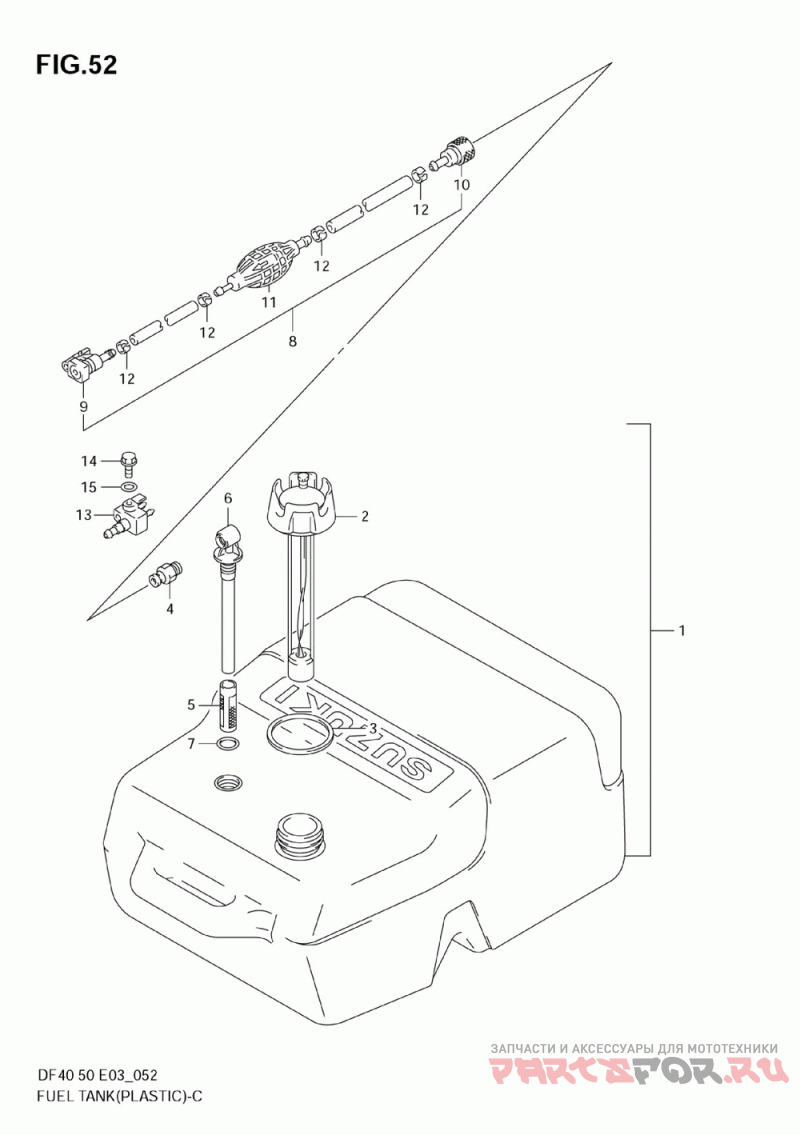

Топливный бак
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1 | 65000-95D01 Tank Assy, Fuel ( ) | Tank Assy, Fuel ( ) | |
2 | 65520-95D00 Cap Assy, Fuel T ( ) | Cap Assy, Fuel T ( ) | |
3 | 65561-95D00 Gasket, Tank Cap ( ) | Gasket, Tank Cap ( ) | |
4 | 65740-95D01 Plug, Fuel Conne ( ) | Plug, Fuel Conne ( ) | |
5 | 65831-95D00 Filter, Fuel Out ( ) | Filter, Fuel Out ( ) | |
6 | 65890-95D00 Outlet Assy ( ) | Outlet Assy ( ) | |
7 | 65892-95D00 O-ring, Fuel Out ( ) | O-ring, Fuel Out ( ) | |
8-1 | 65700-87J22 Hose, Fuel Tank ( ) | Hose, Fuel Tank ( ) | |
8-2 | 65700-87J20 Hose, Fuel(tank (model:09 ) | Hose, Fuel(tank (model:09 ) | |
9 | 65750-87J11 Socket, Fuel Hos ( ) | Socket, Fuel Hos ( ) | |
10 | 65750-95500 Socket, Fuel Hos ( ) | Socket, Fuel Hos ( ) | |
11 | 65770-95504 Pump, Squeeze ( ) | Pump, Squeeze ( ) | |
12 | 65781-98500 Clip, Hose ( ) | Clip, Hose ( ) | |
13 | 65720-986B0 Plug, Fuel Conne ( ) | Plug, Fuel Conne ( ) | |
14 | 09103-06237 Bolt ( ) | Bolt ( ) | |
15 | 09160-06085 Washer ( ) | Washer ( ) |
