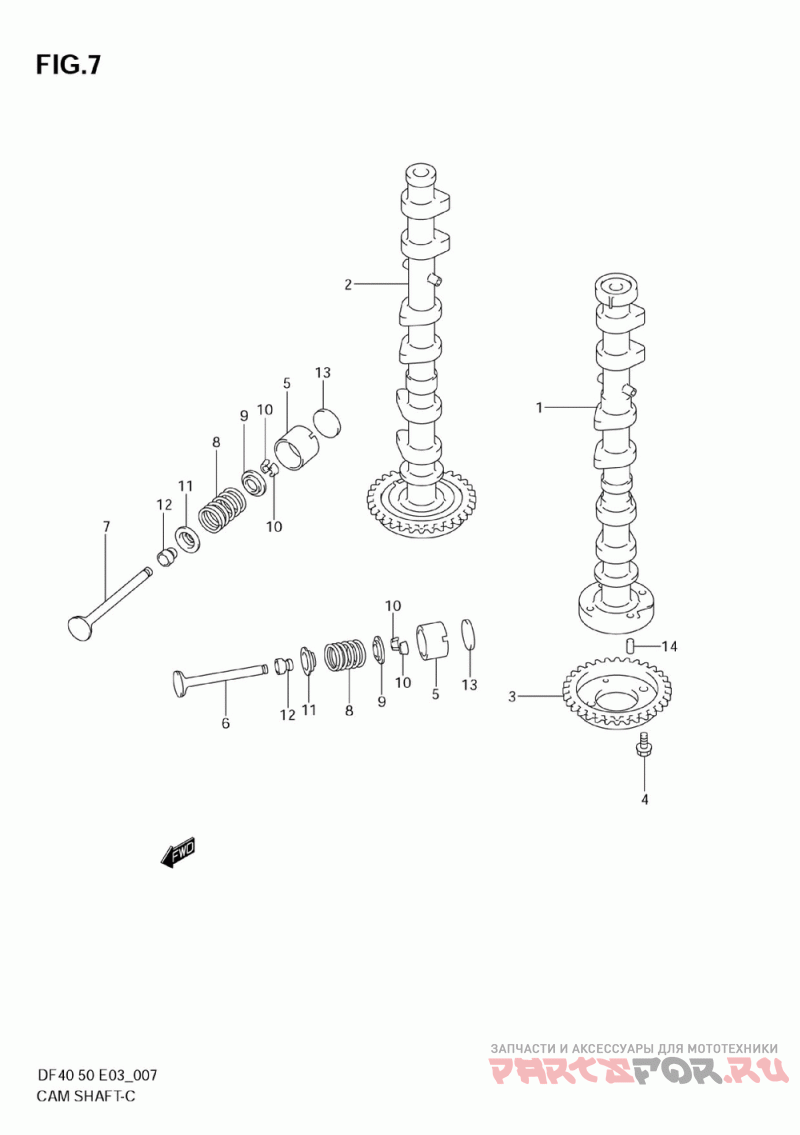

Распределительный вал
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 12710-87J00 Camshaft Comp, I (df40 ) | Camshaft Comp, I (df40 ) | |
1-2 | 12710-87J20 Camshaft Assy, I (df40 Model:01~09 ) | Camshaft Assy, I (df40 Model:01~09 ) | |
1-3 | 12710-87J10 Camshaft , Intk (df50 ) | Camshaft , Intk (df50 ) | |
1-4 | 12710-87J30 Camshaft Assy, I (df50 Model:01~09 ) | Camshaft Assy, I (df50 Model:01~09 ) | |
2-1 | 12720-87J00 Camshaft Comp, E (df40 ) | Camshaft Comp, E (df40 ) | |
2-2 | 12720-87J10 Camshaft Comp, E (df50 ) | Camshaft Comp, E (df50 ) | |
3 | 12741-87J00 Sprocket, Camsha ( ) | Sprocket, Camsha ( ) | |
4 | 01550-0612A Bolt ( ) | Bolt ( ) | |
5 | 12891-73G01 Tappet ( ) | Tappet ( ) | |
6 | 12911-73G01 Valve, Intk ( ) | Valve, Intk ( ) | |
7 | 12915-73G20 Valve, Exh ( ) | Valve, Exh ( ) | |
8 | 12921-87J10 Spring, Valve (<-12921-87j00 ) | Spring, Valve (<-12921-87j00 ) | |
9 | 12931-78G00 Retainer, Valve ( ) | Retainer, Valve ( ) | |
10 | 12932-24400 Cotter, Valve ( ) | Cotter, Valve ( ) | |
11 | 12933-51E00 Seat, Valve Spri ( ) | Seat, Valve Spri ( ) | |
12 | 09289-05012 Seal, Valve Stem ( ) | Seal, Valve Stem ( ) | |
13-1 | 12892-65H00-218 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-2 | 12892-73G01-220 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-3 | 12892-65H00-222 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-4 | 12892-73G01-224 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-5 | 12892-73G01-226 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-6 | 12892-73G01-228 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-7 | 12892-73G01-230 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-8 | 12892-65H00-232 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-9 | 12892-73G01-234 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-10 | 12892-65H00-236 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-11 | 12892-65H00-238 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-12 | 12892-73G01-240 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-13 | 12892-65H00-242 Shim Tappet, T: ( ) | Shim Tappet, T: ( ) | |
13-14 | 12892-65H00-244 Shim Tappet, T: ( ) | Shim Tappet, T: ( ) | |
13-15 | 12892-65H00-246 Shim, Tappet T:2 ( ) | Shim, Tappet T:2 ( ) | |
13-16 | 12892-65H00-248 Shim, Tappet T:2 ( ) | Shim, Tappet T:2 ( ) | |
13-17 | 12892-65H00-250 Shim, Tappet T:2 ( ) | Shim, Tappet T:2 ( ) | |
13-18 | 12892-65H00-252 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-19 | 12892-65H00-254 Shim, Tappet T:2 ( ) | Shim, Tappet T:2 ( ) | |
13-20 | 12892-73G01-256 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-21 | 12892-65H00-258 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-22 | 12892-65H00-260 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-23 | 12892-73G01-262 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-24 | 12892-73G01-264 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-25 | 12892-65H00-266 Shim, Tappet T:2 ( ) | Shim, Tappet T:2 ( ) | |
13-26 | 12892-65H00-268 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-27 | 12892-65H00-270 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-28 | 12892-65H00-272 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-29 | 12892-65H00-274 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-30 | 12892-73G01-276 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-31 | 12892-73G01-278 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-32 | 12892-73G01-280 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-33 | 12892-73G01-282 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-34 | 12892-73G01-284 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-35 | 12892-73G01-286 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-36 | 12892-73G01-288 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-37 | 12892-73G01-290 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-38 | 12892-65H00-292 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-39 | 12892-73G01-294 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-40 | 12892-73G01-296 Shim, Tappet ( ) | Shim, Tappet ( ) | |
13-41 | 12892-65H00-298 Shim, Tappet, T:2 ( ) | Shim, Tappet, T:2 ( ) | |
13-42 | 12892-73G01-300 Shim, Tappet ( ) | Shim, Tappet ( ) | |
14 | 04221-05109 Pin ( ) | Pin ( ) |
