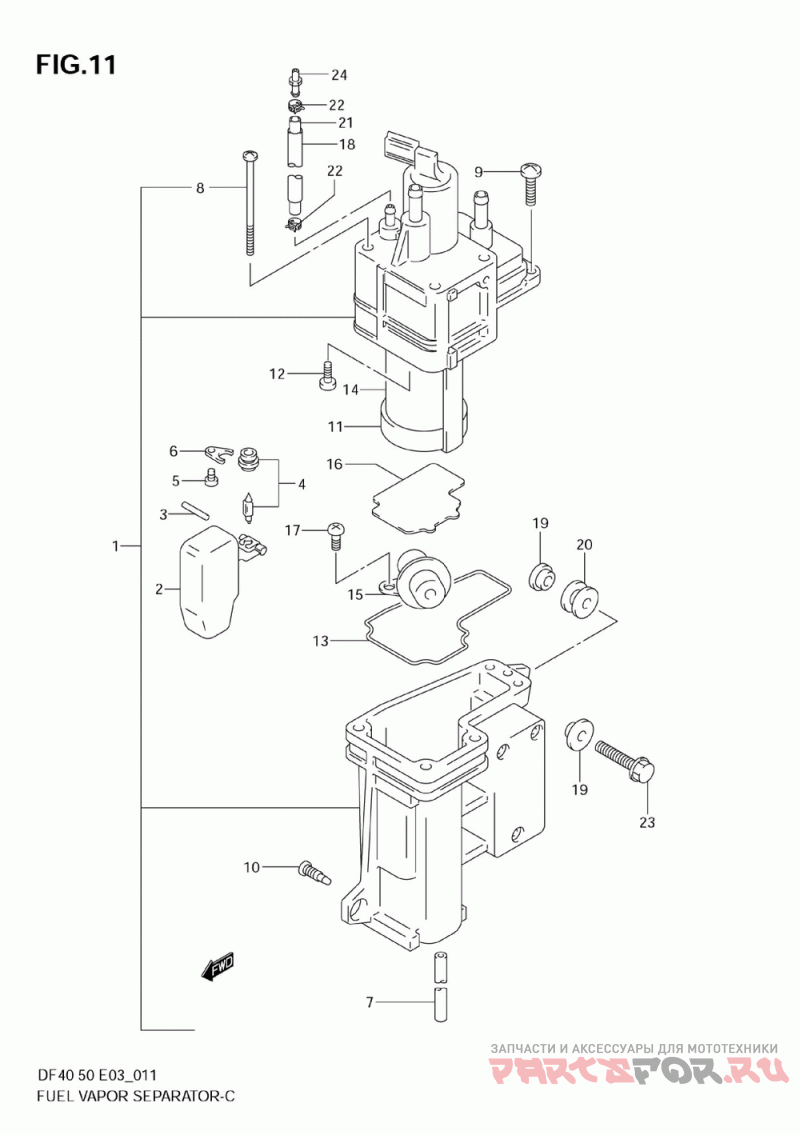

Отделитель паров топлива (модели 1999 года)
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1 | 15600-87J11 Separator Assy, (->15600-87j01 ) | Separator Assy, (->15600-87j01 ) | |
2 | 15650-99E00 Float ( ) | Float ( ) | |
3 | 15654-99E00 Pin ( ) | Pin ( ) | |
4 | 13370-99E00 Valve, Needle (with Valve Seat ) | Valve, Needle (with Valve Seat ) | |
5 | 02112-0408A .screw ( ) | .screw ( ) | |
6 | 13373-39110 .plate ( ) | .plate ( ) | |
7 | 15683-87J00 Hose ( ) | Hose ( ) | |
8 | 15627-99E00 Screw(l:70) ( ) | Screw(l:70) ( ) | |
9 | 15628-99E00 Screw(l:15) ( ) | Screw(l:15) ( ) | |
10 | 15629-99E10 Screw, Drain ( ) | Screw, Drain ( ) | |
11 | 15641-99E00 Filter, Fuel Pum ( ) | Filter, Fuel Pum ( ) | |
12 | 02112-0510A .screw ( ) | .screw ( ) | |
13 | 15626-99E00 O-ring ( ) | O-ring ( ) | |
14 | 15200-87J10 Pump Assy, Fuel ( ) | Pump Assy, Fuel ( ) | |
15 | 15760-87J00 Regulator ( ) | Regulator ( ) | |
16 | 15642-87J00 Plate ( ) | Plate ( ) | |
18 | 18498-87JC0 Protector(l:450 (l:450->300 ) | Protector(l:450 (l:450->300 ) | |
19 | 09169-06067 Washer ( ) | Washer ( ) | |
20 | 09320-09039 Cushion ( ) | Cushion ( ) | |
21 | 09352-50823-600 Hose (l:600->410 ) | Hose (l:600->410 ) | |
22 | 09401-08409 Clamp ( ) | Clamp ( ) | |
23 | 01550-06257 ..bolt ( ) | ..bolt ( ) | |
24 | 15661-87J01 Jet, Evaporizatn ( Refer To Fig.12(c- 3) For Model:00~09 ) | Jet, Evaporizatn ( Refer To Fig.12(c- 3) For Model:00~09 ) |
