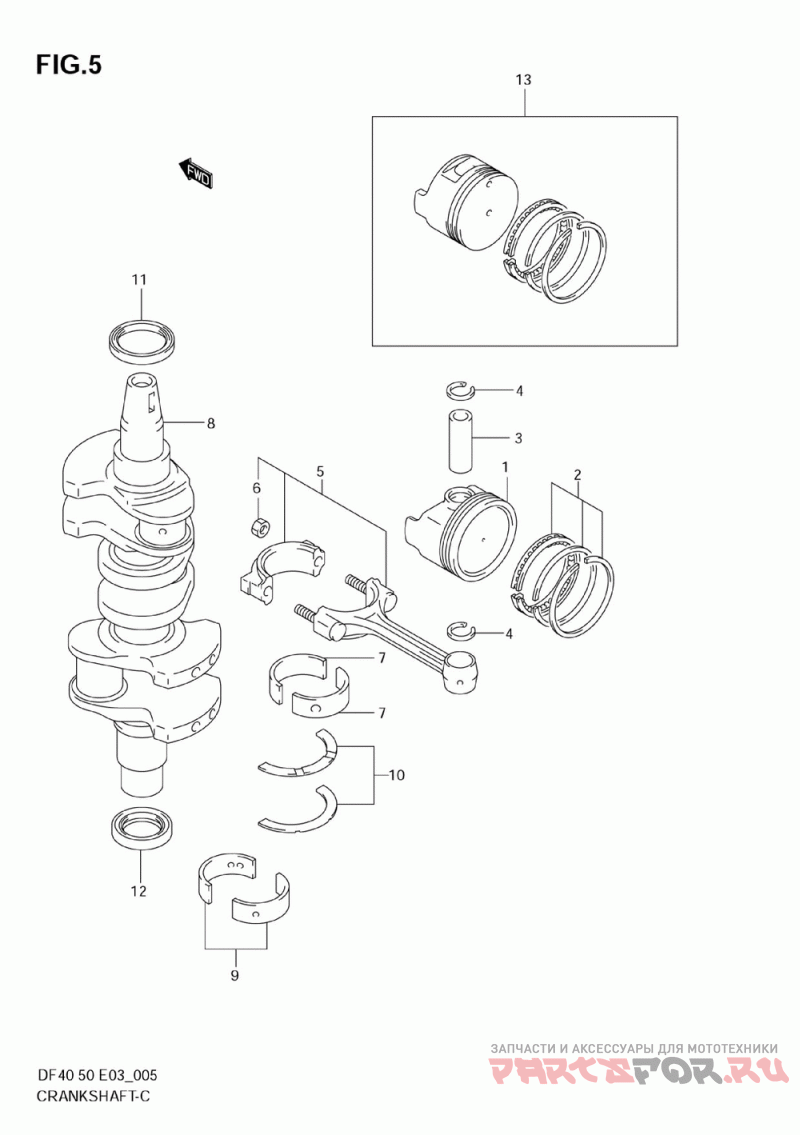

Коленвал
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1 | 12111-87J04 Деталь Piston ( ) | Деталь Piston ( ) | |
2 | 12140-87J01 Деталь Ring Set, Piston ( ) | Деталь Ring Set, Piston ( ) | |
3 | 12151-87J00 Деталь Pin, Piston ( ) | Деталь Pin, Piston ( ) | |
4 | 09381-18005 Деталь Clip ( ) | Деталь Clip ( ) | |
5 | 12160-87J00 Деталь Connrod Assy ( ) | Деталь Connrod Assy ( ) | |
6 | 09159-08033 Деталь .nut ( ) | Деталь .nut ( ) | |
7 | 12181-87J00-0A0 Деталь Bearing, Connrod ( ) | Деталь Bearing, Connrod ( ) | |
8-1 | 12220-87J02 Деталь Crankshaft Assy (->12220-87j03 09160-14065 ) | Деталь Crankshaft Assy (->12220-87j03 09160-14065 ) | |
8-2 | 12220-87J03 Деталь Crankshaft Comp (df40:421179~ Df50:421540~ ) | Деталь Crankshaft Comp (df40:421179~ Df50:421540~ ) | |
8-3 | 12220-87J10 Деталь Crankshaft Comp (model:05~09 ) | Деталь Crankshaft Comp (model:05~09 ) | |
9-1 | 12340-75FA0-0A0 Деталь Bearing Set, Mai (green ) | Деталь Bearing Set, Mai (green ) | |
9-2 | 12340-75FA0-0B0 Деталь Bearing Set, Cra (black ) | Деталь Bearing Set, Cra (black ) | |
9-3 | 12340-75F00-0C0 Деталь Bearing Set, Cra (n/paint ) | Деталь Bearing Set, Cra (n/paint ) | |
9-4 | 12340-75F00-0D0 Деталь Bearing Set, Cra (yellow ) | Деталь Bearing Set, Cra (yellow ) | |
9-5 | 12340-75F00-0E0 Деталь Bearing Set, Cra (blue ) | Деталь Bearing Set, Cra (blue ) | |
10 | 12300-82820 Деталь Metal Set, Crank ( ) | Деталь Metal Set, Crank ( ) | |
11 | 09283-35047 Деталь Seal, Oil (upper ) | Деталь Seal, Oil (upper ) | |
12 | 12281-87J00 Деталь Seal, Oil (under ) | Деталь Seal, Oil (under ) | |
13-1 | 12100-87J02 Деталь Piston Set (opt ) | Деталь Piston Set (opt ) | |
13-2 | 12100-87J03-050 Деталь Piston Set (os/ (opt Part Number 99104-dfkit-003 ) | Деталь Piston Set (os/ (opt Part Number 99104-dfkit-003 ) |
