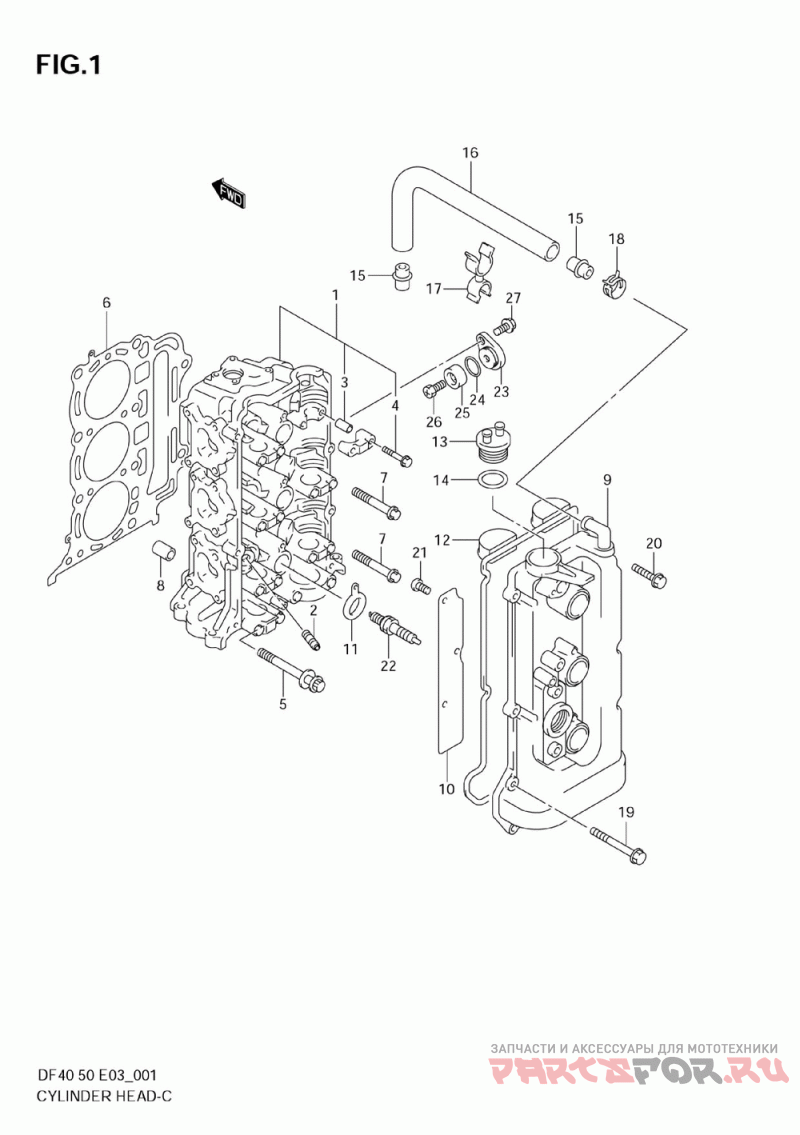

Головка цилиндра
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 11100-87J22-019 Head Assy, Cylin ( ) | Head Assy, Cylin ( ) | |
1-2 | 11100-87J10 Head Assy, Cylin (model:04 ) | Head Assy, Cylin (model:04 ) | |
1-3 | 11100-87J22 Head Assy, Cylin (model:05~09 ) | Head Assy, Cylin (model:05~09 ) | |
2 | 11115-73G01-001 Guide, Valve ( ) | Guide, Valve ( ) | |
3 | 09206-08001 Pin ( ) | Pin ( ) | |
4-1 | 11128-87J00 Bolt, Camshaft H ( ) | Bolt, Camshaft H ( ) | |
4-2 | 11128-90J00 Bolt, Camshaft H (df40:881818~ Df50:884192~ ) | Bolt, Camshaft H (df40:881818~ Df50:884192~ ) | |
5 | 11119-87J00 Bolt, Cylinder H ( ) | Bolt, Cylinder H ( ) | |
6 | 11141-87J02 Gasket, Cylinder ( ) | Gasket, Cylinder ( ) | |
7-1 | 11116-87J10 Bolt, Cyl Head ( ) | Bolt, Cyl Head ( ) | |
7-2 | 11116-87J20 Bolt, Cylinder H (model:04~09 ) | Bolt, Cylinder H (model:04~09 ) | |
8 | 04211-13189 Pin ( ) | Pin ( ) | |
9-1 | 11170-87J00-019 Cover, Cylinder ( ) | Cover, Cylinder ( ) | |
9-2 | 11170-87J00 Cover, Cylinder (model:04~09 ) | Cover, Cylinder (model:04~09 ) | |
10 | 11173-87J01 Plate, Breather ( ) | Plate, Breather ( ) | |
11 | 11179-73G00 Gasket, Spark Pl ( ) | Gasket, Spark Pl ( ) | |
12 | 11189-87J00 Gasket, Cylinder ( ) | Gasket, Cylinder ( ) | |
13 | 11382-99E00 Cap, Oil Filler ( ) | Cap, Oil Filler ( ) | |
14 | 09280-26006 O Ring (d:3.1, Id:26.4) ( ) | O Ring (d:3.1, Id:26.4) ( ) | |
15 | 11176-87J00 Jet, Breather Ho ( ) | Jet, Breather Ho ( ) | |
16 | 11174-99800 Hose Set, Breath ( ) | Hose Set, Breath ( ) | |
17 | 09408-00140 Clamp ( ) | Clamp ( ) | |
18 | 17829-90J00 Clip, Breather H (<-09401-20406 ) | Clip, Breather H (<-09401-20406 ) | |
19 | 01547-06457 Bolt ( ) | Bolt ( ) | |
20 | 01547-06257 Bolt ( ) | Bolt ( ) | |
21 | 02142-0612A Screw ( ) | Screw ( ) | |
22 | 09482-00446 Spark Plug Dcpr ( ) | Spark Plug Dcpr ( ) | |
23 | 11261-93J00 Cover, Protction (model:05~09 ) | Cover, Protction (model:05~09 ) | |
24 | 09280-22019 O Ring (model:05~09 ) | O Ring (model:05~09 ) | |
25 | 55321-87J00 Anode, Protectio (model:05~09 ) | Anode, Protectio (model:05~09 ) | |
26-1 | 09128-06021 Bolt (6x14) (model:05 ) | Bolt (6x14) (model:05 ) | |
26-2 | 09103-06281 Bolt (6x14) (model:06~09 ) | Bolt (6x14) (model:06~09 ) | |
27 | 01550-08207 ..bolt, Lower (model:05~09 ) | ..bolt, Lower (model:05~09 ) |
