Датчик

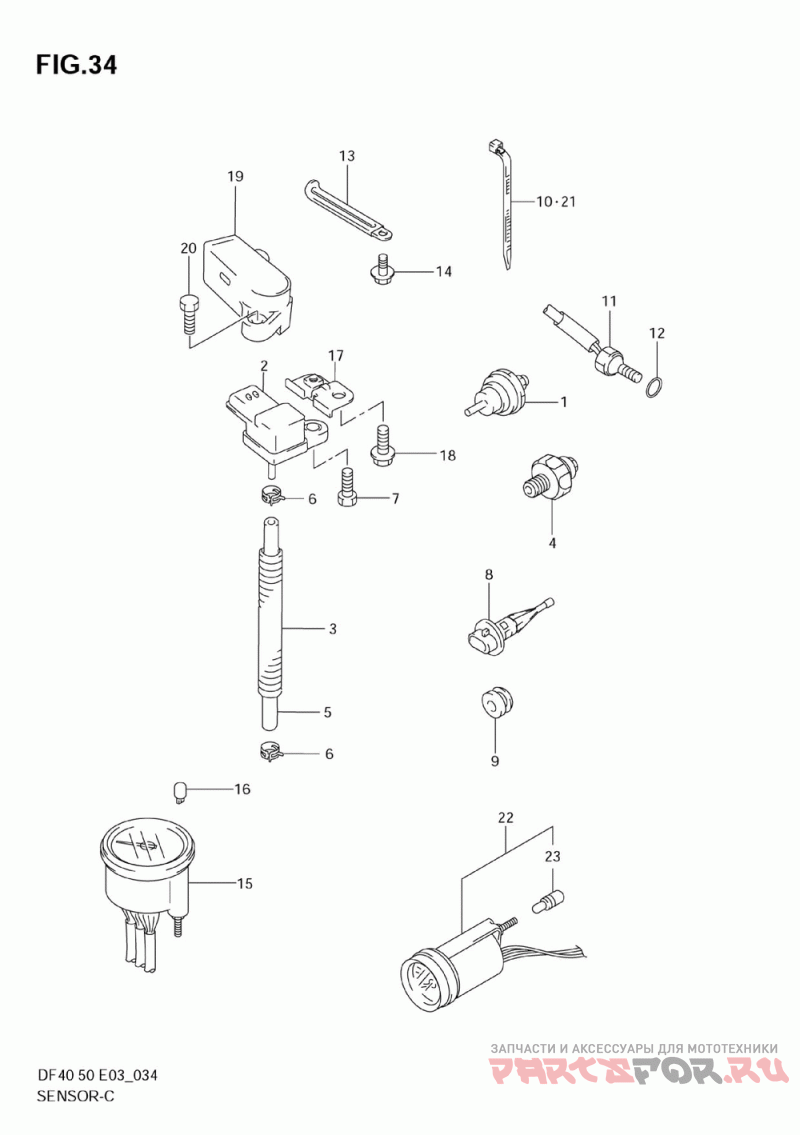

Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1 | 18133-61A01 Filter, Gas ( ) | Filter, Gas ( ) | |
2 | 18590-80C40 Sensor, Map ( ) | Sensor, Map ( ) | |
3 | 33834-99E00 Protector, Press (p Sensor L:90->50 ) | Protector, Press (p Sensor L:90->50 ) | |
4 | 37820-99E01 Switch Assy, Oil ( ) | Switch Assy, Oil ( ) | |
5-1 | 09355-35754-601 Hose (l:601->90 Model:01~09 ) | Hose (l:601->90 Model:01~09 ) | |
6 | 17812-90J00 Clip, Pressure S (<-09401-06405 ) | Clip, Pressure S (<-09401-06405 ) | |
7 | 01500-06127 Bolt ( ) | Bolt ( ) | |
8 | 13650-52G00 Sensor, Inlet Air Temp ( ) | Sensor, Inlet Air Temp ( ) | |
9 | 13655-87J00 Gromme, Air Temp ( ) | Gromme, Air Temp ( ) | |
10 | 09407-14407 .clamp, Harness (l:140) (~model:01 ) | .clamp, Harness (l:140) (~model:01 ) | |
11-1 | 34830-87JA0 Sensor Assy, Tem (model:99~02 ) | Sensor Assy, Tem (model:99~02 ) | |
11-2 | 34830-87J20 Sensor, Exhaust (model:03~09 ) | Sensor, Exhaust (model:03~09 ) | |
12 | 09280-09005 O Ring (model:99~02 ) | O Ring (model:99~02 ) | |
13 | 29404-93J10 Clamp (<-09404-06432 ) | Clamp (<-09404-06432 ) | |
14-1 | 02162-06127 Bolt ( ) | Bolt ( ) | |
14-2 | 01550-06127 Bolt (model:04~09 ) | Bolt (model:04~09 ) | |
15-1 | 34200-99E01 (w/monitor ) | (w/monitor ) | |
15-2 | 34200-93J00 Black Tach W/mo (black Df50:421637~ ) | Black Tach W/mo (black Df50:421637~ ) | |
15-3 | 34200-93J11 White Tach W/mo (white Df50:421637~ ) | White Tach W/mo (white Df50:421637~ ) | |
16-1 | 09471-12179 .bulb ( ) | .bulb ( ) | |
16-2 | 09471-12077 .bulb (for 34200-93j00 34200-93j11 ) | .bulb (for 34200-93j00 34200-93j11 ) | |
17 | 18595-87J00 Bracket, Pressur (model:01~09 ) | Bracket, Pressur (model:01~09 ) | |
19 | 34801-99E04 Sender Assy, Tri (model:03~09 ) | Sender Assy, Tri (model:03~09 ) | |
20 | 01550-06167 .bolt, Remocon Cable Holder ( ) | .bolt, Remocon Cable Holder ( ) | |
21-1 | 09407-14403 .clamp, Battery Cable ( ) | .clamp, Battery Cable ( ) | |
22 | 34800-90J02 Trim Gauge Df's (opt Model:03, 04 ) | Trim Gauge Df's (opt Model:03, 04 ) | |
23 | 09471-12180 .bulb ( ) | .bulb ( ) |
