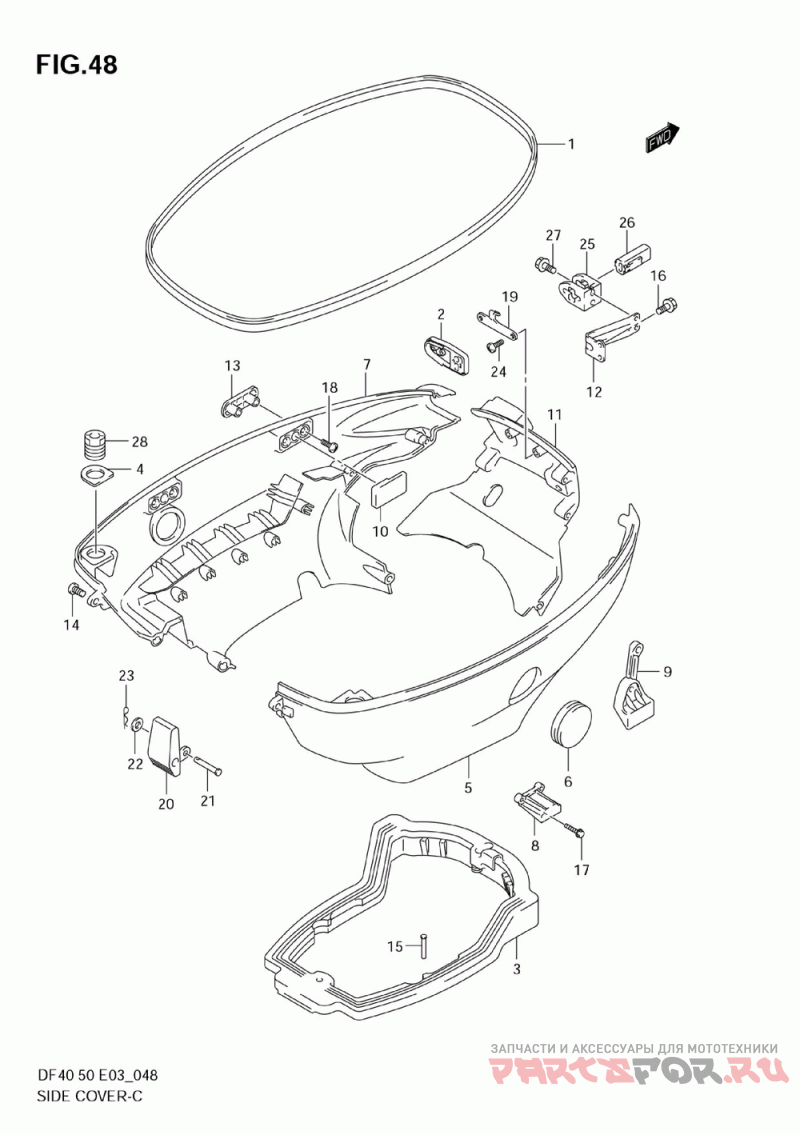

Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1 | 61112-87J01 Rubber, Engine L ( ) | Rubber, Engine L ( ) | |
2-1 | 61124-87J00 Grommet, Remocon (type:t Model:99~04 ) | Grommet, Remocon (type:t Model:99~04 ) | |
2-2 | 61124-87J11 Grommet, Remocon (type:qh Model:99~04 ) | Grommet, Remocon (type:qh Model:99~04 ) | |
3 | 61135-87J01 Seal, Side Cover ( ) | Seal, Side Cover ( ) | |
4 | 61681-87J00 Holder, Cushion (model:99, 00 ) | Holder, Cushion (model:99, 00 ) | |
5-1 | 61810-87810-0EP Cover Set, Side( (->61810-87810-0ep Cover Set, Side ) | Cover Set, Side( (->61810-87810-0ep Cover Set, Side ) | |
5-2 | 61810-87J01-0EP Cover Comp, Side (df40:780306~ Df50:780721~ ) | Cover Comp, Side (df40:780306~ Df50:780721~ ) | |
6 | 61817-99E00 Plug, Side Cover ( ) | Plug, Side Cover ( ) | |
7-1 | 61821-87J01-0EP Cover, Side Port (->61810-87810-0ep Cover Set, Side ) | Cover, Side Port (->61810-87810-0ep Cover Set, Side ) | |
7-2 | 61821-87J02-0EP Cover, Side Port (df40:780306~ Df50:780721~ ) | Cover, Side Port (df40:780306~ Df50:780721~ ) | |
8 | 61827-87J00 Holder, Side Cov ( ) | Holder, Side Cov ( ) | |
9 | 61827-87J10 Holder, Side Cov ( ) | Holder, Side Cov ( ) | |
10 | 61828-87J00 Cushion, Side Co ( ) | Cushion, Side Co ( ) | |
11 | 61830-87J01-0EP Panel, Front(bla ( ) | Panel, Front(bla ( ) | |
12 | 61833-87J00 Bracket, Front P ( ) | Bracket, Front P ( ) | |
13 | 61851-87J00 Protector, Side ( ) | Protector, Side ( ) | |
14-1 | 09136-06144 Screw (6x30) ( ) | Screw (6x30) ( ) | |
14-2 | 09136-06148 Screw (df40:780306~ Df50:780721~ ) | Screw (df40:780306~ Df50:780721~ ) | |
15 | 09409-05302-5PK Pin ( ) | Pin ( ) | |
16 | 01550-06127 Bolt ( ) | Bolt ( ) | |
17 | 01550-06257 ..bolt (df40:~031848 Df50:~031831 ) | ..bolt (df40:~031848 Df50:~031831 ) | |
18 | 03542-05169 Screw ( ) | Screw ( ) | |
19 | 61412-93E00 Hook, Engine Cov ( ) | Hook, Engine Cov ( ) | |
20 | 61610-93901 Fastener Comp ( ) | Fastener Comp ( ) | |
21 | 61616-93E00 Pin, Lever ( ) | Pin, Lever ( ) | |
22 | 09161-04012 Washer ( ) | Washer ( ) | |
23 | 09385-04003 Pin, Snap ( ) | Pin, Snap ( ) | |
24 | 03512-05169 Screw ( ) | Screw ( ) | |
25 | 67341-99E00 Holder, Remocon ( ) | Holder, Remocon ( ) | |
26 | 67343-99E00 Stopper, Remocon ( ) | Stopper, Remocon ( ) | |
27 | 01550-06207 Bolt ( ) | Bolt ( ) | |
28 | 72372-82000 Cushion, Back Do (~model:00 ) | Cushion, Back Do (~model:00 ) |
