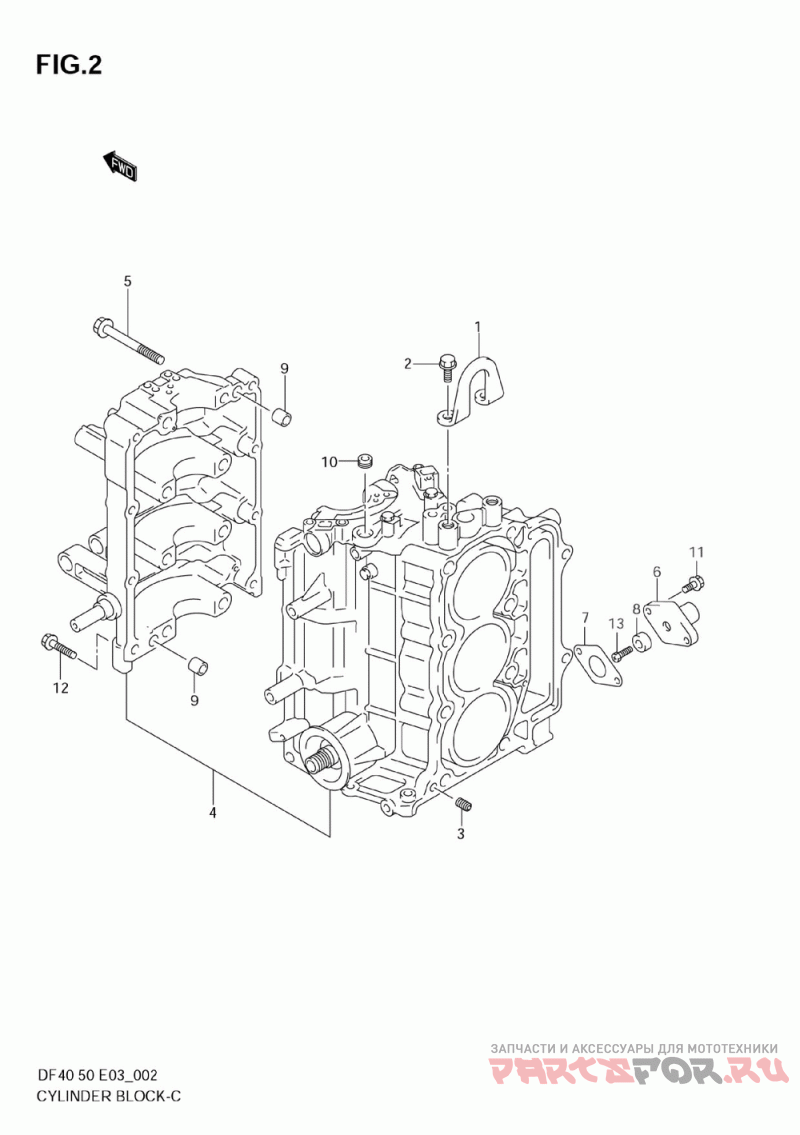

Блок цилиндров
Suzuki Marine DF40/DF50
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 11291-87J00-019 Hook, Engine(bla ( ) | Hook, Engine(bla ( ) | |
1-2 | 11291-87J00 Hook, Engine (model:04~09 ) | Hook, Engine (model:04~09 ) | |
2 | 01550-08207 ..bolt, Lower ( ) | ..bolt, Lower ( ) | |
4-1 | 11300-87J01-019 Block Assy, Cyli ( ) | Block Assy, Cyli ( ) | |
4-2 | 11301-87J10 Block Set, Cylin (model:03 ) | Block Set, Cylin (model:03 ) | |
4-4 | 11301-87J20 Block Set, Cylin (model:04 Inc.no.3, 5~13 ) | Block Set, Cylin (model:04 Inc.no.3, 5~13 ) | |
4-5 | 11301-87J30 Block Set, Cylin (model:05~09 Inc.no.3, 5~13 ) | Block Set, Cylin (model:05~09 Inc.no.3, 5~13 ) | |
5-1 | 09116-10127 Bolt ( ) | Bolt ( ) | |
5-3 | 11117-89J10 Bolt Comp, Crank (model:04~09 ) | Bolt Comp, Crank (model:04~09 ) | |
6-1 | 11261-87E10-0EP Cover, Protectio ( ) | Cover, Protectio ( ) | |
6-2 | 11261-87E10 Cover, Protectio (model:04~09 ) | Cover, Protectio (model:04~09 ) | |
7 | 11265-87E10 Gasket, Protecti ( ) | Gasket, Protecti ( ) | |
8 | 55321-87J00 Anode, Protectio ( ) | Anode, Protectio ( ) | |
9 | 09206-13019 .pin ( ) | .pin ( ) | |
10 | 09246-08004 .plug ( ) | .plug ( ) | |
11 | 01550-06207 Bolt ( ) | Bolt ( ) | |
12-1 | 01550-08407 Bolt ( ) | Bolt ( ) | |
12-2 | 09116-08124 Bolt, 8x43 (model:05~09 ) | Bolt, 8x43 (model:05~09 ) | |
13-1 | 09128-06021 Bolt (6x14) ( ) | Bolt (6x14) ( ) | |
13-2 | 09103-06281 Bolt (6x14) (model:06~09 ) | Bolt (6x14) (model:06~09 ) |
