Кронштейн транца для лодочных моторов Suzuki Marine DF300 (2009)

Москва и регионы России

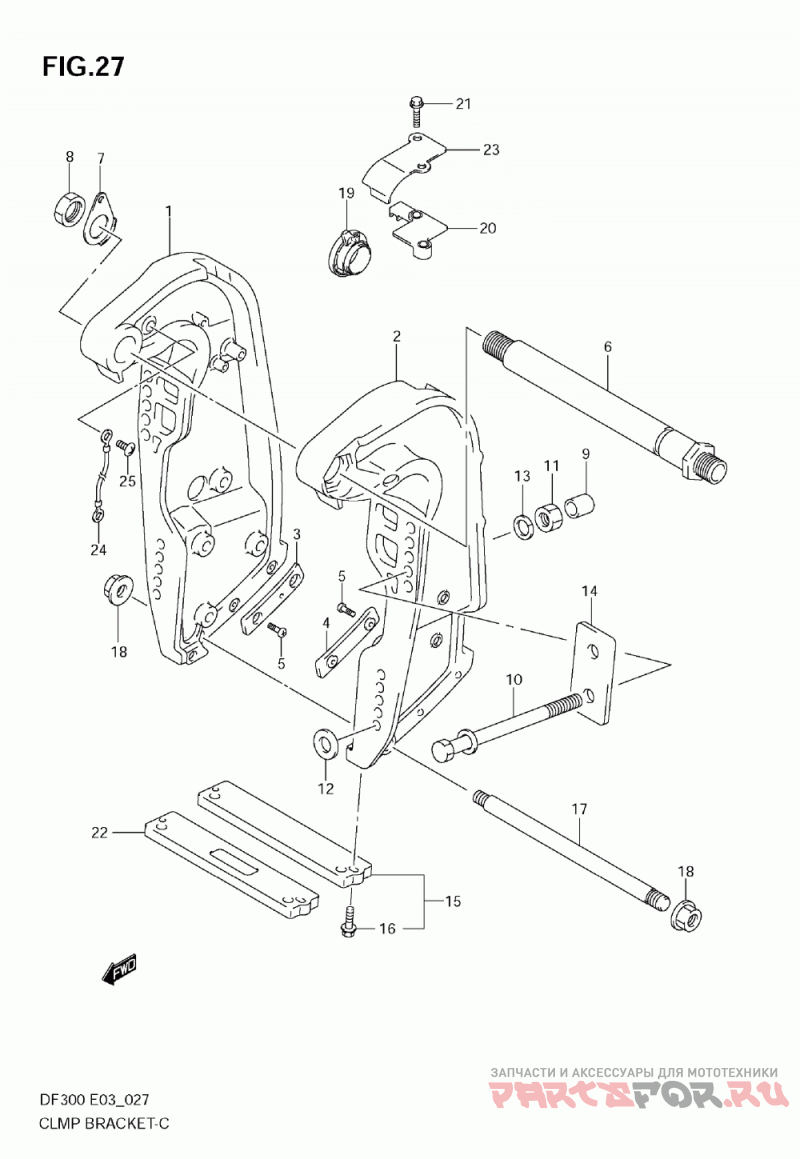

Кронштейн транца

Suzuki Marine DF300

Кронштейн транца

#

oem код

название

цена

1

41111-93J12-0EP

Bracket, Clamp S

Bracket, Clamp S

2

41121-93J04-0EP

Bracket, Clamp P

Bracket, Clamp P

3

Plate, Clamp Bra

Plate, Clamp Bra

4

Plate, Clamp Bra

Plate, Clamp Bra

5

Screw (6x10)

Screw (6x10)

6

Shaft Comp, Clam

Shaft Comp, Clam

7

Шайба

Шайба

8

Гайка

Гайка

9

Крышка

Крышка

10-1

Bolt, Transom

Bolt, Transom

10-2

Bolt, Transom (opt)

Bolt, Transom (opt)

10-3

Bolt, 115mm Long (opt)

Bolt, 115mm Long (opt)

11

Гайка

Гайка

12

Washer, Transom

Washer, Transom

13

Washer, Transom

Washer, Transom

14

Пластина

Пластина

15

Anode Set

Anode Set

16

.bolt (6x25)

.bolt (6x25)

17

Pin, Tilt Lock

Pin, Tilt Lock

18

Гайка

Гайка

19

Cam Assy, Tilt L

Cam Assy, Tilt L

20

Holder, Tilt Lim

Holder, Tilt Lim

21

Болт (6x25)

Болт (6x25)

22

Magniesium Anod (opt)

Magniesium Anod (opt)

23

Cover, Tilt Limi

Cover, Tilt Limi

24

Lead, Clamp To S

Lead, Clamp To S

1

41111-93J11-0EP

BRACKET, CLAMP STBD (BLACK)

BRACKET, CLAMP STBD (BLACK)

1

41111-93J14-0EP

BRACKET, CLAMP STBD (BLACK)

BRACKET, CLAMP STBD (BLACK)

2

41121-93J03-0EP

BRACKET, CLAMP PORT (BLACK)

BRACKET, CLAMP PORT (BLACK)

2

41121-93J06-0EP

BRACKET, CLAMP PORT

BRACKET, CLAMP PORT

2

41121-93J05-0EP

BRACKET, CLAMP PORT (BLACK)

BRACKET, CLAMP PORT (BLACK)

3

PLATE, CLAMP BRKT LOWER STBD

PLATE, CLAMP BRKT LOWER STBD

4

PLATE, CLAMP BRKT LOWER PORT

PLATE, CLAMP BRKT LOWER PORT

6

SHAFT, CLAMP BRKT

SHAFT, CLAMP BRKT

7

WASHER, CLAMP BRACKET SHAFT

WASHER, CLAMP BRACKET SHAFT

14

Пластина

Пластина

17

PIN, TILT LOCK

PIN, TILT LOCK
