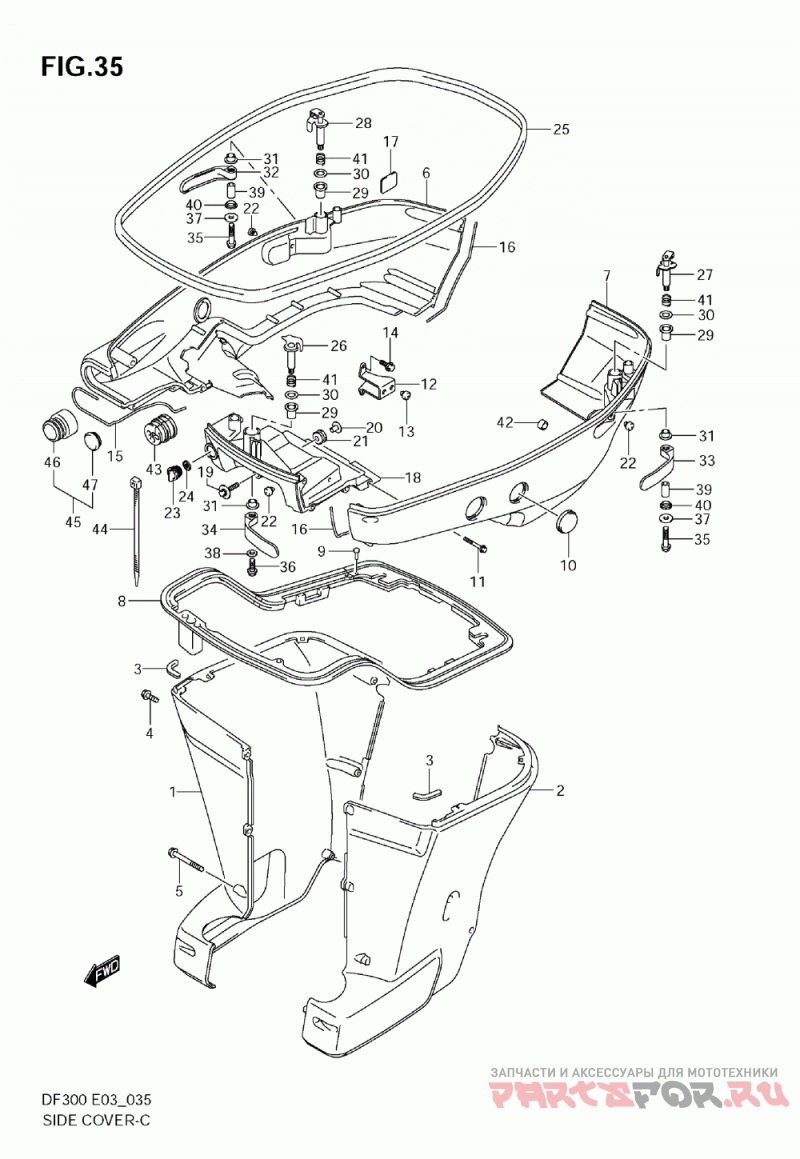

Suzuki Marine DF300

Suzuki Marine
#oem кодцена
1
61131-98J00-0EP
Cover, Oil Pan S
2
61141-98J00-0EP
Cover, Oil Pan P
3
61137-93J00
Cushion, Oil Pan
4
09139-06135
Screw, Oil Pan C
5
09139-06136
Screw, Oil Pan C
6
61811-98J01-0EP
Cover, Side Stbd
7
61821-98J01-0EP
Cover, Side Port
8
61134-93J10
Seal, Side Cover
9
09409-05302-5PK
Штифт
10
61817-93J00
Plug, Side Cover
11
09136-06148
Винт
12
61827-93J00
Holder, Side Cov
13
09321-10030
Cushion, Side Co
14
01550-08207
..bolt, Lower
15
61832-98J00
Seal, Front Pane
16
61812-98J00
Seal, Side Cover
17
61814-98J00
Protector, Side
18
61831-98J01-0EP
Панель передняя
19
09118-08127
Болт (8x40)
20
09169-08039
Шайба
21
09320-11013
Подушка
23
17913-93J00
Plug, Water
24
17914-93J00
Gasket, Water Pl
25
61112-98J00
Rubber, Side Cov
26
61630-98J00
Shaft Comp, Cove
27
63632-98J20
Engine, Cover Sh
28
63632-98J30
Shaft, Eng Cover
29
09306-17002
Bush, Engine Cover Hook Shaft
30
09160-17052
Washer, Engine Cover Hook
31
61636-98J00
Втулка
32
61633-98J10-0EP
Lever, Hook Rr S
33
61634-98J10-0EP
Lever, Hook Rr P
34
61645-98J00-0EP
Lever, Hook Fron
35
29103-93J20
Bolt ( (stbd / Port) )
36
29103-93J30
Bolt ( (front) )
37
09160-08152
Washer, Hook Lever Lower ( (8.5x33x1.5)(stbd / Port) )
38
09160-08082
Washer (8.5x16x1.2) ( (8.5x16x1.2)(front) )
39
61635-98J00
Проставка
40
61643-98J00
Втулка
41
61658-98J00
Spring, Hook Sha
42
09329-14002
Cushion, Side Cover
43
61124-98J00
Grommet, R/con C
44
09407-25402
.clamp
45
67300-93J00
Rigging Kit Ada (opt)
46
67361-93J00
Adapter, Hose (opt)
47
09250-21003
Plug (opt)
1
61131-93J00-0EP
COVER, OIL PAN STBD
2
61141-93J00-0EP
COVER, OIL PAN PORT
6
61811-98J10-0EP
COVER, SIDE STBD
8
61134-93J20
SEAL, SIDE COVER
12
61827-93J01
HOLDER, SIDE COVER
27
61640-98J00
SHAFT, COVER HOOK (PORT)
28
61650-98J00
SHAFT, COVER HOOK (STBD)
32
61633-98J00-0EP
LEVER, HOOK RR STBD
33
61634-98J00-0EP
LEVER, HOOK RR PORT
48
61140-93J00-0EP
KIT, OIL PAN COVER PROTECTOR
