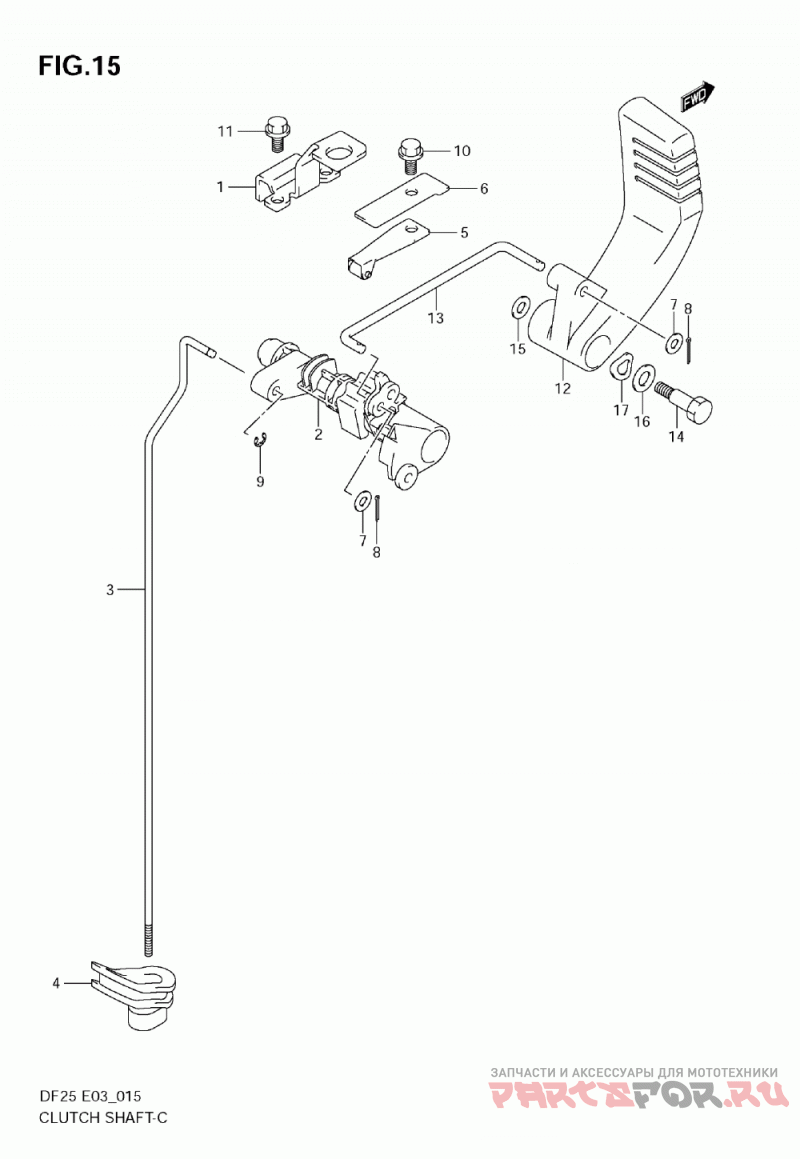

Вал сцепления

Suzuki Marine DF25R

Suzuki Marine
#oem кодцена
1
21126-95J00
HOLDER, CLUTCH SHAFT
2
21211-95J00
Вал
3
23111-95J00
ROD, CLUTCH (S)
5
23213-89J00
SPRING, NOTCH PLATE NO.1
5
23213-89J01
SPRING, NOTCH PLATE NO.1
6
23214-89J10
SPRING, NOTCH PLATE NO.2
7
09160-05029
WASHER, CLUTCH LEVER LINK (5.5X12X0.8)
8
09204-01002
PIN, CLUTCH LEVER LINK
9
09383-04002
E RING, CLUTCH ROD
10
01550-06127
BOLT, NOTCH PLATE SPRING
12
21111-95J00
LEVER, FRONT SHIFT
13
23115-95J00
LINK, SHIFT LEVER
14
09111-06069
BOLT, SHIFT LEVER
15
09160-06082
WASHER, SHIFT LEVER (6.5X13X1)
16
09160-08082
WASHER, SHIFT LEVER (8.5X16X1.2)
17
09164-08017
WASHER, SHIFT LEVER WAVE
