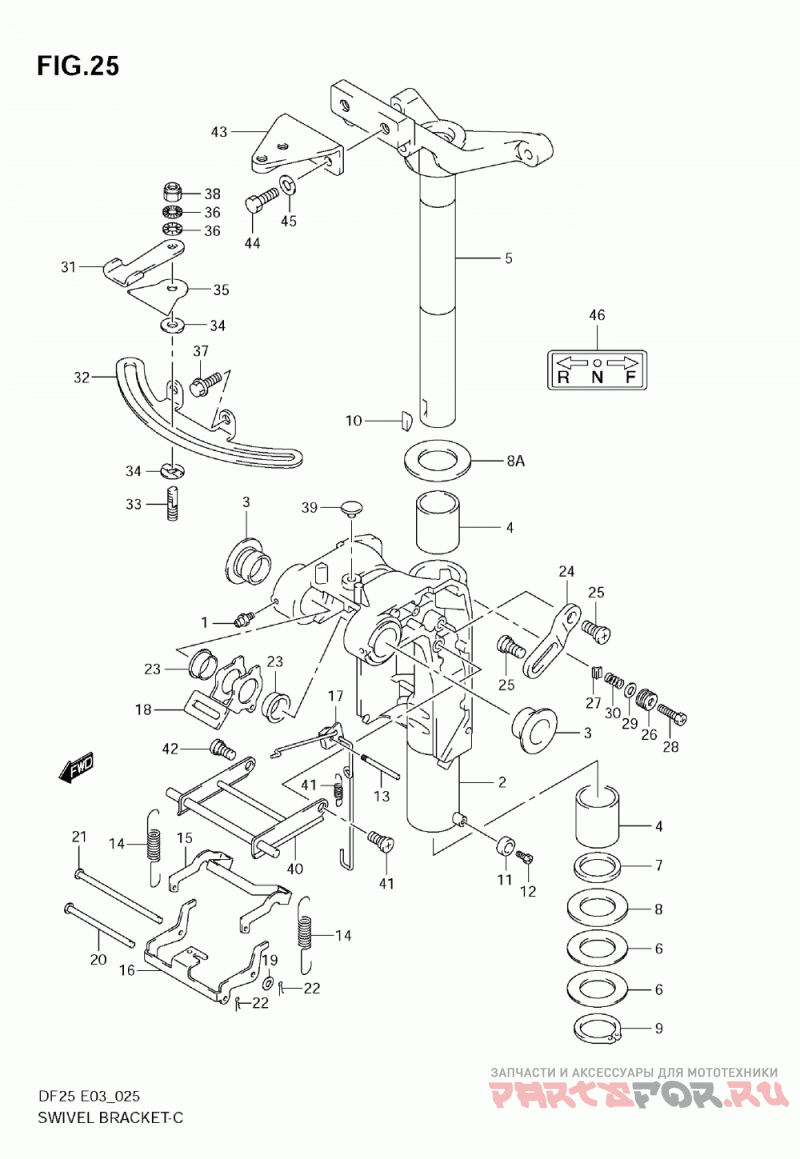

Поворотный кронштейн

Suzuki Marine DF25R

Suzuki Marine
#oem кодцена
1
22511-99010
NIPPLE, GREASE SWIVEL BRKT
1
22511-99011
NIPPLE, GREASE SWIVEL BRKT
3
43211-87J00
BUSH, SWIVEL BRACKET
4
43711-89J10
BUSH, STEERING
5
43750-95J10-0EP
BRACKET, STEERING (L) (BLACK)
5
43750-95J00-0EP
BRACKET, STEERING (S) (BLACK)
6
09181-39001
SHIM, SWIVEL BRACKET (39.5X64X0.3)
7
09282-39001
SEAL, SWIVEL BRACKET (39.2X51X5)
8
09160-39001
WASHER, PILOT SHAFT (39.5X64X1)
9
09380-38003
CIRCLIP, PILOT SHAFT LOWER
11
55321-87J00
ANODE, PROTECTION
12
09103-06281
Болт
13
41225-94502
PIN, RELEASE ARM
13
41225-94501
PIN, RELEASE ARM
14
45211-95J00
SPRING, REVERSE LOCK
17
45250-95J00
LINK, RELEASE
19
09160-06082
WASHER, REV LOCK ARM LINK PIN (6.5X13X1.0)
20
09200-06069
PIN, REV LOCK ARM
22
09204-01002
PIN, REV LOCK ARM COTTER
23
09306-22006
BUSH, RELEASE LEVER
24
41223-95J00
ARM, TILT STOP
25
09106-10078
BOLT, TILT STOP ARM
26
43412-93900
COVER, STEERING ADJUSTER
29
09160-08091
WASHER, STRG ADJ (8.5X14X1.0)
30
29440-93J00
SPRING, STEERING ADJUSTER
31
43411-95J00
LEVER, STEERING ADJUSTER
32
43415-95J00
PLATE, STEERING ADJUSTER
33
43512-95J00
SHAFT, STEERING ADJUSTER
34
43514-95J00
WASHER, FRICTION PLATE
35
43514-95J10
PLATE, STRG ADJ FRICTION
36
43516-89J00
WASHER, STEERING ADJUSTER
37
09116-08137
BOLT, STRG ADJ PLATE (8X22)
38
09159-08131
NUT, STEERING ADJUSTER
40
45710-95J01
ARM, SHALLOW WATER DRIVE
40
45710-95J00
ARM, SHALLOW WATER DRIVE
41
45722-95J00
SPRING, SHALLOW WA DRIVE ARM
43
43755-95J01
ATTACHMENT, STEERING BRACKET
43
43755-95J00
ATTACHMENT, STEERING BRACKET
44
09100-10270
BOLT, STRG BRKT ATTACHMENT (10X25)
45
09162-10005
WASHER, LOCK (10.2X18.4X2.5)
46
21131-96010
MARK, CLUTCH SHIFT
