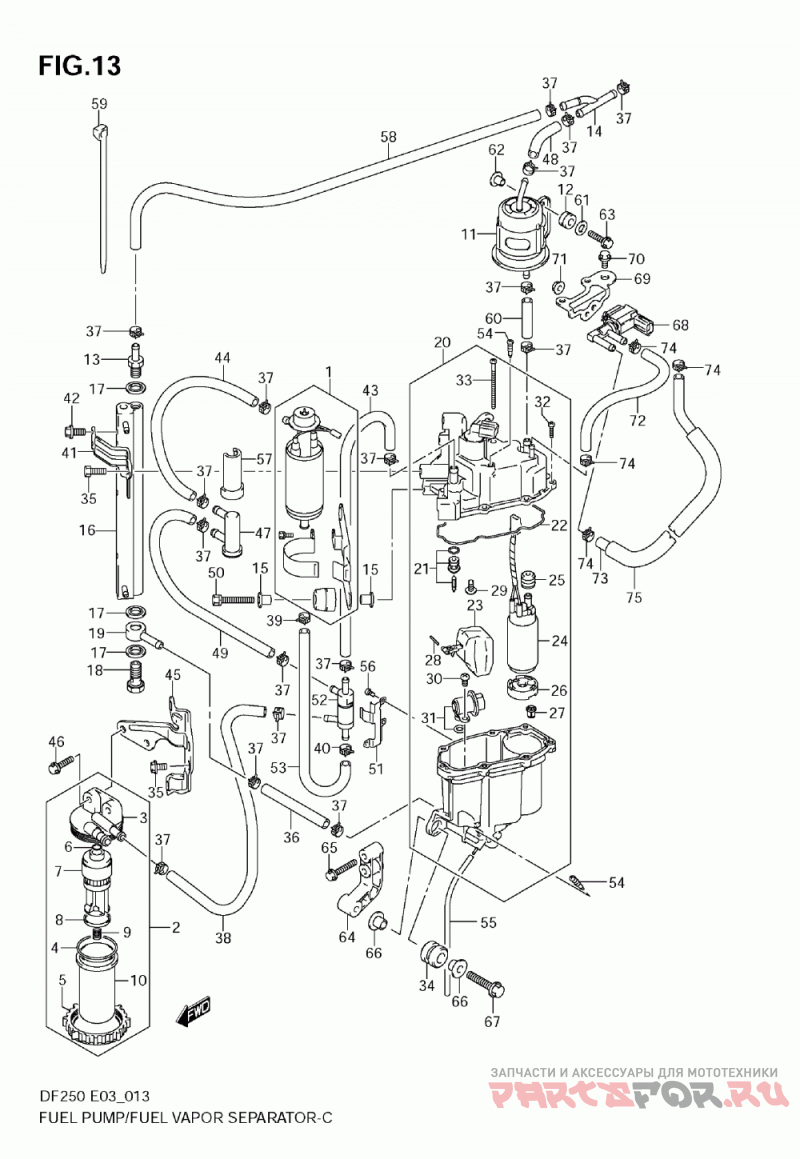

Отделитель паров топлива и топливный насос

Suzuki Marine DF250

Отделитель паров топлива и топливный насос

#

oem код

название

цена

1

PUMP ASSY, FUEL (L)

PUMP ASSY, FUEL (L)

2

FILTER, FUEL (L)

FILTER, FUEL (L)

3

CAP, FILTER

CAP, FILTER

4

O RING, NO.1

O RING, NO.1

5

NUT, FILTER

NUT, FILTER

6

O RING, NO.2

O RING, NO.2

7

Фильтр топливный

Фильтр топливный

8

FLOAT, FILTER

FLOAT, FILTER

9

SPRING, FILTER

SPRING, FILTER

10

Крышка

Крышка

11

FILTER, FUEL (EPI)

FILTER, FUEL (EPI)

12

CUSHION, FUEL FILTER

CUSHION, FUEL FILTER

13

UNION, FUEL HOSE (H)

UNION, FUEL HOSE (H)

14

UNION, 3 WAY

UNION, 3 WAY

15

WASHER, FUEL PUMP

WASHER, FUEL PUMP

16

COOLER, FUEL

COOLER, FUEL

17

GASKET, FUEL COOLER UNION

GASKET, FUEL COOLER UNION

18

BOLT, FUEL COOLER UNION (12X27)

BOLT, FUEL COOLER UNION (12X27)

19

UNION, FUEL COOLER

UNION, FUEL COOLER

20

SEPARATOR ASSY, FUEL VAPOR

SEPARATOR ASSY, FUEL VAPOR

20

SEPARATOR ASSY, FUEL VAPOR

SEPARATOR ASSY, FUEL VAPOR

20

SEPARATOR ASSY, FUEL VAPOR

SEPARATOR ASSY, FUEL VAPOR

21

VALVE ASSY, NEEDLE

VALVE ASSY, NEEDLE

22

GASKET, SEPARATOR

GASKET, SEPARATOR

23

Поплавок

Поплавок

24

PUMP ASSY, FUEL (H)

PUMP ASSY, FUEL (H)

24

PUMP ASSY, FUEL (H)

PUMP ASSY, FUEL (H)

25

BUSH, FUEL PUMP

BUSH, FUEL PUMP

26

SPACER, FUEL PUMP

SPACER, FUEL PUMP

27

FILTER, FUEL PUMP

FILTER, FUEL PUMP

28

Палец

Палец

29

Винт

Винт

30

SCREW, REGULATOR

SCREW, REGULATOR

31

REGULATOR, FUEL PRESSURE

REGULATOR, FUEL PRESSURE

32

Винт

Винт

34

CUSHION, FUEL VAPOR SEPARATOR

CUSHION, FUEL VAPOR SEPARATOR

35

BOLT, COOLER BRACKET

BOLT, COOLER BRACKET

36

09356-75137-600

Шланг топливный

Шланг топливный

37

Зажим

Зажим

37

Зажим

Зажим

38

HOSE, FUEL (L)

HOSE, FUEL (L)

38

HOSE, FUEL (L)

HOSE, FUEL (L)

38

HOSE, FUEL (L)

HOSE, FUEL (L)

39

Зажим

Зажим

40

Зажим

Зажим

42

BOLT, FUEL COOLER

BOLT, FUEL COOLER

43

HOSE, FUEL (H)

HOSE, FUEL (H)

43

HOSE, FUEL (H)

HOSE, FUEL (H)

44

HOSE, FUEL (H)

HOSE, FUEL (H)

44

HOSE, FUEL (H)

HOSE, FUEL (H)

45

BRACKET, FUEL FILTER

BRACKET, FUEL FILTER

45

BRACKET, FUEL FILTER

BRACKET, FUEL FILTER

46

BOLT FUEL FILTER (L)

BOLT FUEL FILTER (L)

47

FILTER, FUEL (L)

FILTER, FUEL (L)

49

HOSE, FUEL (H)

HOSE, FUEL (H)

49

HOSE, FUEL (H)

HOSE, FUEL (H)

50

BOLT, FUEL PUMP

BOLT, FUEL PUMP

51

BRACKET, CHECK VALVE

BRACKET, CHECK VALVE

52

Клапан

Клапан

53

HOSE, FUEL (L)

HOSE, FUEL (L)

53

HOSE, FUEL (L)

HOSE, FUEL (L)

54

Винт

Винт

55

HOSE, DRAIN

HOSE, DRAIN

56

Винт

Винт

57

COVER, FUEL FILTER

COVER, FUEL FILTER

58

HOSE, FUEL (H)

HOSE, FUEL (H)

58

HOSE, FUEL (H)

HOSE, FUEL (H)

59

CLAMP, FUEL FILTER

CLAMP, FUEL FILTER

61

WASHER, FUEL FILTER (EPI) PLAIN (6.5X18X1.6)

WASHER, FUEL FILTER (EPI) PLAIN (6.5X18X1.6)

63

BOLT, FUEL FILTER (EPI)

BOLT, FUEL FILTER (EPI)

64

BRACKET, VAPOR SEPARATOR

BRACKET, VAPOR SEPARATOR

65

BOLT, VAPOR SEPARATOR BRACKET

BOLT, VAPOR SEPARATOR BRACKET

66

WASHER, FUEL VAPOR SEPARATOR

WASHER, FUEL VAPOR SEPARATOR

67

BOLT, VAPOR SEPARATOR

BOLT, VAPOR SEPARATOR

68

VALVE ASSY, EVAP PURGE

VALVE ASSY, EVAP PURGE

68

VALVE ASSY, EVAP PURGE

VALVE ASSY, EVAP PURGE

69

BRACKET, PURGE VALVE

BRACKET, PURGE VALVE

70

BOLT, PURGE VALVE BRACKET

BOLT, PURGE VALVE BRACKET

71

NUT, PURGE VALVE

NUT, PURGE VALVE

72

09352-50823-600

HOSE, EVAP (VST TO VALVE)

HOSE, EVAP (VST TO VALVE)

74

Зажим

Зажим

74

Зажим

Зажим

75

PROTECTOR, EVAP HOSE (L:450)

PROTECTOR, EVAP HOSE (L:450)
