Поворотный кронштейн для лодочных моторов Suzuki Marine DF25 (2009)

Москва и регионы России

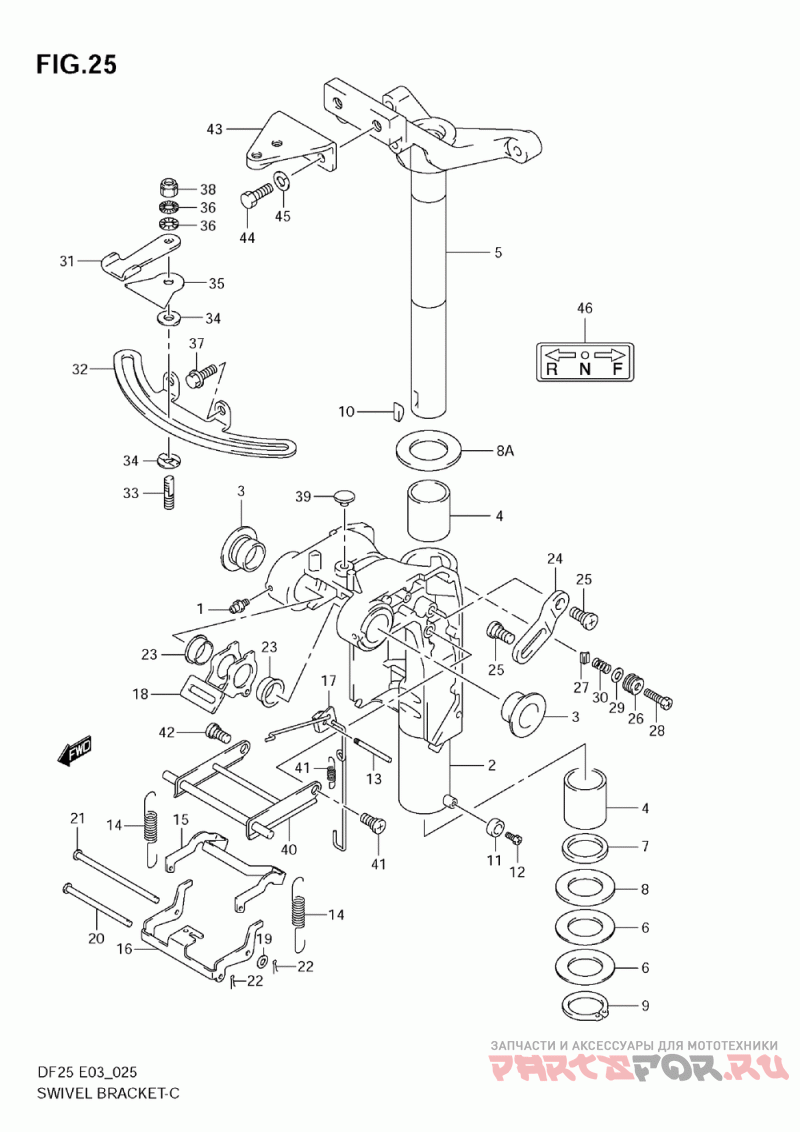

Поворотный кронштейн

Suzuki Marine DF25

Поворотный кронштейн

#

oem код

название

цена

1

Ниппель

Ниппель

2-1

43111-95J00-0EP

Bracket, Swivel(

Bracket, Swivel(

2-2

43111-95J10-0EP

Bracket, Swivel(

Bracket, Swivel(

3

Bush, Swivel Bra

Bush, Swivel Bra

4

Bush, Steering

Bush, Steering

5-1

43750-95J00-0EP

Bracket Comp, St

Bracket Comp, St

5-2

43750-95J10-0EP

Bracket, Steerin

Bracket, Steerin

6

Shim ( (39.5x64x0.3) )

Shim ( (39.5x64x0.3) )

7

Oil Seal 39x51x ( (39.2x51x5) )

Oil Seal 39x51x ( (39.2x51x5) )

8

Washer (39.5x64x1.0) ( (39.5x64x1) )

Washer (39.5x64x1.0) ( (39.5x64x1) )

8A

Plate, Steering ( (39.5x71x1) )

Plate, Steering ( (39.5x71x1) )

9

Пружинное стопорное кольцо

Пружинное стопорное кольцо

10

Шпонка

Шпонка

11

Anode, Protectio

Anode, Protectio

12

Болт (6х14)

Болт (6х14)

13

Pin, Tilt Lock S

Pin, Tilt Lock S

14

Spring, Reverse

Spring, Reverse

15

Arm, Reverse Loc

Arm, Reverse Loc

16

Link, Reverse Lo

Link, Reverse Lo

17

Link Comp, Relea

Link Comp, Relea

18

Lever, Release

Lever, Release

19

.washer, Clutch Lever ( (6.5x13x1.0) )

.washer, Clutch Lever ( (6.5x13x1.0) )

20

Pin, Rev Lock Arm

Pin, Rev Lock Arm

21

Pin, Rev Lock Arm Link

Pin, Rev Lock Arm Link

22

Шплинт

Шплинт

23

Втулка

Втулка

24

Arm, Tilt Stop

Arm, Tilt Stop

25

Bolt, 10x28.5

Bolt, 10x28.5

26

Cover Adjust

Cover Adjust

27

Adjuster, Steeri

Adjuster, Steeri

28

Bolt L:27 (sus)

Bolt L:27 (sus)

29

Washer, Steering Adjuster

Washer, Steering Adjuster

30

Spring, Steering

Spring, Steering

31

Lever, Steering (except Type:r)

Lever, Steering (except Type:r)

32

Plate, Steering (except Type:r)

Plate, Steering (except Type:r)

33

Shaft, Steering (except Type:r)

Shaft, Steering (except Type:r)

34

Washer, Strg Adj (except Type:r)

Washer, Strg Adj (except Type:r)

35

Plate, Steering (except Type:r)

Plate, Steering (except Type:r)

36

Washer, Steering (except Type:r)

Washer, Steering (except Type:r)

37

Bolt, 8x22 (except Type:r <-09116-08103 )

Bolt, 8x22 (except Type:r <-09116-08103 )

38

Nut, Steering Adjuster (except Type:r)

Nut, Steering Adjuster (except Type:r)

39

Plug, Steering Adjuster (type:r)

Plug, Steering Adjuster (type:r)

40

Arm Comp, Shallo

Arm Comp, Shallo

41

Spring, Shallow

Spring, Shallow

43

Attachment, Stee (type:r)

Attachment, Stee (type:r)

44

..bolt (type:r (10x25) )

..bolt (type:r (10x25) )

45

Washer (type:r)

Washer (type:r)

46

Mark, Clutch Shi (except Type:r)

Mark, Clutch Shi (except Type:r)

1

43111-97J00-0EP

BRACKET, SWIVEL PORT (BLACK)

BRACKET, SWIVEL PORT (BLACK)

3

BUSH, STEERING UPPER

BUSH, STEERING UPPER

4

BOLT, SWIVEL BRACKET

BOLT, SWIVEL BRACKET

5

BOLT, SWIVEL SHAFT

BOLT, SWIVEL SHAFT

6

NUT, SWIVEL SHAFT

NUT, SWIVEL SHAFT

8

WASHER, TILT FRICTION (8.5X23X1.5)

WASHER, TILT FRICTION (8.5X23X1.5)

9

BLOCK, THRUST

BLOCK, THRUST

9

BLOCK, THRUST

BLOCK, THRUST

10

MOUNT, LOWER THRUST

MOUNT, LOWER THRUST

11

BRACKET, STOPPER

BRACKET, STOPPER

12

SHAFT, STOPPER

SHAFT, STOPPER

13

SPRING, STOPPER

SPRING, STOPPER

14

PLATE, STEERING ADJUSTER

PLATE, STEERING ADJUSTER

14

PLATE, STEERING ADJUSTER

PLATE, STEERING ADJUSTER

15

RUBBER, STEERING ADJUSTER

RUBBER, STEERING ADJUSTER

15

RUBBER, STEERING ADJUSTER

RUBBER, STEERING ADJUSTER

16

BOLT, STEERING ADJUSTER

BOLT, STEERING ADJUSTER

17

SPRING, STEERING ADJUSTER

SPRING, STEERING ADJUSTER

18

LEVER, TILT LOCK

LEVER, TILT LOCK

19

BOLT, TILT LOCK LEVER

BOLT, TILT LOCK LEVER

20

SPACER, TILT LOCK LEVER

SPACER, TILT LOCK LEVER

21

SPRING, TILT LOCK

SPRING, TILT LOCK

21

SPRING, TILT LOCK

SPRING, TILT LOCK

22

43111-97J10-0EP

BRACKET, SWIVEL

BRACKET, SWIVEL

23

43121-97J10-0EP

COVER, SWIVEL BRACKET

COVER, SWIVEL BRACKET

24

BOLT, SWIVEL BRACKET

BOLT, SWIVEL BRACKET

25

43110-97J10-0EP

BRACKET ASSY, SWIVEL

BRACKET ASSY, SWIVEL
