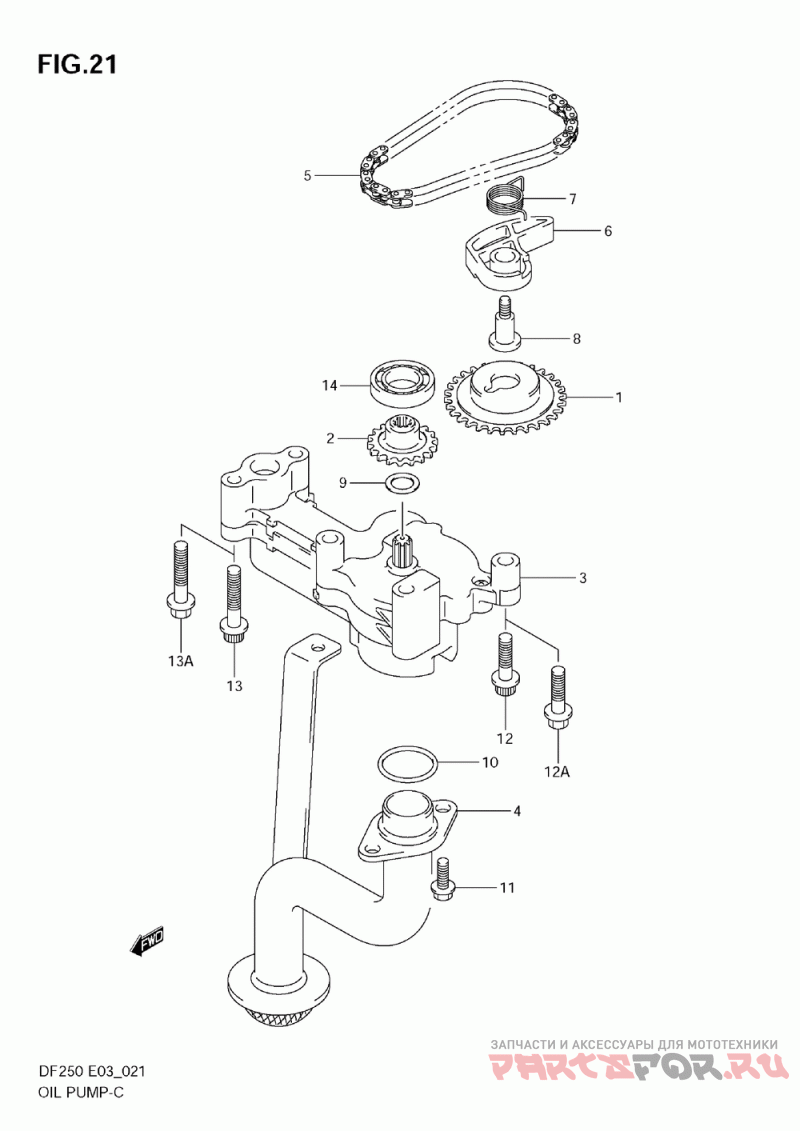

Масляный насос для лодочных моторов Suzuki Marine DF200/DF225/DF250 (2009)

oem код

название

цена

Sprocket, Oil Pu

Sprocket, Oil Pu

3-1

Pump Assy, Oil (->16400-93j02 Used W/01550-0885a )

Strainer Comp, O

Chain, Oil Pump

Tensioner, Oil P

Spring, Oil Pump

Bolt, Oil Pump T

Washer (12x20x0.5)

10-1

O Ring (d:2.4, Id:21.8) (df200t:680909~ Df250s )

Болт

12A

Bolt, Oil Pump (s) (df200t:780655~ Df250s )

13-1

Болт

13-2

Bolt (model:07 Df250z:~780343 )

13A-1

Bolt, Oil Pump (l) (df200t:881427~ Df250z:880640~ )

13A-3

.bolt (df200t:881427~ Df250z:880640~ )

.bearing
