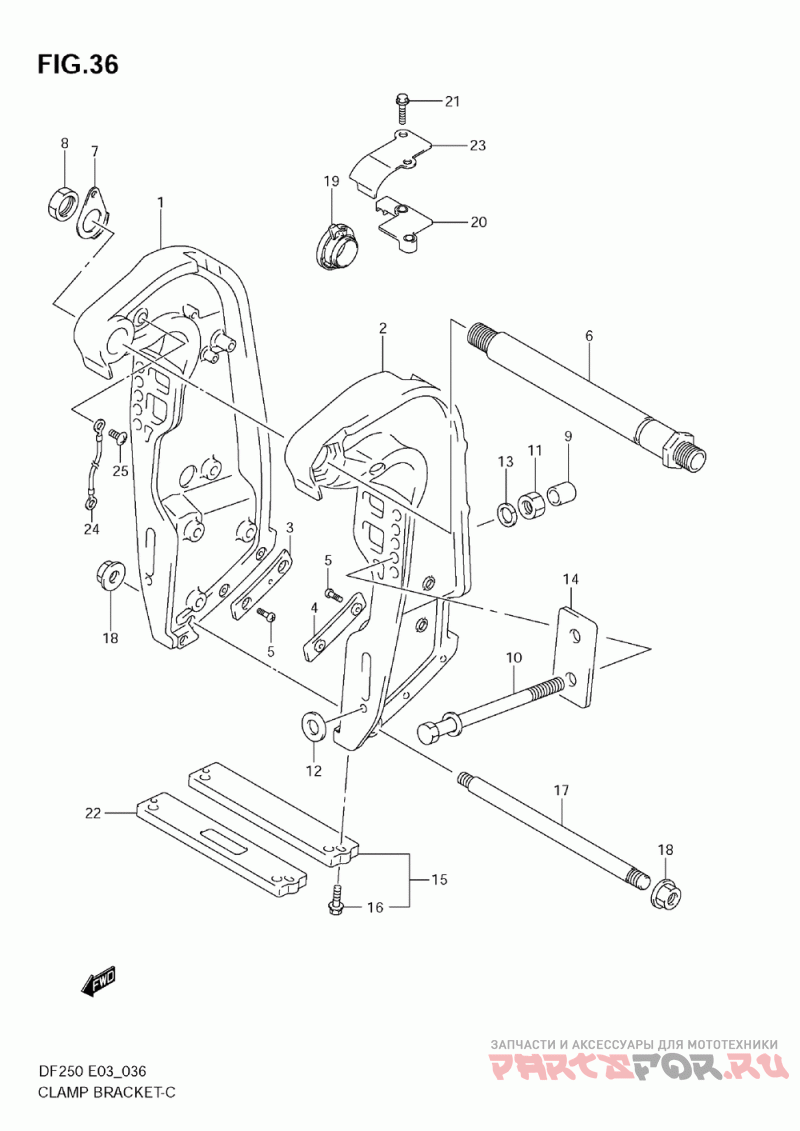

Кронштейн транца

Suzuki Marine DF200/DF225/DF250

Suzuki Marine
#oem кодцена
1-2
41111-93J02-0EP
Bracket, Comp St (df200/225 Df250z:421140~ )
1-4
41111-93J12-0EP
Bracket, Clamp S (df200t:680188~ Used W/41117-93j01 )
2-2
41121-93J04-0EP
Bracket, Clamp P (df200/225 Df250z:421140~ )
3-1
41117-93J01
Plate, Clamp Bra (df200/225 Df250z:421140~ )
4-1
41122-93J01
Plate, Clamp Bra (df200/225 Df250z:421140~ )
5
09125-06063
Screw (6x10) (df200t:680188~ Df250z:680144~ )
6-1
41130-93J00
Shaft Comp, Clam
6-2
41130-93J02
Shaft Comp, Clam (df200t:510464~ 43211-93j00(2pc) )
7-1
41135-93J00
Washer, Clamp Br
7-2
41135-93J10
Washer (model:06~09)
8
09159-22006
Гайка
9
41153-93J00
Крышка
10-1
09100-12086
Bolt, Transom
10-2
09100-12092
Bolt, Transom (opt)
10-3
09100-12085
Bolt, 115mm Long (opt)
11
09159-12062
Гайка
12
09160-13017
Washer, Transom
13
09160-13016
Washer, Transom
14
41155-93J01
Пластина
15
55320-94900
Anode Set
16
09116-06121
.bolt (6x25)
17
45421-87D01
Pin, Tilt Lock
18
09159-14020
Гайка
19
48140-93J00
Cam Assy, Tilt L
20
48144-93J00
Holder, Tilt Lim
21-1
01550-06207
Болт
21-2
09103-06278
Bolt (6x25) (df200t:510780~ Df250z:510474~ )
22
55321-94910
Magniesium Anod (opt)
23
48145-93J00
Cover, Tilt Limi (df200t:510780~ Df250z:510474~ )
24
36894-87D00
Lead, Clamp To S (df200t:680188~ Df250z:680144~ )
