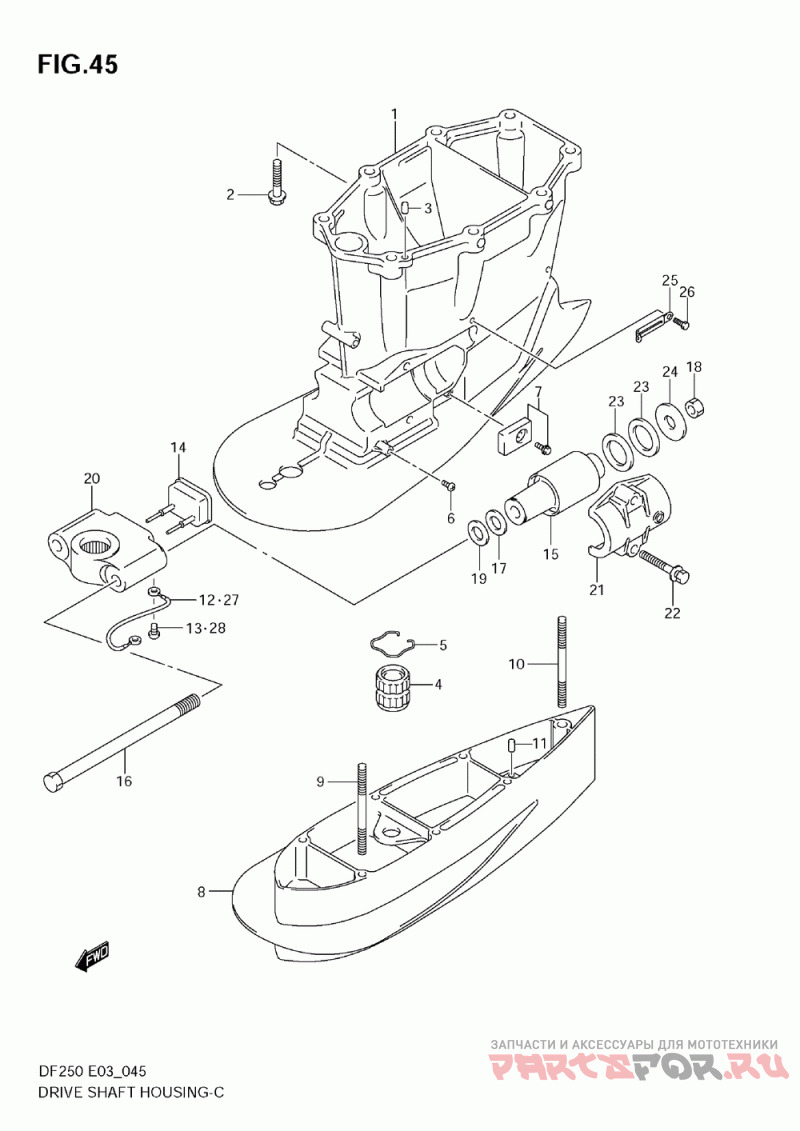

Корпус ведущего вала (нога)

Suzuki Marine DF200/DF225/DF250

Suzuki Marine
#oem кодцена
1-1
52111-93J03-0EP
Деталь Housing, Drive S
1-3
52111-93J11-0EP
Деталь Housing, Drive S (df200t:680188~ Df250z:680144~ )
2
09116-10139
Деталь Bolt, Drive Shaf
3
09202-08006
Штифт
4
57130-87D10
Деталь Bush, Drive Shaf
5
09387-38002
Деталь Ring, Drive Shaft Bush Snap
6
09125-06063
Деталь Screw (6x10) (df200t:680188~ Df250z:680144~ )
7
55320-95311
Деталь Zinc Set, Protec
8
52131-93J00-0EP
Деталь Case, Extension( (type:xx)
9
09108-10115
Деталь Bolt, Stud (type:xx)
10
09108-12013
Деталь Bolt, Extension (type:xx)
12
36894-87D00
Деталь Lead, Clamp To S (df200t:680188~ Df250z:680144~ )
14
54151-93J00
Деталь Mount, Lower Thr ( Refer To Fig.46(h- 6) For Df250s, Df200tl )
15
54160-93J01
Деталь Mount Comp, L0we
16
09100-14004
Деталь Bolt, Upper Moun
17
09160-16050
Деталь Washer, Lower Mo
18
09159-14026
Деталь Nut, Upper Mount
20
54211-93J00
Деталь Bracket, Lower M
21
54221-93J00
Деталь Cover, Lower Mou
22
09116-10136
Деталь Bolt, Oil Pan No
23
54165-98J00
Деталь Stopper, Lower T (<-54165-87d00)
24
09160-14066
Деталь Washer, Rev Stop
25
29404-93J10
Деталь Clamp (df200t:510092~ Df250z:510048~ )
26-1
09100-06131
Деталь .bolt (6x12) (df200t:510092~ Df250z:510048~ )
26-2
29103-93J00
Деталь Bolt (model:06~09)
