Корпус дросселя ( DF225, DF250) для лодочных моторов Suzuki Marine DF200/DF225/DF250 (2009)

Москва и регионы России

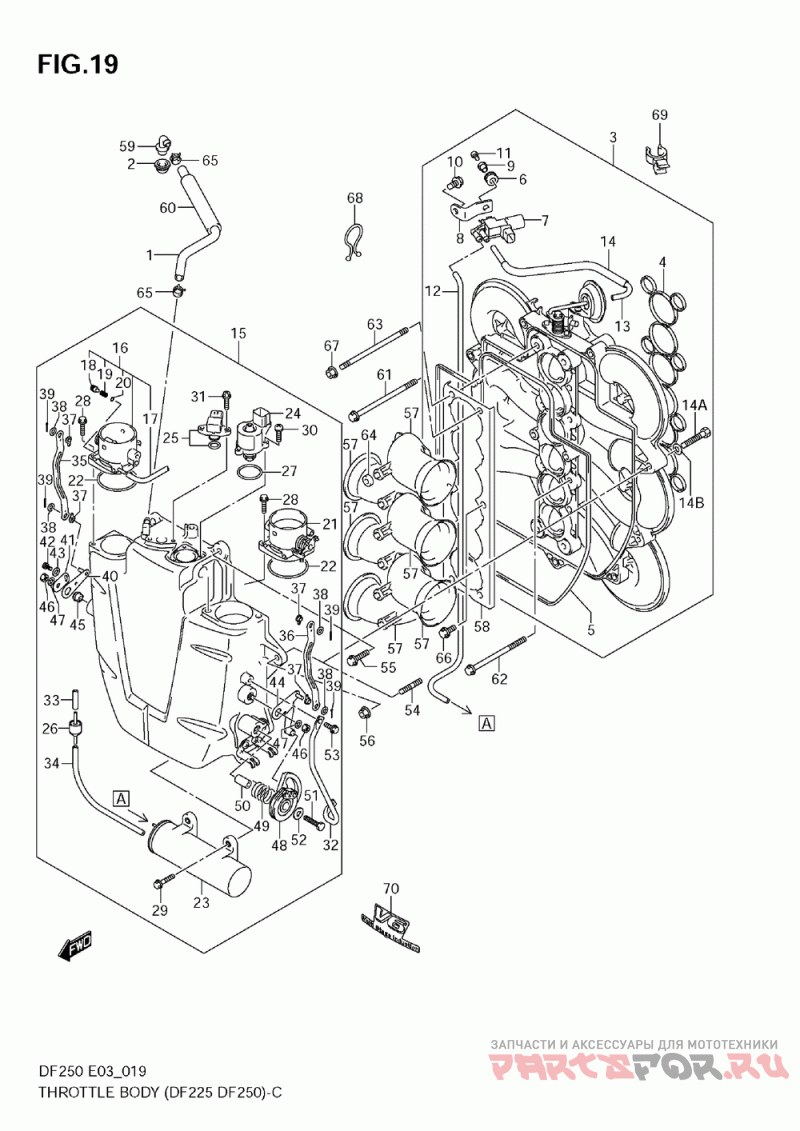

Корпус дросселя ( DF225, DF250)

Suzuki Marine DF200/DF225/DF250

Корпус дросселя ( DF225, DF250)

#

oem код

название

цена

1

Hose, Pcv (df250t:~421902 Df250z:~421255 )

Hose, Pcv (df250t:~421902 Df250z:~421255 )

2

Seal, Pcv Valve (df250t:~421902 Df250z:~421255 )

Seal, Pcv Valve (df250t:~421902 Df250z:~421255 )

3-1

Коллектор

Коллектор

4

Gasket, Collecto

Gasket, Collecto

5

Gasket, Collecto

Gasket, Collecto

6

Cushion, Vacuum

Cushion, Vacuum

7

Valve, Vacuum Sw

Valve, Vacuum Sw

8

Bracket, Vacuum

Bracket, Vacuum

9

.washer, Vacuum Valve

.washer, Vacuum Valve

10

.bolt, Remocon Cable Holder

.bolt, Remocon Cable Holder

11

.screw, Vacuum Valve

.screw, Vacuum Valve

12

09355-35754-00B

Hose, Vacuum (l:2000->610)

Hose, Vacuum (l:2000->610)

13

09355-35754-601

Hose (l:600->160)

Hose (l:600->160)

14

Protector, Evap (l:290->140)

Protector, Evap (l:290->140)

14A

Bolt, Collector (model:08~09)

Bolt, Collector (model:08~09)

14B

Washer (model:08~09)

Washer (model:08~09)

15-1

Cover Comp, Coll (df250 ->13140-93jv4 )

Cover Comp, Coll (df250 ->13140-93jv4 )

15-2

Cover Comp, Coll (df225t ->13140-93jv2 )

Cover Comp, Coll (df225t ->13140-93jv2 )

15-3

Cover, Collector (model:06~09)

Cover, Collector (model:06~09)

16-1

Throtle Body As (->13310-93jv0)

Throtle Body As (->13310-93jv0)

16-2

Body Assy, Throt (model:06~09)

Body Assy, Throt (model:06~09)

17

Hose, Bypass Air

Hose, Bypass Air

18

Adjust Screw

Adjust Screw

19

Spring, Bypass A

Spring, Bypass A

20

Кольцо

Кольцо

21

Body Assy, Throt

Body Assy, Throt

22

Gasket, Throttle

Gasket, Throttle

23

Chamber Comp, Va

Chamber Comp, Va

24

Клапан

Клапан

25

Датчик давления

Датчик давления

26

.valve, Check

.valve, Check

27

O-ring, Iac Valv

O-ring, Iac Valv

28

Болт

Болт

29

Болт

Болт

30

Винт

Винт

31

.screw, Pressure Sensor

.screw, Pressure Sensor

32

Guard, Throttle

Guard, Throttle

35

Arm, Link No.1

Arm, Link No.1

37

Grommet, Link

Grommet, Link

38

Washer, Link

Washer, Link

39

Штифт

Штифт

40

Lever, No.1

Lever, No.1

41

Lever, No.2

Lever, No.2

42

Винт

Винт

43

.washer, 5.5x16x1.20

.washer, 5.5x16x1.20

44

Lever, Link

Lever, Link

45

Spacer, Link Sha

Spacer, Link Sha

46

Nut, Link Shaft

Nut, Link Shaft

47

Washer, Link Sha

Washer, Link Sha

48

Cam, Throttle

Cam, Throttle

49

Пружина

Пружина

50

Spacer, Throttle

Spacer, Throttle

51

Болт

Болт

52

.washer (6.5x18x1.5)

.washer (6.5x18x1.5)

53

.bolt, Remocon Cable Holder

.bolt, Remocon Cable Holder

54

Bolt, Stud (model:04~07)

Bolt, Stud (model:04~07)

55

Болт

Болт

56

..nut

..nut

57

Funnel, Collecto

Funnel, Collecto

58

Bracket, Collect

Bracket, Collect

59

Valve, Pcv (df250t:~421902 Df250z:~421255 )

Valve, Pcv (df250t:~421902 Df250z:~421255 )

60

Protector, Breat (df250t:~421902 Df250z:~421255 )

Protector, Breat (df250t:~421902 Df250z:~421255 )

61

Bolt, Collector No.2

Bolt, Collector No.2

62

Bolt, Collector No.1

Bolt, Collector No.1

63

Bolt, Collector

Bolt, Collector

64

Подушка

Подушка

65

Clip, Fuel Hose (df250t:~421902 Df250z:~421255 )

Clip, Fuel Hose (df250t:~421902 Df250z:~421255 )

66

Bolt, Funnel Bracket

Bolt, Funnel Bracket

67

Nut, Idle Gear Shaft

Nut, Idle Gear Shaft

68

Clip (df250t:~421902 Df250z:~421255 )

Clip (df250t:~421902 Df250z:~421255 )

69

Clip (df200t:880710~ Df250z:880436~ )

Clip (df200t:880710~ Df250z:880436~ )

70

Mark, Emblem V6(

Mark, Emblem V6(
