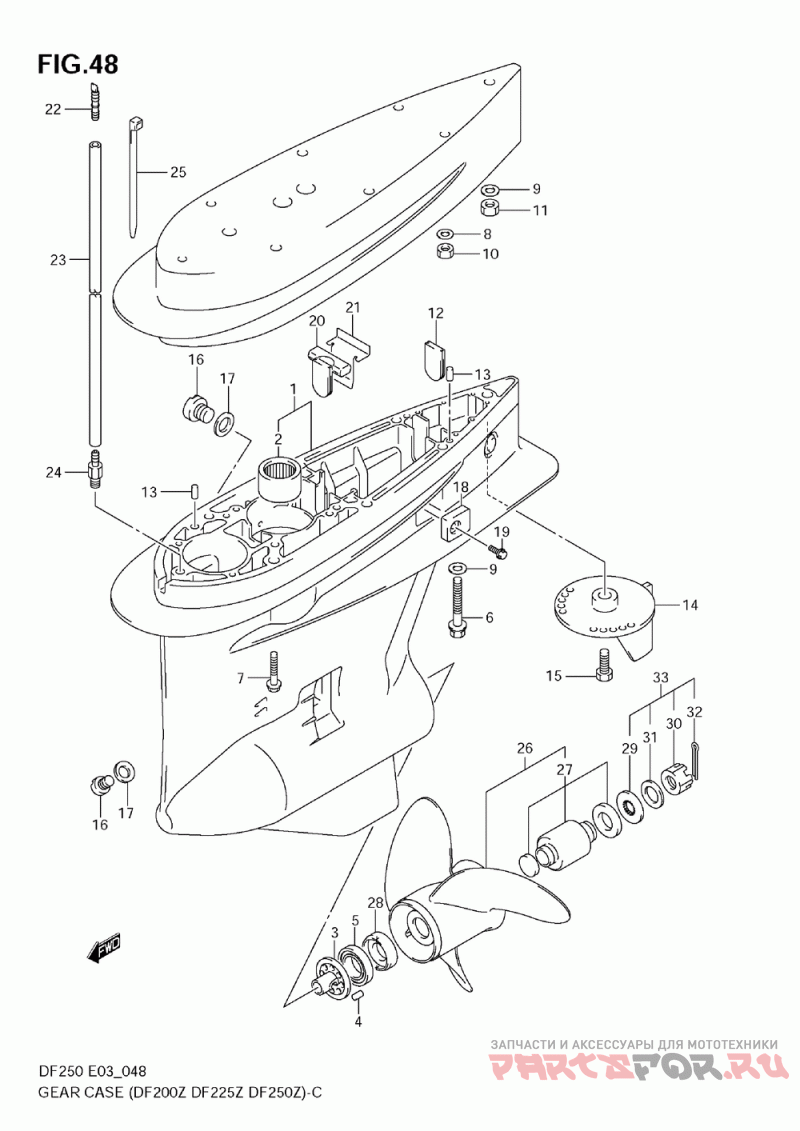

Картер (Gear Case) (DF200Z, DF225Z, 250Z)

Suzuki Marine DF200/DF225/DF250

Suzuki Marine
#oem кодцена
1-1
55110-93J30-0EP
Case Comp, Gear
2-1
09263-32016
Brg, Pinion, 32x4
2-2
09263-32017
.bearing, Pinion (df200z:510023~ Df250z:510070~ )
3
56145-93J00
Housing, Shift C
4
04221-08129
.pin, Shift Cam Housing
5
09265-50002
.bearing, Fwd Thrust
6
09100-12052
Bolt L:70(sus) (type:x)
7
09116-10150
Bolt, 10x55 (type:x)
8
09160-10141
Washer (10.5x19x2) (type:xx <-09160-10082 )
9
09160-12066
.washer (12.5x22x2.5)
10
29141-93J20
Nut (type:xx (10x14) <-09140-10031 )
11
09159-12014
Nut (type:xx (12x17) )
12
17566-87D11
Уплотнитель
13
09202-08006
Штифт
14
55125-98J00-0EP
Tab, Trim
15
09116-08137
Bolt, 8x22 (<-09116-08121)
16-1
55128-93J00
Plug, Drain (df200z:510023~ Df250z:510070~ )
17-1
09168-10034
Gasket, Drain Pl (df200z:510023~ Df250z:510070~ )
18
55320-95311
Zinc Set, Protec
19
09116-06094
Болт 6x15
20
55332-87D11
Rubber, Exhaust
21
55333-87D10
Plate, Exhaust S ( Refer To Fig.49(h-11) For Df250s )
22
55127-87D00
Union, Speedomet
23-1
09355-40805-00B
Hose (type:xx L:2000->1700 )
24
09362-09008
Ниппель
25
09407-14407
Стяжка L-140
26-1
99105-0080L-185
Sspropcrv63x16x (not For Us Market)
26-2
99105-0080L-20P
Sspropcrv63x16x (not For Us Market)
26-3
99105-0080L-215
Sspropcrv63x16x (not For Us Market)
26-4
99105-0080L-23P
Sspropcrv63x16x (not For Us Market)
26-5
99105-0080L-17P
Sspropcrdfv63x1 (not For Us Market)
26-6
99105-0080L-245
Sspropcrv63x16x (not For Us Market)
27
58105-93J00
Bush Set, Propel (opt)
28-1
57632-93J10
Stopper, Propell
29
57633-87D30
Spacer, Nut(t:6.
30
09141-18005
Гайка
31
09160-18028
Washer (18.5x31x1.0)
32
09204-03003
Cotter Pin (l:25)
33
57630-92E00
Prop Hdwr V-6 M (opt)
34
25700-93J00
Lu Sealkit Df V (opt Not Shown)
