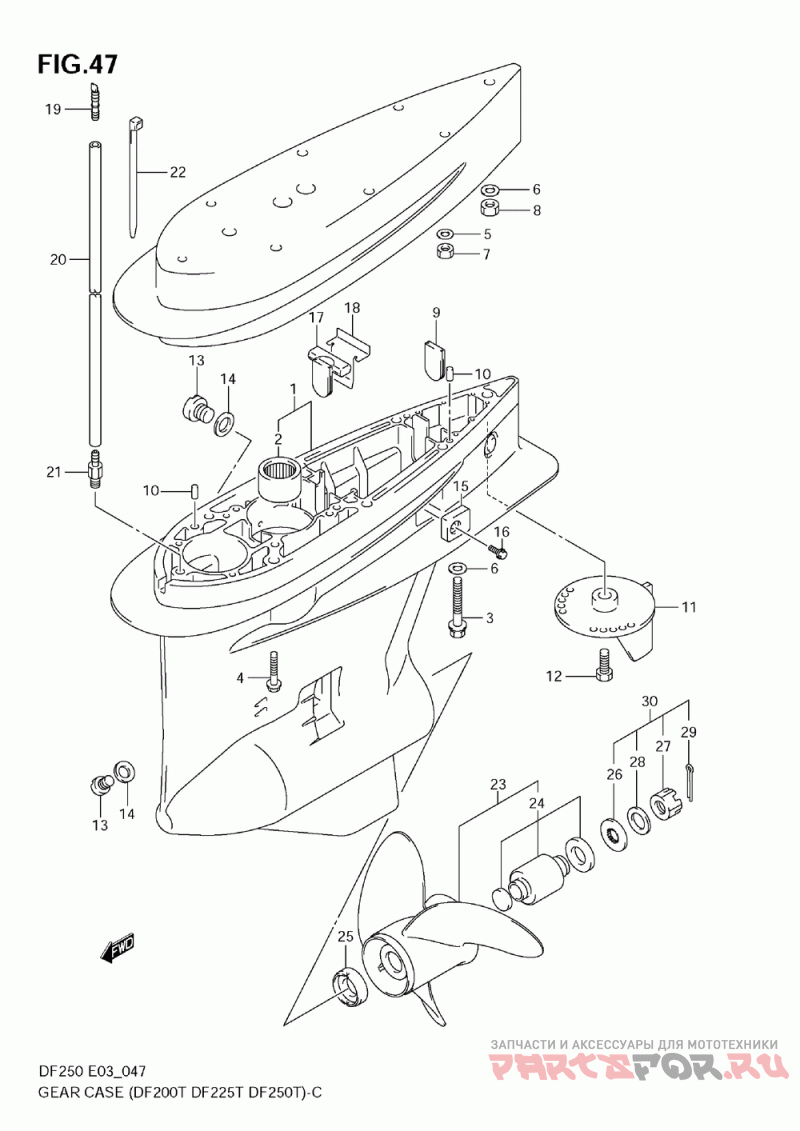

Картер (Gear Case) (DF200T, DF225T, 250T)

Suzuki Marine DF200/DF225/DF250

Suzuki Marine
#oem кодцена
1-1
55110-93J20-0EP
Case Comp, Gear
2-1
09263-32016
Brg, Pinion, 32x4
2-2
09263-32017
.bearing, Pinion (df200t:510124~ Df250t:510308~ )
3
09100-12052
Bolt L:70(sus) (type:l, X)
4
09116-10150
Bolt, 10x55 (type:l, X)
5
09160-10141
Washer (10.5x19x2) (type:xx <-09160-10082 )
6
09160-12066
.washer (12.5x22x2.5)
7
29141-93J20
Nut (type:xx (10x14) <-09140-10031 )
8
09159-12014
Nut (type:xx (12x17) )
9
17566-87D11
Уплотнитель
10
09202-08006
Штифт
11
55125-98J00-0EP
Tab, Trim
12
09116-08137
Bolt, 8x22 (<-09116-08121)
13-1
55128-93J00
Plug, Drain (df200t:510124~ Df250t:510308~ )
14-1
09168-10034
Gasket, Drain Pl (df200t:510124~ Df250t:510308~ )
15
55320-95311
Zinc Set, Protec
16
09116-06094
Болт 6x15
17
55332-87D11
Rubber, Exhaust
18
55333-87D10
Plate, Exhaust S ( Refer To Fig.49(h-11) For Df250s )
19
55127-87D00
Union, Speedomet
20-1
09355-40805-00B
Hose (type:xx L:2000->1700 )
21
09362-09008
Ниппель
22
09407-14407
Стяжка L-140
23-1
99105-00800-17P
Ssprop Dfv63x16 (not For Us Market)
23-2
99105-00800-185
Ssprop Dfv63x16 (not For Us Market)
23-3
99105-00800-20P
Ssprop Dfv63x16 (not For Us Market)
23-4
99105-00800-215
Ssprop Dfv63x16 (not For Us Market)
23-5
99105-00800-23P
Ssprop Dfv63x16 (not For Us Market)
23-6
99105-00800-245
Ssprop Dfv63x16 (not For Us Market)
24
58105-93J00
Bush Set, Propel (opt)
25-1
57632-93J10
Stopper, Propell
26
57633-87D30
Spacer, Nut(t:6.
27
09141-18005
Гайка
28
09160-18028
Washer (18.5x31x1.0)
29
09204-03003
Cotter Pin (l:25)
30
57630-92E00
Prop Hdwr V-6 M (opt)
31
25700-93J00
Lu Sealkit Df V (opt Not Shown)
