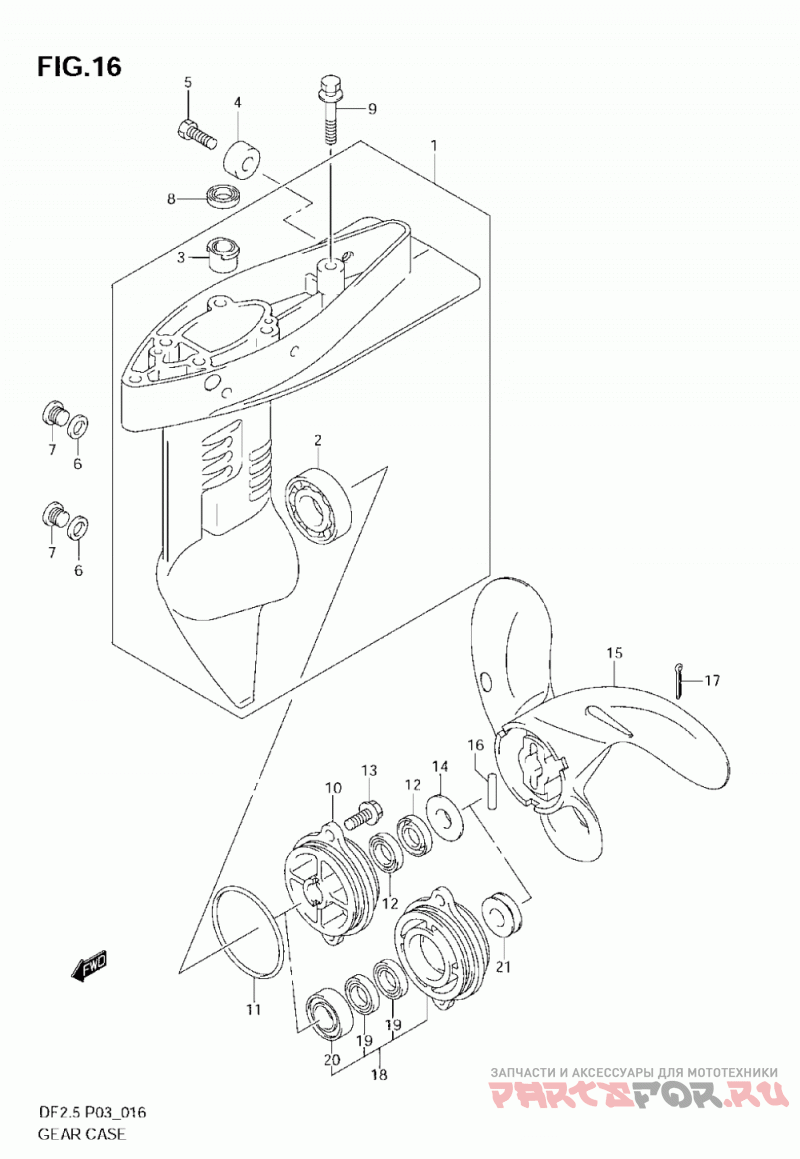

Редуктор

Suzuki Marine DF2.5

Suzuki Marine
#oem кодцена
1-1
55110-97J01-0EP
Case Comp, Gear( (->55110-97j01-0ep 09116-06094 X2 )
1-3
55110-97J20-0EP
Case Comp, Gear (model:09)
2
09262-17019
Bearing, Clutch Shaft
3
59311-97J00
Bush, Pinion
4
55321-87J00
Anode, Protectio
5
09103-06281
Болт (6х14)
6
59178-97J00
Gasket, Drain Pl
7
09248-08001
Пробка, Дренажный
8
59299-97J00
Seal, Drive Shaf
9
09116-06099
Болт
10
56120-97J00-0EP
Housing, Prop Sh (model:06~08 ->56120-97j20-0ep )
11
59291-97J00
Кольцо уплотнительное
12
09282-10008
Сальник
13
09116-06094
Болт 6x15
14
56123-97J00
Protector, Prop (model:08~09)
15-1
58111-97J00-019
Prop 3x188x135 (model:06~09)
15-2
58111-98465-019
Propeller(3x188 (model:06)
16
09202-04002
Штифт
17
09204-02001
Штифт
18
56120-97J20-0EP
Housing, Prop Sh (model:09)
20
08110-60000
Bearing (model:09)
21
56123-97J10
Protector, Prop (model:09)
1
55110-97J10-0EP
CASE, GEAR (BLACK)
18
56120-97J30-0EP
HOUSING, PROP SFT BRG
18
56120-97J10-0EP
HOUSING, PROP SFT BRG
