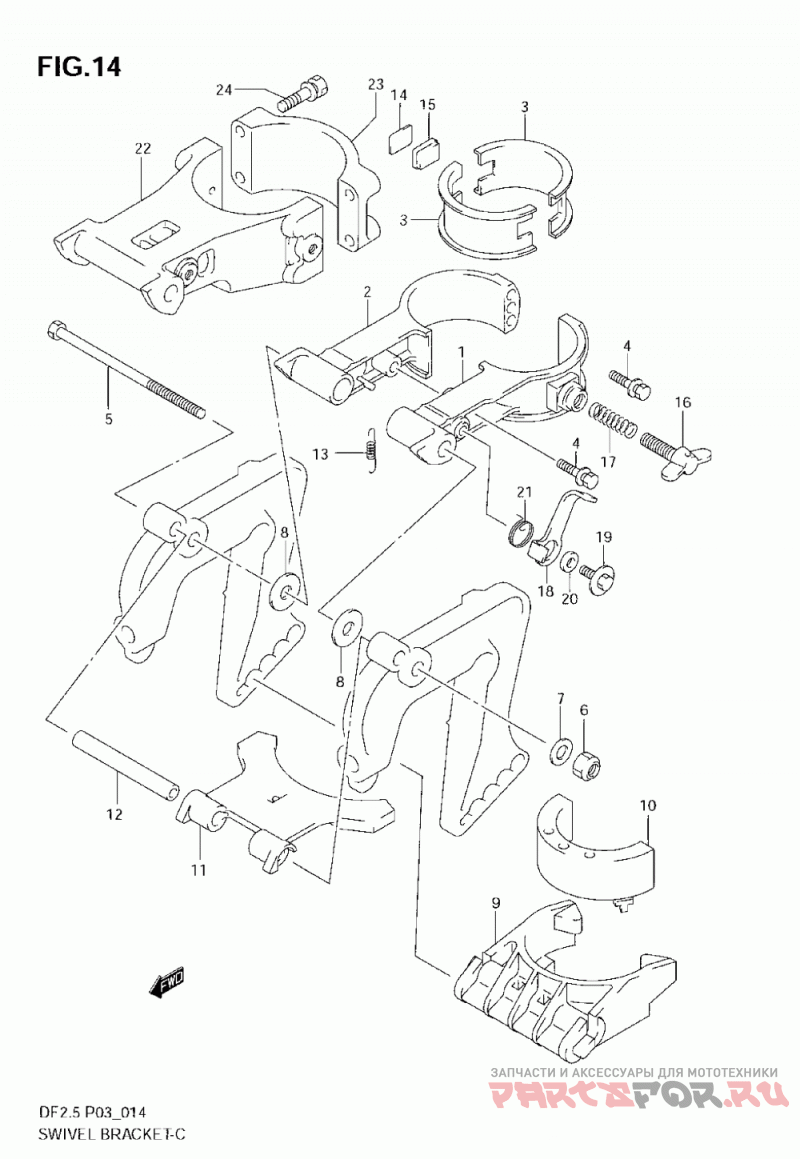

Поворотный кронштейн для лодочных моторов Suzuki Marine DF2.5 (2009)

Поворотный кронштейн

Suzuki Marine DF2.5

oem код

название

цена

43110-97J10-0EP

Swivel Bracket (model:06, 07 Bracket Assy, Swivel )

43121-97J00-0EP

Bracket, Swivel (model:06, 07 Bracket Assy, Swivel )

43711-97J00

Bush, Steering U

09116-06121

.bolt (6x25) (model:06, 07)

59111-97J00

Bolt, Swivel Sha

09159-08018

Nut, Swivel Shaft

09160-08091

Washer, Steering Adjuster ( (8.5x14x1.0) )

09160-08081

.washer (8.5x23x1.5) ( (8.5x23x1.5) )

9-1

Block, Thrust

Mount, Lower Thr

Bracket, Swivel

Shaft, Swivel St

Spring, Swivel S

14-1

43415-97J10

Plate, Steering

15-1

Rubber, Steering

Болт

Пружина

Lever, Tilt Lock (<-41221-97j00)

09116-06127

Болт М6x12

59181-97J10

Spacer, Tilt Loc

21-1

59444-97J00

Spring, Tilt Loc

21-2

59444-97J10

Spring, Tilt Loc (model:08~09)

43111-97J10-0EP

Bracket, Swivel (model:08~09)

43121-97J10-0EP

Bracket, Swivel (model:08~09)

09116-06207

Bolt (6x30) (model:08~09)

43111-97J00-0EP

BRACKET, SWIVEL PORT (BLACK)

45411-97J00

BLOCK, THRUST

43415-97J00

PLATE, STEERING ADJUSTER

43416-97J00

RUBBER, STEERING ADJUSTER

43111-97J20-0EP

BRACKET, SWIVEL

43121-97J20-0EP

COVER, SWIVEL BRACKET

43110-97J20-0EP

BRACKET ASSY, SWIVEL
