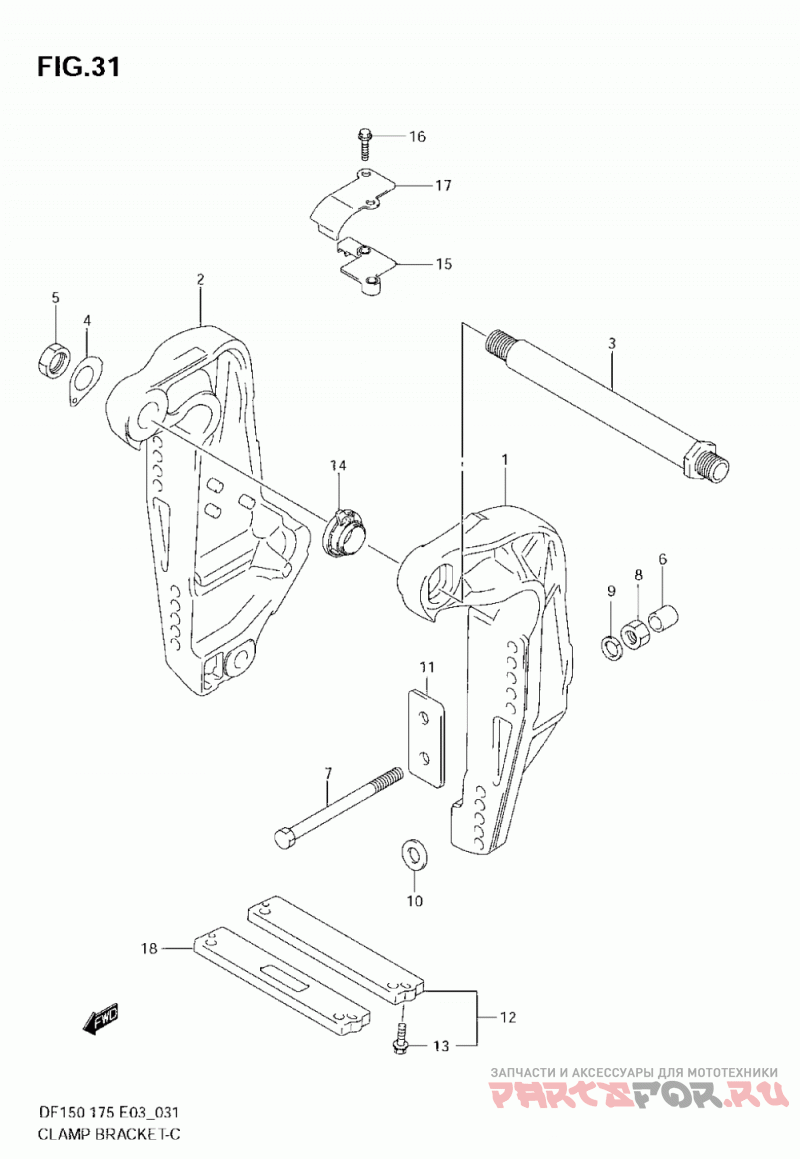

Кронштейн транца

Suzuki Marine DF175

Suzuki Marine
#oem кодцена
1
41111-96J00-0EP
BRACKET, CLAMP STBD (BLACK)
1
41111-96J10-0EP
BRACKET, CLAMP STBD
2
41121-96J00-0EP
BRACKET, CLAMP PORT (BLACK)
2
41121-96J10-0EP
BRACKET, CLAMP PORT
3
41130-92J01
SHAFT, CLAMP BRKT
3
41130-92J00
SHAFT, CLAMP BRKT
4
41135-92J00
WASHER, CLAMP BRACKET SHAFT
5
09159-22006
NUT, CLAMP BRACKET SHAFT (M22)
6
41153-93J00
CAP, TRANSOM BOLT
7
09100-12085
BOLT, TRANSOM (12X115)
7
09100-12086
BOLT, TRANSOM (12X150)
7
09100-12092
BOLT, TRANSOM (12X75)
8
09159-12062
NUT, TRANSOM BOLT (M12)
9
09160-13016
WASHER, TRANSOM NO.1 (13.2X26X3)
10
09160-13017
WASHER, TRANSOM NO.2 (13.2X45X5)
11
41155-93J01
Пластина
11
41155-93J00
Пластина
12
55320-94900
ZINC SET, PROTECTION
13
09116-06121
Болт (6x25)
14
48140-93J00
CAM, TILT LIMIT SWITCH
15
48144-93J00
HOLDER, TILT LIMIT SWITCH
16
09103-06278
BOLT, TILT LIMIT SW HOLDER (6X25)
17
48145-93J00
COVER, TILT LIMIT SWITCH
18
55321-94910
ANODE (MAGNESIUM)
