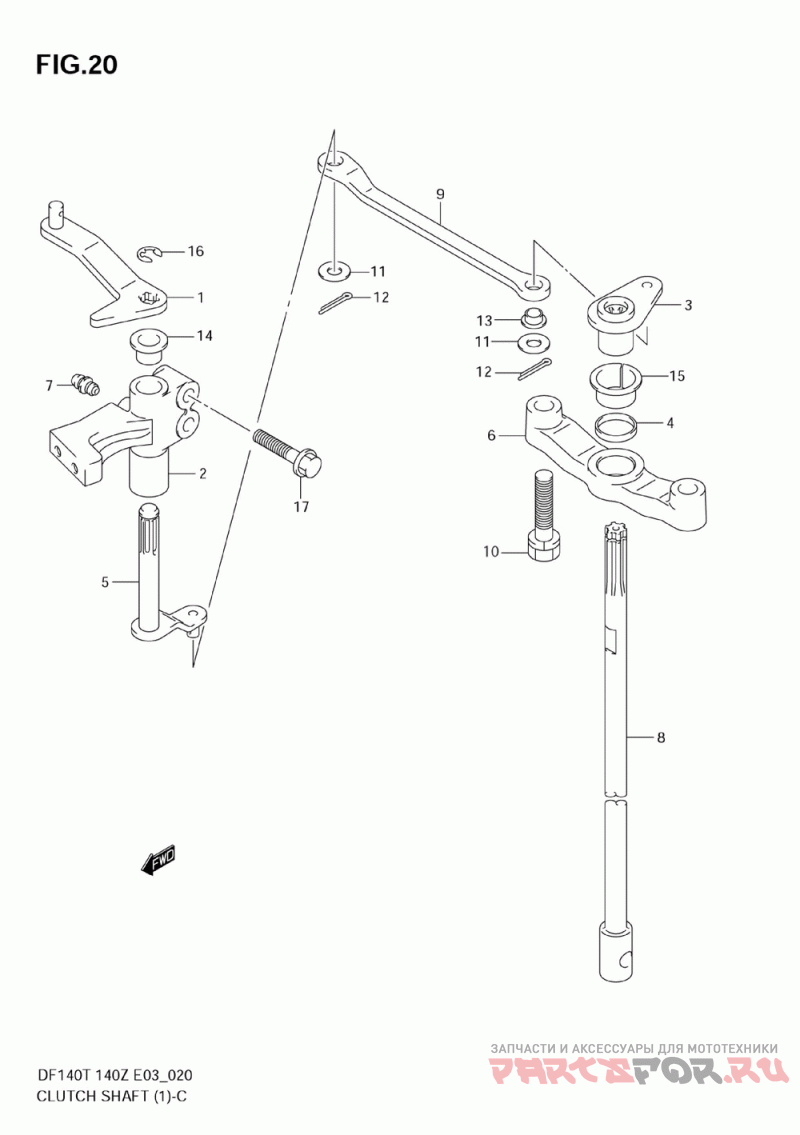

Вал сцепления
Suzuki Marine DF140T,Z
| # | oem код | название | цена |
|---|---|---|---|
1 | 21110-90J02 Деталь Lever, Clutch ( ) | Деталь Lever, Clutch ( ) | |
2 | 21151-90J01 Деталь Holder, Clutch L ( ) | Деталь Holder, Clutch L ( ) | |
3 | 21210-90J01 Деталь Shaft, Clutch ( ) | Деталь Shaft, Clutch ( ) | |
4 | 21221-90J00 Деталь Bush, Clutch Sha ( ) | Деталь Bush, Clutch Sha ( ) | |
5 | 21230-90J00 Деталь Arm, Clutch Shaf ( ) | Деталь Arm, Clutch Shaf ( ) | |
6 | 21311-90J00 Деталь Holder, Clutch S ( ) | Деталь Holder, Clutch S ( ) | |
7 | 22511-99011 Деталь Nipple, Grease ( ) | Деталь Nipple, Grease ( ) | |
8-1 | 23111-90J02 Деталь Rod, Clutch (l) (df140t ) | Деталь Rod, Clutch (l) (df140t ) | |
8-2 | 23111-90J12 Деталь Rod, Clutch (x) (df140t, 140z ) | Деталь Rod, Clutch (x) (df140t, 140z ) | |
9 | 23115-90J00 Деталь Link, Clutch Lev ( ) | Деталь Link, Clutch Lev ( ) | |
10 | 09117-08071 Деталь .bolt (8x35) ( ) | Деталь .bolt (8x35) ( ) | |
11 | 09160-06094 Деталь Washer (6.5x15x1.5) ( ) | Деталь Washer (6.5x15x1.5) ( ) | |
12 | 09204-01006 Деталь Pin ( ) | Деталь Pin ( ) | |
13 | 09306-06004 Деталь Bush, Clutch Lever Link ( ) | Деталь Bush, Clutch Lever Link ( ) | |
14 | 09306-10001 Деталь Bush ( ) | Деталь Bush ( ) | |
15 | 09306-16004 Деталь Bush, Clutch Shaft ( ) | Деталь Bush, Clutch Shaft ( ) | |
16 | 09383-08004 Деталь E Ring ( ) | Деталь E Ring ( ) | |
17 | 01550-06307 Деталь Bolt ( Refer To Fig.22(d- 4) For Df140t:682149~, Df140z:680234~ ) | Деталь Bolt ( Refer To Fig.22(d- 4) For Df140t:682149~, Df140z:680234~ ) |
