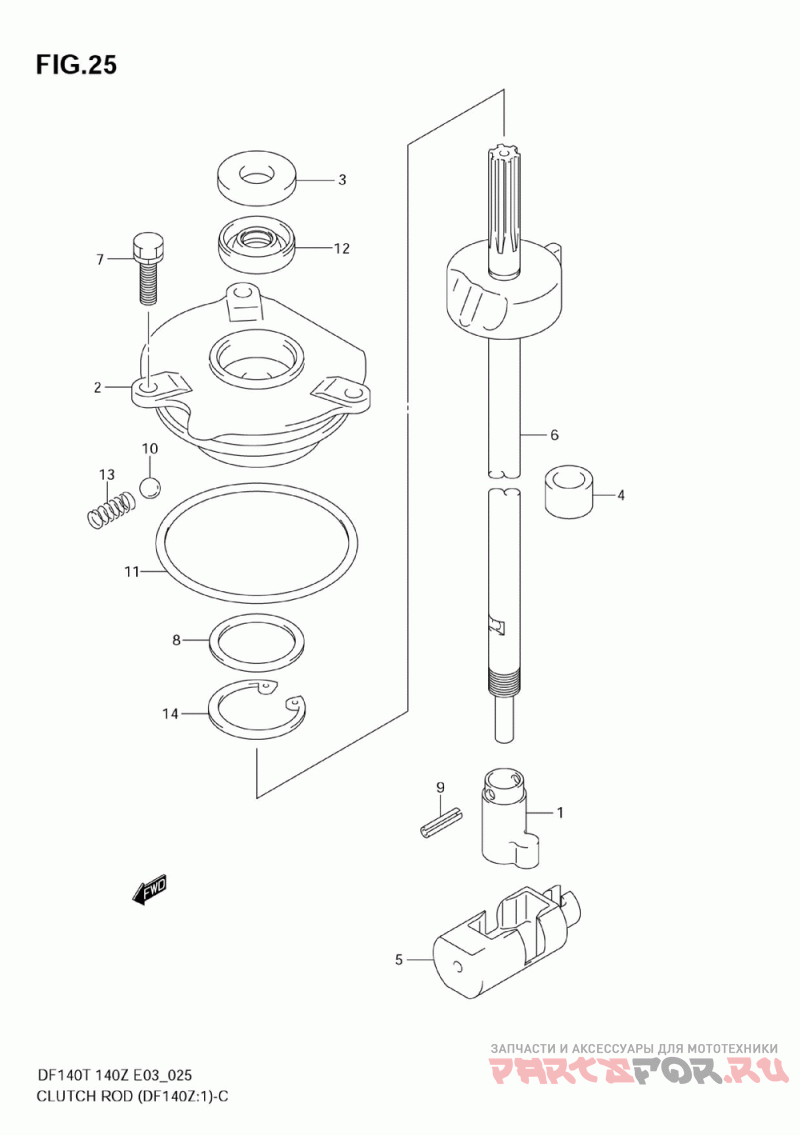

Тяга сцепления (DF140T/WT:~680233)
Suzuki Marine DF140T,Z
| # | oem код | название | цена |
|---|---|---|---|
1 | 25131-90J01 Yoke, Shifter ( ) | Yoke, Shifter ( ) | |
2 | 25141-90J03 Housing, Shift R ( ) | Housing, Shift R ( ) | |
3 | 25222-90J00 Cover, Sft Guide ( ) | Cover, Sft Guide ( ) | |
4 | 25232-90J00 Magnet, Gear Cas ( ) | Magnet, Gear Cas ( ) | |
5 | 25321-92J00 Slider, Shift Ho ( ) | Slider, Shift Ho ( ) | |
6 | 25350-90J11 Rod, Shift Assis ( ) | Rod, Shift Assis ( ) | |
7 | 09117-06031 Bolt (6x20) ( ) | Bolt (6x20) ( ) | |
8 | 09160-30037 Washer (30x38x1.9) ( ) | Washer (30x38x1.9) ( ) | |
9 | 09205-04014 Pin ( ) | Pin ( ) | |
10 | 09260-10005 Ball ( ) | Ball ( ) | |
11 | 09280-69001 O Ring (d:3.1, Id:68.5) ( ) | O Ring (d:3.1, Id:68.5) ( ) | |
12 | 09283-10011 Seal, Dust ( ) | Seal, Dust ( ) | |
13 | 09440-07033 Spring Cam Notc ( ) | Spring Cam Notc ( ) | |
14 | 08331-41386 Circlip ( Refer To Fig.26(d- 8) For Df140z:680234~ ) | Circlip ( Refer To Fig.26(d- 8) For Df140z:680234~ ) |
