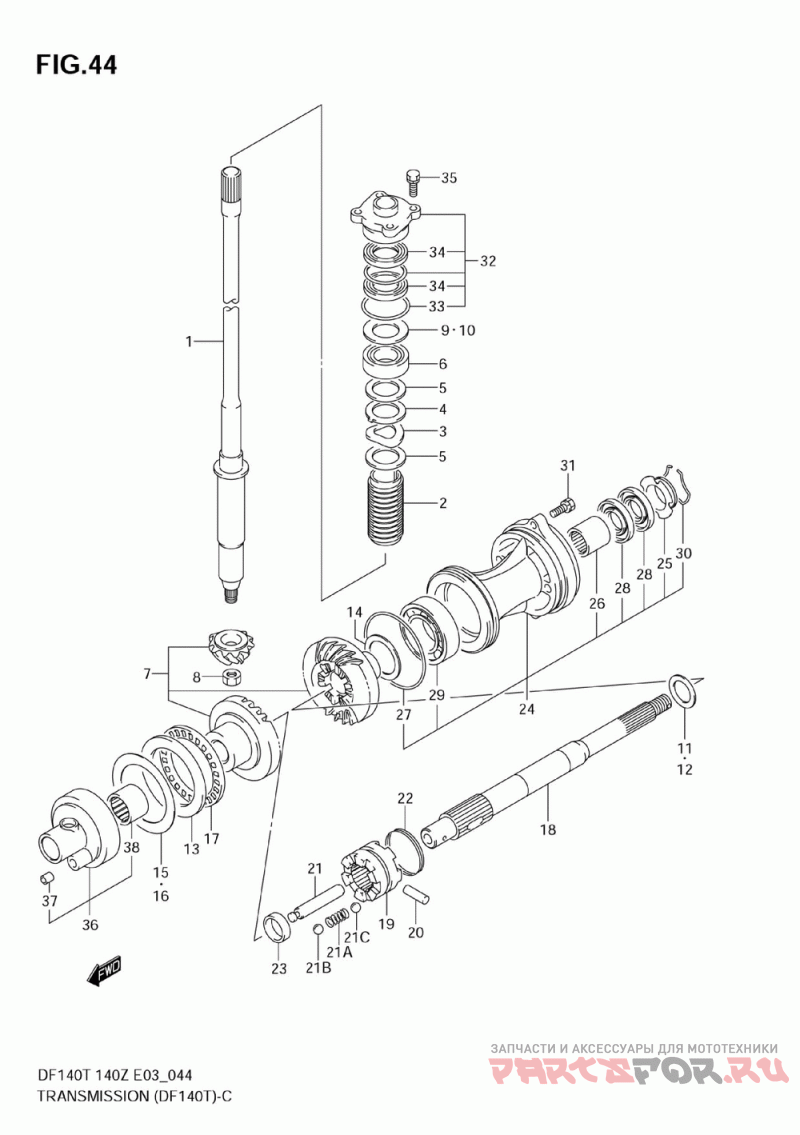

Трансмиссия (DF140T, DF140WT)
Suzuki Marine DF140T,Z
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 57110-90J20 Shaft, Drive (l) ( ) | Shaft, Drive (l) ( ) | |
1-2 | 57110-92J40 Shaft Comp, Driv (model:04~06 ) | Shaft Comp, Driv (model:04~06 ) | |
1-4 | 57110-90J30 Shaft, Drive (ul ( ) | Shaft, Drive (ul ( ) | |
1-5 | 57110-92J50 Shaft Comp, Driv (model:04~06 ) | Shaft Comp, Driv (model:04~06 ) | |
2 | 57133-90J01 Collar ( ) | Collar ( ) | |
3 | 09164-31001 Washer, Wave (model:02,03 ) | Washer, Wave (model:02,03 ) | |
4 | 09169-31001 Washer (model:02, 03 ) | Washer (model:02, 03 ) | |
5 | 09181-31001 Washer (model:02, 03 ) | Washer (model:02, 03 ) | |
6 | 09265-25040 Bearing ( ) | Bearing ( ) | |
7-1 | 57300-92801 Pinion/gear Set ( ) | Pinion/gear Set ( ) | |
7-2 | 57300-92820 Pinion / Gear S (df140t:682149~ ) | Pinion / Gear S (df140t:682149~ ) | |
7-3 | 57300-92840 Pinion / Gear S (model:07~09 ) | Pinion / Gear S (model:07~09 ) | |
8-1 | 09140-14021 Nut ( ) | Nut ( ) | |
8-2 | 09140-14024 Nut (model:07~09 ) | Nut (model:07~09 ) | |
9 | 57500-87873 Shim Set, Drive ( ) | Shim Set, Drive ( ) | |
10-1 | 09181-40186 .shim (t:0.50) ( ) | .shim (t:0.50) ( ) | |
10-2 | 09181-41002 Shim ( ) | Shim ( ) | |
10-3 | 09181-41003 .shim (t:0.60) ( ) | .shim (t:0.60) ( ) | |
10-4 | 09181-41004 .shim (t:0.65) ( ) | .shim (t:0.65) ( ) | |
10-5 | 09181-41005 .shim (t:0.70) ( ) | .shim (t:0.70) ( ) | |
10-6 | 09181-41006 .shim (t:0.75) ( ) | .shim (t:0.75) ( ) | |
10-7 | 09181-40190 .shim (t:0.80) ( ) | .shim (t:0.80) ( ) | |
10-8 | 09181-41008 .shim (t:0.85) ( ) | .shim (t:0.85) ( ) | |
10-9 | 09181-41009 .shim (t:0.90) ( ) | .shim (t:0.90) ( ) | |
10-10 | 09181-41010 .shim (t:0.95) ( ) | .shim (t:0.95) ( ) | |
10-11 | 09181-40195 .shim (t:1.00) ( ) | .shim (t:1.00) ( ) | |
10-12 | 09181-41012 .shim (t:1.05) ( ) | .shim (t:1.05) ( ) | |
10-13 | 09181-41013 .shim (t:1.10) ( ) | .shim (t:1.10) ( ) | |
10-14 | 09181-41014 .shim (t:1.15) ( Refer To Fig.45(g- 9) For Df140z ) | .shim (t:1.15) ( Refer To Fig.45(g- 9) For Df140z ) | |
11 | 57500-87861 Shim Set, Revers ( ) | Shim Set, Revers ( ) | |
12-1 | 08211-30382 .washer (30x38x1.5) ( ) | .washer (30x38x1.5) ( ) | |
12-2 | 09160-30036 .washer (30x38x1.7) ( ) | .washer (30x38x1.7) ( ) | |
12-3 | 09160-30037 Washer (30x38x1.9) ( ) | Washer (30x38x1.9) ( ) | |
12-4 | 09160-30038 .washer (30x38x2.1) ( ) | .washer (30x38x2.1) ( ) | |
12-5 | 09160-30039 .washer (30x38x2.3) ( ) | .washer (30x38x2.3) ( ) | |
12-6 | 09160-30041 .washer (30x38x2.4) ( ) | .washer (30x38x2.4) ( ) | |
12-7 | 09160-30042 .washer (30x38x2.6) ( ) | .washer (30x38x2.6) ( ) | |
12-8 | 09160-30043 .washer (30x38x2.7) ( ) | .washer (30x38x2.7) ( ) | |
12-9 | 09160-30044 .washer (30x38x2.8) ( ) | .washer (30x38x2.8) ( ) | |
13 | 09160-70002 Washer (70x95x5.25) (fwd Gear ) | Washer (70x95x5.25) (fwd Gear ) | |
14-1 | 09181-45003 Shim (rev Gear ) | Shim (rev Gear ) | |
14-2 | 09181-45004 Shim (t:1.1) ( ) | Shim (t:1.1) ( ) | |
14-3 | 09181-45005 Shim ( ) | Shim ( ) | |
14-4 | 09181-45006 Shim ( ) | Shim ( ) | |
14-5 | 09181-45007 Shim ( ) | Shim ( ) | |
14-6 | 09181-45008 Shim ( ) | Shim ( ) | |
14-7 | 09181-45009 Shim ( ) | Shim ( ) | |
15 | 57500-92813 Shim Set, Forwar ( ) | Shim Set, Forwar ( ) | |
16-1 | 09181-70001 Shim ( ) | Shim ( ) | |
16-2 | 09181-70002 Shim ( ) | Shim ( ) | |
16-3 | 09181-70003 Shim ( ) | Shim ( ) | |
16-4 | 09181-70004 Shim ( ) | Shim ( ) | |
16-5 | 09181-70006 Shim ( ) | Shim ( ) | |
16-6 | 09181-70009 Shim, Forward Ge ( ) | Shim, Forward Ge ( ) | |
16-7 | 09181-70010 Shim, Forward Ge ( ) | Shim, Forward Ge ( ) | |
16-8 | 09181-70011 Shim, Forward Ge ( ) | Shim, Forward Ge ( ) | |
16-9 | 09181-70012 Shim, Forward Ge ( ) | Shim, Forward Ge ( ) | |
17 | 09269-70001 Rc 70x95x4 Brg (fwd Gear ) | Rc 70x95x4 Brg (fwd Gear ) | |
18-1 | 57610-92J00 Shaft Comp, Prop ( ) | Shaft Comp, Prop ( ) | |
18-2 | 57610-92J20 Shaft Comp, Prop (df140t:682149~ ) | Shaft Comp, Prop (df140t:682149~ ) | |
19-1 | 57621-92J00 Shifter, Clutch ( ) | Shifter, Clutch ( ) | |
19-2 | 57621-92J10 Shifter, Clutch (df140t:682149~ ) | Shifter, Clutch (df140t:682149~ ) | |
20 | 09202-07002 Pin ( ) | Pin ( ) | |
21-1 | 57631-87E00 Pin, Connector ( ) | Pin, Connector ( ) | |
21-2 | 57631-92J00 Pin, Connector (df140t:682149~ ) | Pin, Connector (df140t:682149~ ) | |
21A | 09440-09040 Spring, Detent (df140t:682149~ ) | Spring, Detent (df140t:682149~ ) | |
21B | 06111-07004 Ball, Detent No.1 (df140t:682149~ ) | Ball, Detent No.1 (df140t:682149~ ) | |
21C | 06111-11004 Ball (df140t:682149~ ) | Ball (df140t:682149~ ) | |
22-1 | 09440-50002 Spring Dog ( ) | Spring Dog ( ) | |
22-2 | 09440-49004 Spring (model:03~09 ) | Spring (model:03~09 ) | |
23 | 57616-90J00 Spacer, Clutch D ( ) | Spacer, Clutch D ( ) | |
24 | 56120-92J01-0EP Housing, Prop Sh ( ) | Housing, Prop Sh ( ) | |
25 | 56123-92J00 Washer, Oil Seal ( ) | Washer, Oil Seal ( ) | |
26 | 09263-30051 Needle Brng 30x ( ) | Needle Brng 30x ( ) | |
27 | 09280-97001 .o Ring (d:3.5, Id:95.0) ( ) | .o Ring (d:3.5, Id:95.0) ( ) | |
28 | 09282-30007 Seal, Oil ( ) | Seal, Oil ( ) | |
29 | 08113-62090 .bearing ( ) | .bearing ( ) | |
30 | 09387-52001 Set Ring (sus) ( ) | Set Ring (sus) ( ) | |
31 | 09117-08047 Bolt (8x30) ( ) | Bolt (8x30) ( ) | |
32 | 56130-90J00 Hsg Comp, Drive ( ) | Hsg Comp, Drive ( ) | |
33 | 09280-46004 .o Ring (d:3.5, Id:45.7) ( ) | .o Ring (d:3.5, Id:45.7) ( ) | |
34 | 09282-24004 .oil Seal ( ) | .oil Seal ( ) | |
35 | 09117-08057 Bolt (8x25) ( ) | Bolt (8x25) ( ) | |
36 | 56140-92J00 Housing, Fwd Gea ( ) | Housing, Fwd Gea ( ) | |
37-1 | 09206-09012 Pin ( ) | Pin ( ) | |
38 | 09263-50001 .bearing (50x62x25) ( ) | .bearing (50x62x25) ( ) | |
1-5 | 57110-92J51 Shaft, Drive (x) (model:04~06 ) | Shaft, Drive (x) (model:04~06 ) |
