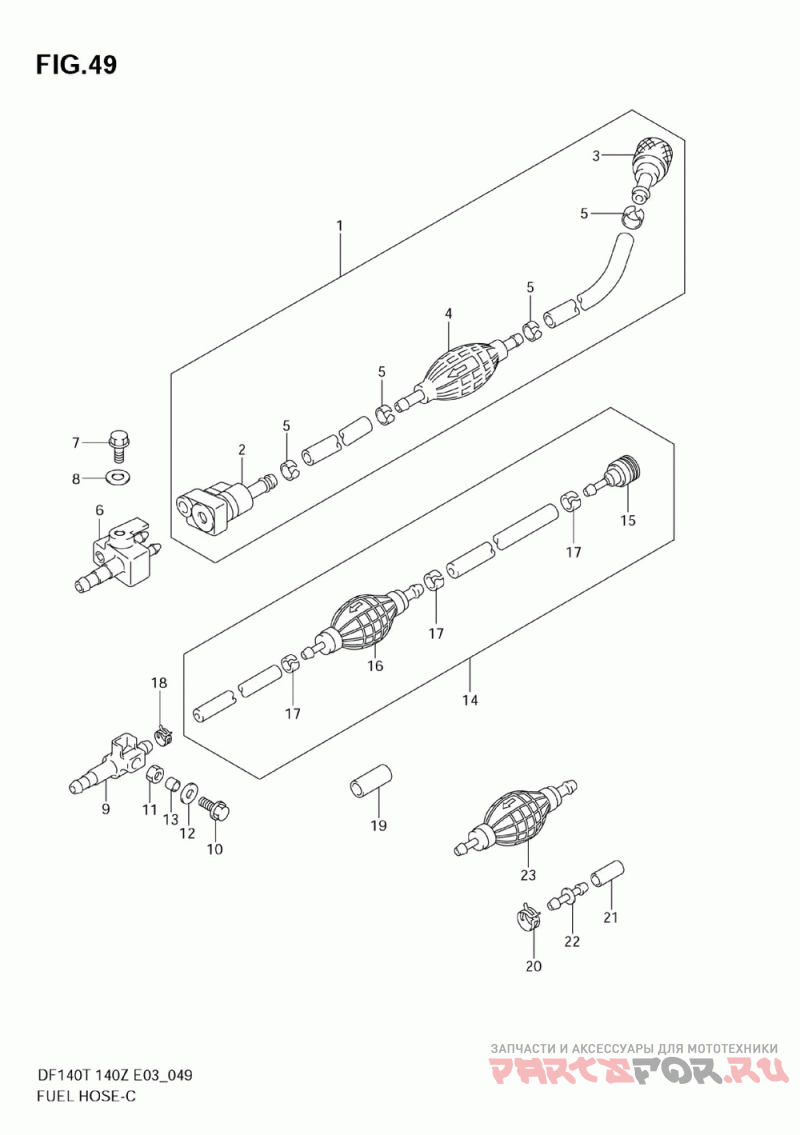

Топливный шланг
Suzuki Marine DF140T,Z
| # | oem код | название | цена |
|---|---|---|---|
1 | 65700-87J22 Hose, Fuel Tank (model:02 ) | Hose, Fuel Tank (model:02 ) | |
2 | 65750-87J11 Socket, Fuel Hos (model:02 ) | Socket, Fuel Hos (model:02 ) | |
3 | 65750-95500 Socket, Fuel Hos (model:02 ) | Socket, Fuel Hos (model:02 ) | |
4 | 65770-95504 Pump, Squeeze (model:02 ) | Pump, Squeeze (model:02 ) | |
5 | 65781-98500 Clip, Hose (model:02 ) | Clip, Hose (model:02 ) | |
6 | 65720-986B0 Plug, Fuel Conne (model:02 ) | Plug, Fuel Conne (model:02 ) | |
7 | 09103-06237 Bolt (model:02 ) | Bolt (model:02 ) | |
8 | 09160-06085 Washer (model:02 ) | Washer (model:02 ) | |
9 | 65721-90J00 Plug, Fuel Conne (model:03~06 ) | Plug, Fuel Conne (model:03~06 ) | |
10 | 09103-06092 Bolt (6x15) (model:03~06 ) | Bolt (6x15) (model:03~06 ) | |
11 | 09140-06020 .nut (model:03~06 ) | .nut (model:03~06 ) | |
13 | 09180-06334 Spacer (model:03~06 ) | Spacer (model:03~06 ) | |
14 | 65700-90J00 Hose Assy, Fuel( (model:03~06 ) | Hose Assy, Fuel( (model:03~06 ) | |
18 | 09401-11415 Clip (model:03~06 ) | Clip (model:03~06 ) | |
19 | 09251-07003 Cap, Fuel Joint (model:03~06 ) | Cap, Fuel Joint (model:03~06 ) | |
20 | 09401-11423 Clip (model:07~09 ) | Clip (model:07~09 ) | |
22 | 09367-08001 Joint, Fuel Hose (model:07~09 ) | Joint, Fuel Hose (model:07~09 ) |
