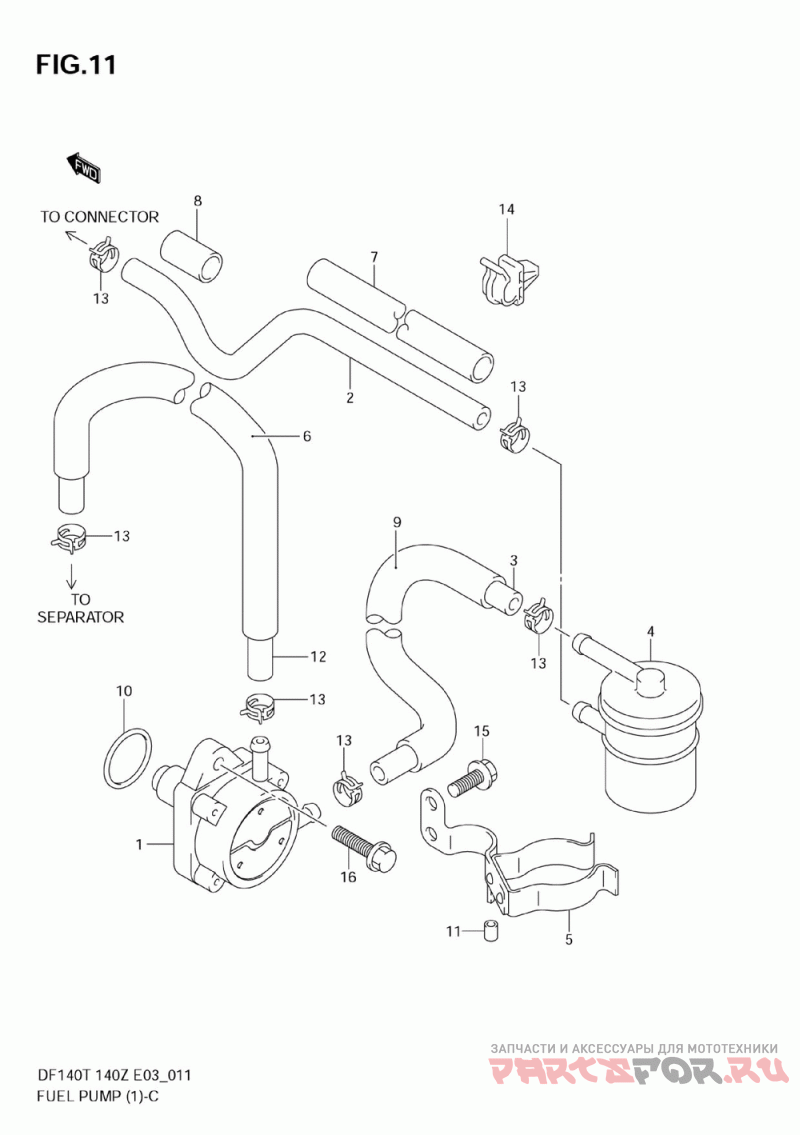

Насос топливный
Suzuki Marine DF140T,Z
| # | oem код | название | цена |
|---|---|---|---|
1 | 15100-90J1V Pump Assy, Fuel (<-15100-90j00 ) | Pump Assy, Fuel (<-15100-90j00 ) | |
2 | 15191-90J10 Hose, Fuel(conn ( ) | Hose, Fuel(conn ( ) | |
3 | 15192-90J10 Hose, Fuel(filte ( ) | Hose, Fuel(filte ( ) | |
4 | 15410-87J10 Filter, Fuel ( ) | Filter, Fuel ( ) | |
5-1 | 15420-90J10 Bracket Comp, Fu ( ) | Bracket Comp, Fu ( ) | |
6 | 18498-99E10 Protector, Fuel Hose (610) (l:610->230 <-18498-90j50 ) | Protector, Fuel Hose (610) (l:610->230 <-18498-90j50 ) | |
10 | 09280-26005 O Ring (d:2.4 Id:26.2) ( ) | O Ring (d:2.4 Id:26.2) ( ) | |
11 | 09320-05016 .cushion, Bracket ( ) | .cushion, Bracket ( ) | |
12 | 09354-65113-600 Hose, Fuel (6.5x11.5x600) (l:600->530 ) | Hose, Fuel (6.5x11.5x600) (l:600->530 ) | |
13 | 09401-11415 Clip ( ) | Clip ( ) | |
14 | 09403-11314 Clamp ( ) | Clamp ( ) | |
15 | 01550-06167 .bolt, Remocon Cable Holder ( ) | .bolt, Remocon Cable Holder ( ) | |
16 | 01550-06257 ..bolt ( Refer To Fig.12(c- 5) For Df140t:682149~, Df140z:680234~ ) | ..bolt ( Refer To Fig.12(c- 5) For Df140t:682149~, Df140z:680234~ ) |
