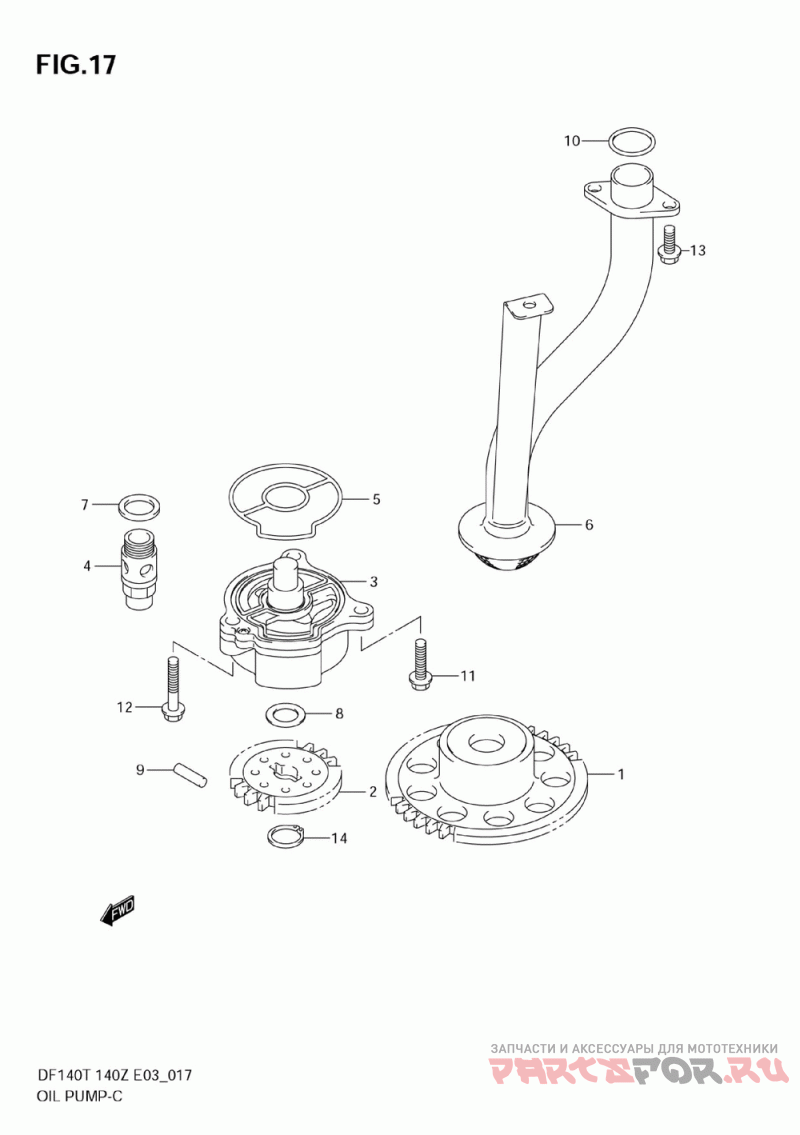

Масляный насос
Suzuki Marine DF140T,Z
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 12630-92810 Деталь Gear Set, Oil Pu (->12630-92810 (drive+driven) ) | Деталь Gear Set, Oil Pu (->12630-92810 (drive+driven) ) | |
1-2 | 12632-92J11 Деталь Gear, Oil Pump D (df140t:425120~ Df140z:421437~ ) | Деталь Gear, Oil Pump D (df140t:425120~ Df140z:421437~ ) | |
2-1 | 16113-90J00 Деталь Gear, Oil Pump D (->12630-92810 (drive+driven) ) | Деталь Gear, Oil Pump D (->12630-92810 (drive+driven) ) | |
2-2 | 16113-92J11 Деталь Gear, Oil Pump D (df140t:425120~ Df140z:421437~ ) | Деталь Gear, Oil Pump D (df140t:425120~ Df140z:421437~ ) | |
3 | 16400-90J00 Деталь Pump Assy, Oil ( ) | Деталь Pump Assy, Oil ( ) | |
4 | 16440-99E00 Деталь Valve Assy, Oil ( ) | Деталь Valve Assy, Oil ( ) | |
5 | 16451-90J00 Деталь O Ring, Oil Pump ( ) | Деталь O Ring, Oil Pump ( ) | |
6 | 16520-90J00 Деталь Strainer, Oil Pu ( ) | Деталь Strainer, Oil Pu ( ) | |
7 | 09168-16002 Деталь Gasket (16x22x2.0) ( ) | Деталь Gasket (16x22x2.0) ( ) | |
8 | 09181-12158 Деталь Washer (12x20x0.5) ( ) | Деталь Washer (12x20x0.5) ( ) | |
9 | 09261-05006 Деталь Pin ( ) | Деталь Pin ( ) | |
10-1 | 09280-22020 Деталь O Ring (d:2.4, Id:21.8) (df140t:684376~ Df140z:680510~ ) | Деталь O Ring (d:2.4, Id:21.8) (df140t:684376~ Df140z:680510~ ) | |
11 | 01547-06257 Деталь Bolt ( ) | Деталь Bolt ( ) | |
12 | 01547-06357 Деталь Bolt ( ) | Деталь Bolt ( ) | |
13 | 01550-0616A Деталь Bolt ( ) | Деталь Bolt ( ) | |
14 | 08331-3112A Деталь Circlip, Gear Shift Lever ( ) | Деталь Circlip, Gear Shift Lever ( ) |
