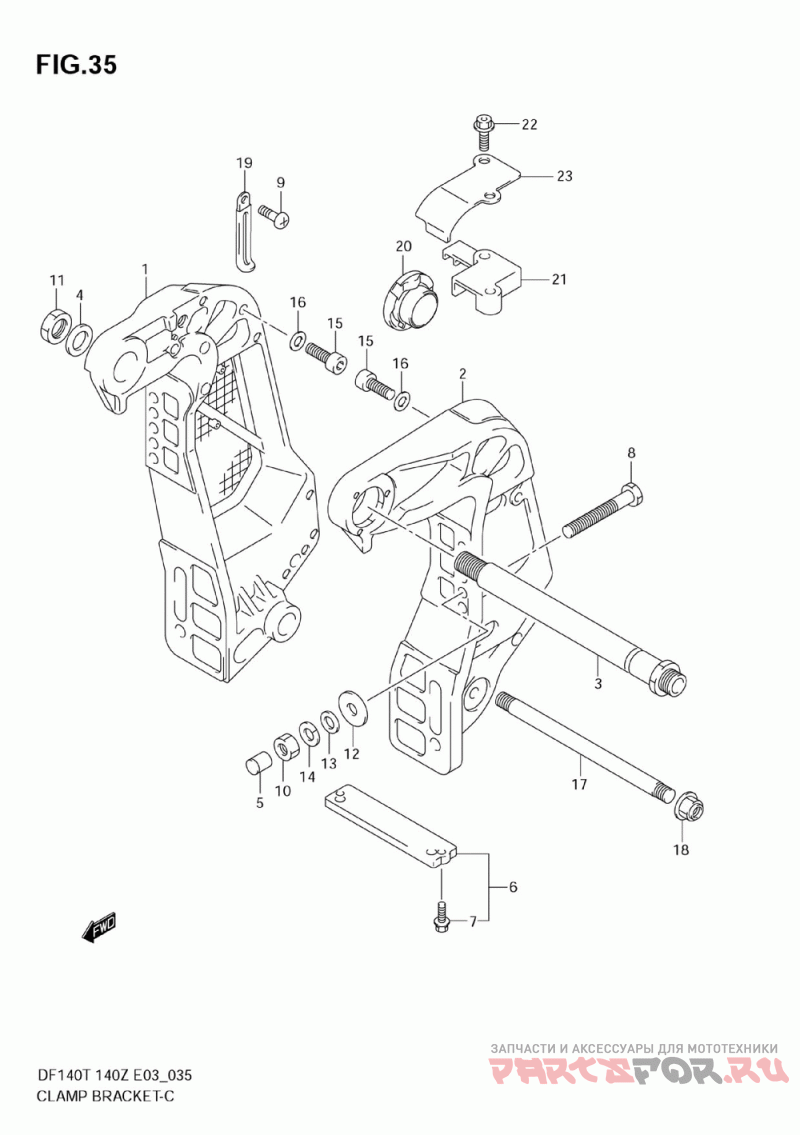

Кронштейн транца
Suzuki Marine DF140T,Z
| # | oem код | название | цена |
|---|---|---|---|
1 | 41111-92J02-0EP Bracket, Clamp S ( ) | Bracket, Clamp S ( ) | |
2 | 41121-92J04-0EP Bracket, Clamp P ( ) | Bracket, Clamp P ( ) | |
3-1 | 41130-95541 Shaft, Clamp Bra ( ) | Shaft, Clamp Bra ( ) | |
3-2 | 41130-95543 Shaft Comp, Clam (model:04, 05 ) | Shaft Comp, Clam (model:04, 05 ) | |
3-4 | 41130-92J00 Shaft Comp, Clam (df140t:682149~ Df140z:680234~ ) | Shaft Comp, Clam (df140t:682149~ Df140z:680234~ ) | |
4 | 41135-92J00 Washer, Clamp B ( ) | Washer, Clamp B ( ) | |
5 | 41153-94500 Cap Transom Bol ( ) | Cap Transom Bol ( ) | |
6 | 55320-94900 Anode Set ( ) | Anode Set ( ) | |
7 | 09116-06121 .bolt (6x25) ( ) | .bolt (6x25) ( ) | |
8-1 | 09100-12090 Bolt (12x150, Pitch:1.25) (->09100-12090 Used W/09159-12014 ) | Bolt (12x150, Pitch:1.25) (->09100-12090 Used W/09159-12014 ) | |
8-3 | 09100-12091 Bolt, 12x115, Pit (opt Used W/09159-12014 ) | Bolt, 12x115, Pit (opt Used W/09159-12014 ) | |
9 | 09125-06063 Screw (6x10) ( ) | Screw (6x10) ( ) | |
10-1 | 09140-12028 Nut (m12, Pitch:1.75) ( ) | Nut (m12, Pitch:1.75) ( ) | |
10-2 | 09159-12014 Nut (df140t:511173~ Df140z:510166~ ) | Nut (df140t:511173~ Df140z:510166~ ) | |
11 | 09159-22006 Nut ( ) | Nut ( ) | |
12 | 09160-12044 Washer (12.5x35x3.2) ( ) | Washer (12.5x35x3.2) ( ) | |
13-1 | 09160-12066 .washer (12.5x22x2.5) ( ) | .washer (12.5x22x2.5) ( ) | |
13-2 | 09160-12110 Washer (12.5x22x3) (df140t:511173~ Df140z:510166~ ) | Washer (12.5x22x3) (df140t:511173~ Df140z:510166~ ) | |
14 | 09162-12005 .washer, Lock (df140t:~511172 Df140z:~510165 ) | .washer, Lock (df140t:~511172 Df140z:~510165 ) | |
15 | 09106-10065 Bolt (10x20) ( ) | Bolt (10x20) ( ) | |
16 | 29160-93J00 Washer (<-09160-10082 ) | Washer (<-09160-10082 ) | |
17 | 45421-87D01 Pin, Tilt Lock ( ) | Pin, Tilt Lock ( ) | |
18 | 09159-14020 Nut ( ) | Nut ( ) | |
19 | 29404-93J10 Clamp (<-09404-06432 ) | Clamp (<-09404-06432 ) | |
20 | 48140-93J00 Cam Assy, Tilt L (model:04~09 ) | Cam Assy, Tilt L (model:04~09 ) | |
21 | 48144-93J00 Holder, Tilt Lim (model:04~09 ) | Holder, Tilt Lim (model:04~09 ) | |
22-1 | 01550-06207 Bolt (model:04, 05 ) | Bolt (model:04, 05 ) | |
22-2 | 09103-06278 Bolt (6x25) (df140t:514980~ Df140z:510527~ ) | Bolt (6x25) (df140t:514980~ Df140z:510527~ ) | |
23 | 48145-93J00 Cover, Tilt Limi (df140t:514980~ Df140z:510527~ ) | Cover, Tilt Limi (df140t:514980~ Df140z:510527~ ) |
