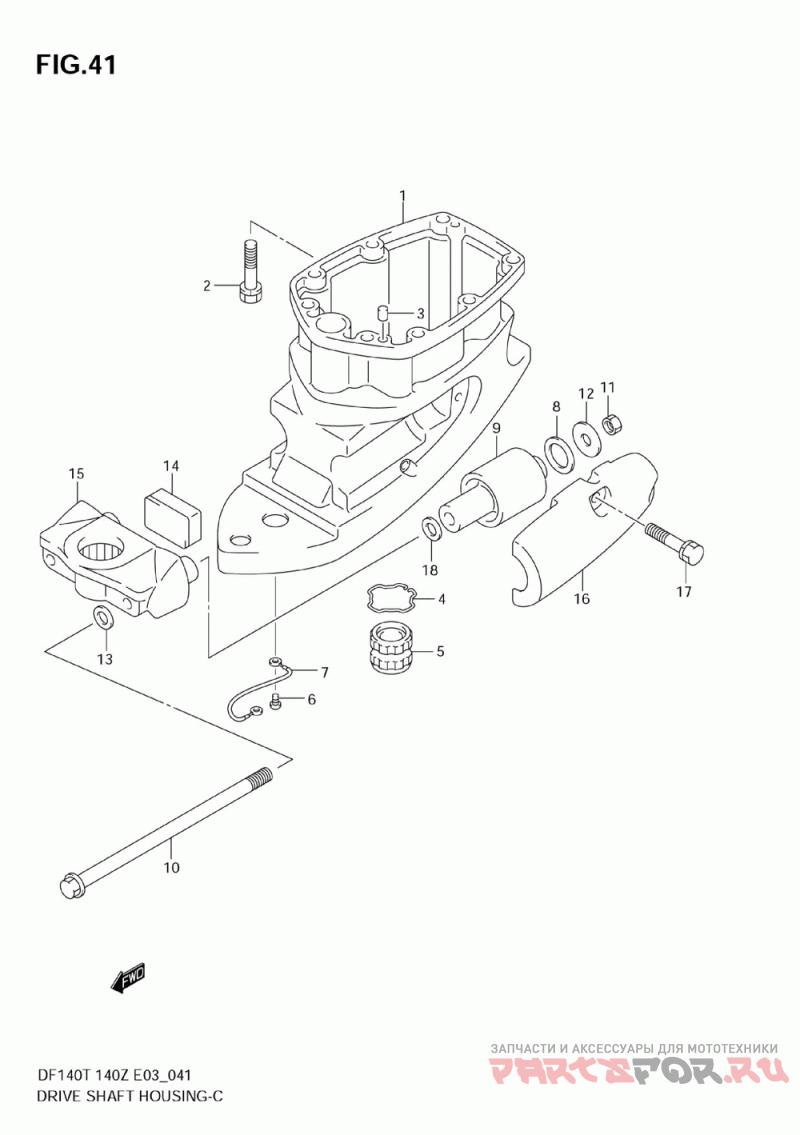

Корпус ведущего вала (нога)
Suzuki Marine DF140T,Z
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 52111-90J02-0EP Housing, Drive S (type:t (black) ) | Housing, Drive S (type:t (black) ) | |
1-2 | 52111-90J12-0EP Housing, Drive S (type:t, Z (black) ) | Housing, Drive S (type:t, Z (black) ) | |
2-1 | 09117-10058 Bolt (10x45) ( ) | Bolt (10x45) ( ) | |
3 | 09202-08006 Pin ( ) | Pin ( ) | |
4 | 09387-45001 Set Ring (sus) (type:t, Z ) | Set Ring (sus) (type:t, Z ) | |
5 | 57130-92J00 Bush, Drive Sha (type:t,z ) | Bush, Drive Sha (type:t,z ) | |
6 | 09125-06063 Screw (6x10) ( ) | Screw (6x10) ( ) | |
7-1 | 36895-87D01 Lead, Swivel To ( ) | Lead, Swivel To ( ) | |
7-2 | 36895-87D10 Lead Swivel (df140t:682149~ Df140z:680234~ ) | Lead Swivel (df140t:682149~ Df140z:680234~ ) | |
8 | 54121-87D00 Stopper, Upper T ( ) | Stopper, Upper T ( ) | |
9 | 54160-90J20 Mount Assy, Lowe ( ) | Mount Assy, Lowe ( ) | |
10-1 | 54166-90J10 Bolt, Lower Moun (<-09100-12079 ) | Bolt, Lower Moun (<-09100-12079 ) | |
10-2 | 54166-90J11 Bolt, Lower Moun (model:08~09 ) | Bolt, Lower Moun (model:08~09 ) | |
11 | 09159-12014 Nut ( ) | Nut ( ) | |
12 | 09160-12112 Washer (12x40x3.0) (<-09160-12065 ) | Washer (12x40x3.0) (<-09160-12065 ) | |
13 | 54114-90J01 Washer, Lwr Mt B (<-09160-12066 ) | Washer, Lwr Mt B (<-09160-12066 ) | |
14 | 54151-90J00 Mount, Lower Thr ( ) | Mount, Lower Thr ( ) | |
15 | 54211-90J01-0EP Bracket, Lower M ( ) | Bracket, Lower M ( ) | |
16 | 54221-90J02-0EP Cover, Lower Mou ( ) | Cover, Lower Mou ( ) | |
18 | 09160-12113 Washer (12.5x30x2.5) (<-09160-12098 ) | Washer (12.5x30x2.5) (<-09160-12098 ) |
