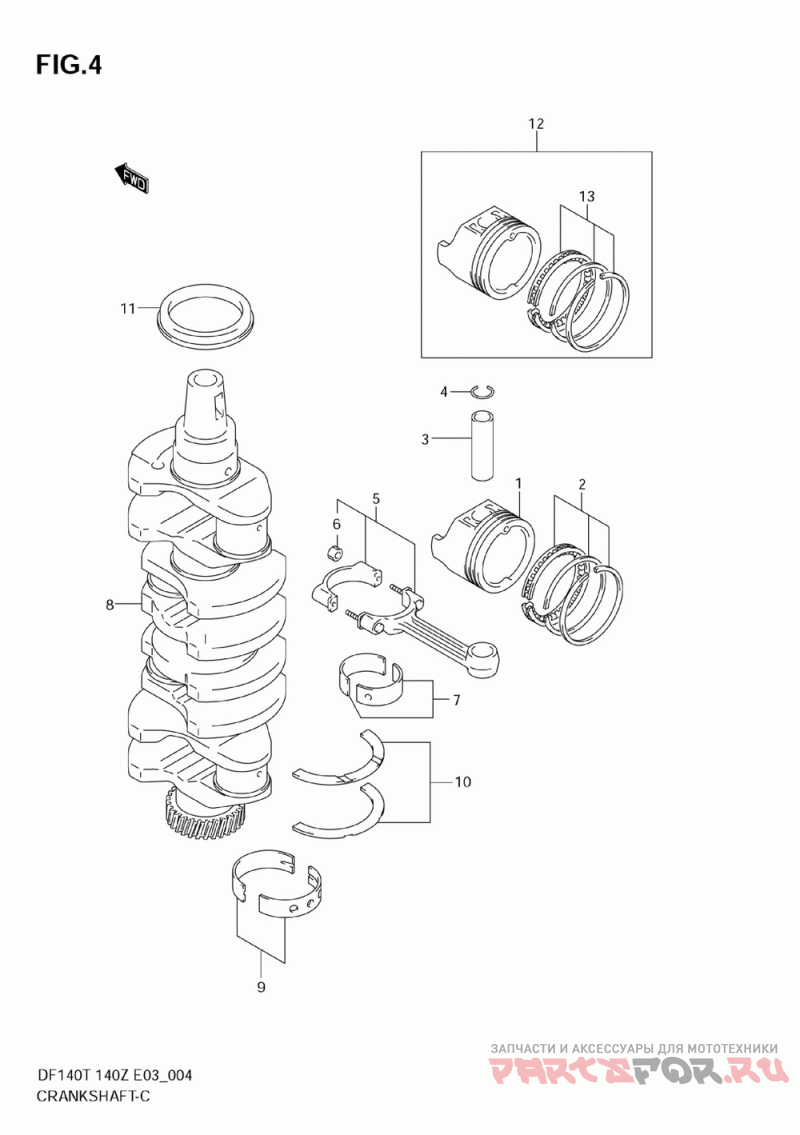

Коленвал
Suzuki Marine DF140T,Z
| # | oem код | название | цена |
|---|---|---|---|
1 | 12111-92J00 Деталь Piston ( ) | Деталь Piston ( ) | |
2-1 | 12140-92J01 Деталь Ring Set, Piston ( ) | Деталь Ring Set, Piston ( ) | |
3 | 12151-86FA0 Деталь Pin, Piston ( ) | Деталь Pin, Piston ( ) | |
4 | 09381-21002 Деталь Circlip ( ) | Деталь Circlip ( ) | |
5 | 12160-92J00 Деталь Connrod Assy ( ) | Деталь Connrod Assy ( ) | |
6 | 09159-08121 Деталь Nut ( ) | Деталь Nut ( ) | |
7-1 | 12100-92841-0A0 Деталь Bearing Set, Con ( ) | Деталь Bearing Set, Con ( ) | |
7-2 | 12100-92840-025 Деталь Bearing Set, Con (opt ) | Деталь Bearing Set, Con (opt ) | |
8 | 12220-92J00 Деталь Crankshaft ( ) | Деталь Crankshaft ( ) | |
9-1 | 12340-85FB3-0A0 Деталь Bearing Set, Cra (green ) | Деталь Bearing Set, Cra (green ) | |
9-2 | 12340-85FB3-0B0 Деталь Bearing Set, Cra (black ) | Деталь Bearing Set, Cra (black ) | |
9-3 | 12340-85FB3-0C0 Деталь Bearing Set, Cra (non Color ) | Деталь Bearing Set, Cra (non Color ) | |
9-4 | 12340-85FB3-0D0 Деталь Bearing Set, Cra (yellow ) | Деталь Bearing Set, Cra (yellow ) | |
9-5 | 12340-85FB3-0E0 Деталь Bearing Set, Cra (blue ) | Деталь Bearing Set, Cra (blue ) | |
9-6 | 12300-85854-0AA Деталь Bearing Set, Cra (opt (us:0.25) ) | Деталь Bearing Set, Cra (opt (us:0.25) ) | |
9-7 | 12300-85854-0BA Деталь Bearing Set, Cra (opt (us:0.25) ) | Деталь Bearing Set, Cra (opt (us:0.25) ) | |
9-8 | 12300-85854-0CA Деталь Bearing Set, Cra (opt (us:0.25) ) | Деталь Bearing Set, Cra (opt (us:0.25) ) | |
9-9 | 12300-85854-0DA Деталь Bearing Set, Cra (opt (us:0.25) ) | Деталь Bearing Set, Cra (opt (us:0.25) ) | |
9-10 | 12300-85854-0EA Деталь Bearing Set, Cra (opt (us:0.25) ) | Деталь Bearing Set, Cra (opt (us:0.25) ) | |
10-1 | 12300-85830 Деталь Bearing Set, Cra ( ) | Деталь Bearing Set, Cra ( ) | |
10-2 | 12300-85830-012 Деталь Bearing Set, Cra (opt (os:0.12) ) | Деталь Bearing Set, Cra (opt (os:0.12) ) | |
11 | 09283-52004 Деталь Seal, Oil ( ) | Деталь Seal, Oil ( ) | |
12-1 | 12100-92J01-050 Деталь Piston Set (os: (opt ) | Деталь Piston Set (os: (opt ) | |
13-1 | 12140-92J01-050 Деталь Ring Set, Piston (opt ) | Деталь Ring Set, Piston (opt ) |
